Deutz F3L514 51

Deutz F3L514 51

Complete specifications and technical data for the Deutz F3L514 51. Compare with similar tractors from Deutz and other manufacturers.

Quick Specs

Engine Power Output

41hp

Operating Weight

5,512 lb

Transmission

Gear

The Deutz F3L514 51 is a sturdy 2WD tractor built for farm work. It has a manual steering system and a gear transmission with 5 forward gears and 1 reverse gear. This setup gives the driver good contr...

Photo Gallery

Image Gallery

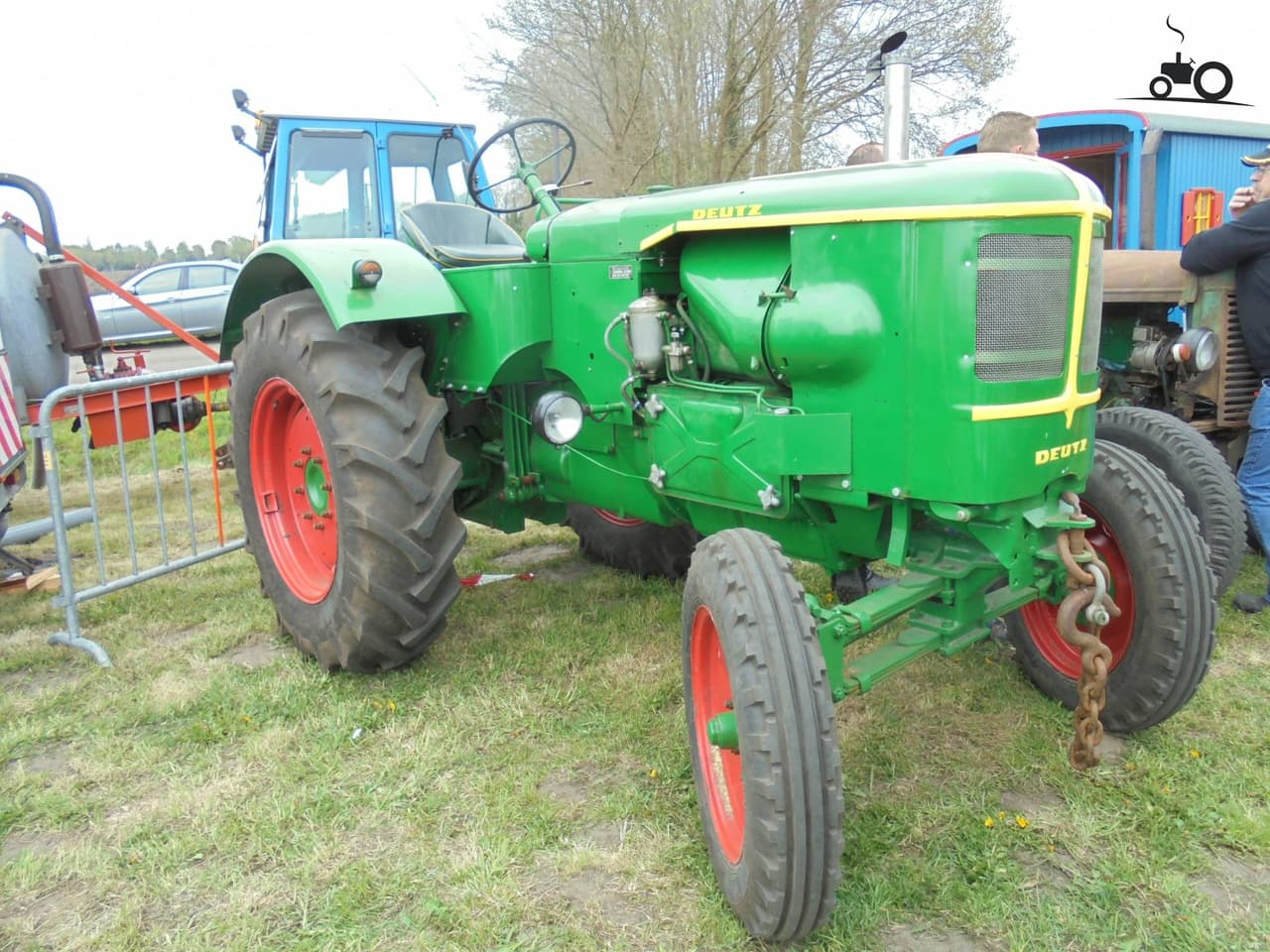

Deutz F3L514 51 Tractor
Deutz F3L514 51 Tractor
Deutz F3L514 51 Tractor
Deutz F3L514 51 Tractor

Specifications

Manufacturer
Deutz
Model
F3L514 51
Manufacturer
Deutz
Power Output
41.4hp
Rated RPM
1,450RPM
Cylinders
3
Displacement
243.5ci
Bore
4.33in
Stroke
5.51in
Type
Gear
Length
131.5in
Width
69.5in
Height
72.8in
Operating Weight
5,512lb
Front Tread Width
6in
Rear Tread
13in
Adjustable Tread
No
Chassis Type
4x2 2WD
Drive Type
2WD
Steering Type
Manual

Compare to Other Tractors

Commonly compared Deutz tractors

TractorEngine PowerOperating WeightYearsCompare
Deutz D 450540 hp4,233 lb1965–1967Compare →
Deutz D 450643.15 hp5,230 lbCompare →
Deutz 45045 hp4,630 lbCompare →
Deutz D 500545 hp4,630 lbCompare →
Deutz D 400535 hp3,924 lbCompare →

Commonly compared tractors with similar horsepower from other brands

TractorEngine PowerOperating WeightYearsCompare
Allis Chalmers ED4041 hp3,527 lbCompare →
AGCO ST4040.1 hp3,323 lbCompare →
AGCO ST41A40.1 hp3,000 lbCompare →
Advance-Rumely OilPull K 12/2040 hp6,430 lbCompare →
Allis Chalmers 16040 hp4,674 lb1970–1975Compare →

Frequently Asked Questions

What is the engine power output of the Deutz F3L514 51?

The Deutz F3L514 51 has an engine power output of 41.4 hp.

How many cylinders does the Deutz F3L514 51 have?

The Deutz F3L514 51 is equipped with a 3-cylinder engine.

What is the operating weight of the Deutz F3L514 51?

The operating weight of the Deutz F3L514 51 is approximately 5,512 lb.

What type of transmission does the Deutz F3L514 51 have?

The Deutz F3L514 51 is equipped with a Gear transmission.

What maintenance does the Deutz F3L514 51 require?

Regular maintenance for the Deutz F3L514 51 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
