Same brandDeutz-Fahr 7230 TTV
The Deutz-Fahr 7230 TTV is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that puts out 204 horsepower, which is very high for its class. The engine is turbocharged and intercooled, giving it extra power when needed. This tractor is designed to handle tough jobs with its 4-wheel drive system and power steering. At 20,062 pounds, the 7230 TTV is a heavy-duty machine that can tackle big tasks. It has a comfortable cab for the driver and uses a load-sensing hydraulic system for efficient operation. The tractor is about 16 feet long, 8 feet wide, and 10 feet tall, making it suitable for most farm operations. It comes with agricultural tires and a category III/II rear hitch for attaching various implements. The Deutz-Fahr 7230 TTV is a reliable choice for farmers who need a strong, versatile tractor for their daily work.

Key specifications
- Category
- Row Crop
- Engine power
- 204hp
- Operating weight
- 20,062 lb
Category comparison
7230 TTV compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
This model
The 7230 TTV ranks at the 77th percentile for engine power among recorded row crop tractors.
Overview
About the Deutz-Fahr 7230 TTV
The Deutz-Fahr 7230 TTV is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that puts out 204 horsepower, which is very high for its class. The engine is turbocharged and intercooled, giving it extra power when needed. This tractor is designed to handle tough jobs with its 4-wheel drive system and power steering. At 20,062 pounds, the 7230 TTV is a heavy-duty machine that can tackle big tasks. It has a comfortable cab for the driver and uses a load-sensing hydraulic system for efficient operation. The tractor is about 16 feet long, 8 feet wide, and 10 feet tall, making it suitable for most farm operations. It comes with agricultural tires and a category III/II rear hitch for attaching various implements. The Deutz-Fahr 7230 TTV is a reliable choice for farmers who need a strong, versatile tractor for their daily work.
Full specifications
Recorded specifications
General
| Manufacturer | Deutz-Fahr |
|---|---|
| Model | 7230 TTV |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 20,062lb(9,100 kg) |
Engine
| Make | Deutz-Fahr |
|---|---|
| Model | TCD 6.1 L06 4V |
| Power | 204hp(152.1 kW) |
| Cylinders | 6 |
| Displacement | 369.6ci(6.06 L) |
| Bore | 3.98in(101.1 mm) |
| Stroke | 4.96in(126 mm) |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power Steering |
| Cab | Cab |
Hydraulics
| Type | Load Sensing |
|---|
Dimensions
| Length | 195.8in(4,973 mm) |
|---|---|
| Width | 98.4in(2,499 mm) |
| Height | 124.1in(3,152 mm) |
| Operating weight | 20,062lb(9,100 kg) |
Closest alternatives
7230 TTV compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the 7230 TTV are the McCormick Intl MTX200 and the John Deere 8R 230. The McCormick Intl MTX200 matches it on rated power and weighs 3,060 lb less, carrying 83 lb per horsepower against 98 lb. The John Deere 8R 230 matches it on rated power and weighs 7,720 lb more, so it carries more weight per horsepower, which helps traction in draft work.
| Spec | Deutz-Fahr 7230 TTV | McCormick Intl MTX200 | John Deere 8R 230 |
|---|---|---|---|
| Engine power | 204 hp152.1 kW | 204 hp152.1 kW | 204 hp152.1 kW |
| Operating weight | 20,062 lb9,100 kg | 17,000 lb7,711 kg | 27,785 lb12,603 kg |
| Weight per hp | 98 lb/hp60 kg/kW | 83 lb/hp51 kg/kW | 136 lb/hp83 kg/kW |
| Displacement | 369.6 ci6.06 L | 359 ci5.88 L | 548 ci8.98 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | - | Powershift | Selective gear fixed ratio with full range operator-controlled power shift |
| Drive | 4WD | 4WD | MFWD (Mechanical Front Wheel Drive) - 4WD |
Calculators
Calculators for the 7230 TTV
PTO power
About 169 to 184 PTO hp
Estimated from the 204 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 204 hp tractor can run
Maximum size is about a 24 ft rotary cutter or a 20.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
114 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
204 hp is 152.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Deutz-Fahr 7230 TTV
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Deutz-Fahr TCD 6.1 L06 4VAmazon
Fits the Deutz-Fahr TCD 6.1 L06 4V 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Deutz-Fahr TCD 6.1 L06 4VAmazon
Fits the Deutz-Fahr TCD 6.1 L06 4V 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Deutz-Fahr TCD 6.1 L06 4VAmazon
Fits the Deutz-Fahr TCD 6.1 L06 4V 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Deutz-Fahr TCD 6.1 L06 4VAmazon
Fits the Deutz-Fahr TCD 6.1 L06 4V 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Deutz-Fahr 7230 TTV service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Deutz-Fahr 7230 TTV operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Deutz-Fahr 7230 TTV service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
7230 TTV vs. Row Crop median
Deutz-Fahr 7230 TTV compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 204 hp | 138 hp | +48% | 77th |
| Engine Displacement | 370 ci | 391 ci | -5% | 46th |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 20,062 lb | 12,307 lb | +63% | 84th |
| Length | 196 in | 180 in | +9% | 69th |
| Width | 98.4 in | 91.2 in | +8% | 80th |
| Height | 124 in | 114 in | +9% | 83rd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Deutz-Fahr models
Other manufacturers
Models with similar horsepower
Gallery

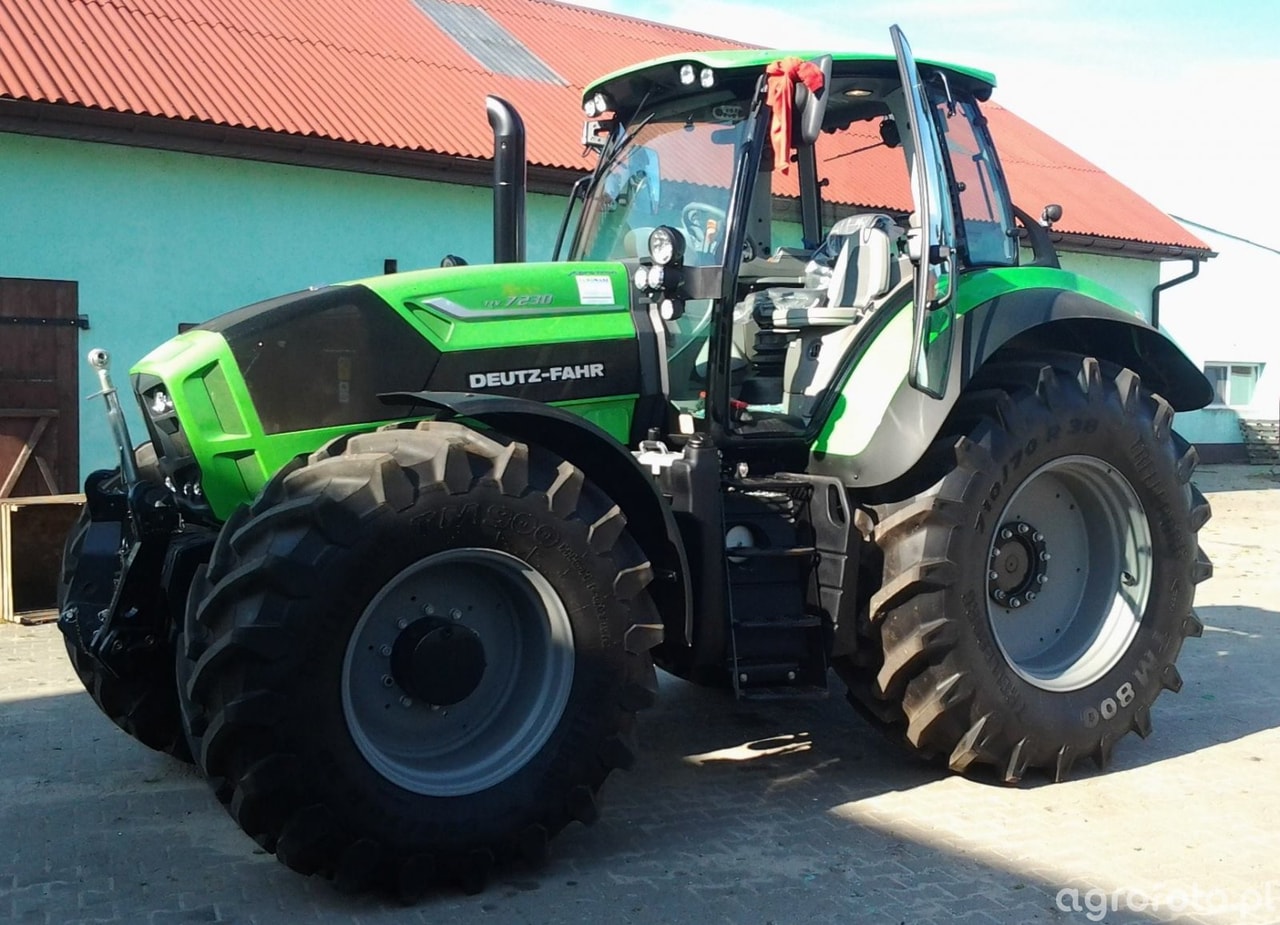

Deutz-Fahr 7230 TTV photos




FAQ
Frequently asked questions
What is the engine power output of the Deutz-Fahr 7230 TTV?
Rated engine output for the Deutz-Fahr 7230 TTV is 204 hp, delivered by a 6-cylinder engine. The engine displaces 369.6 ci.
What hydraulics does the Deutz-Fahr 7230 TTV have?
The Deutz-Fahr 7230 TTV uses a Load Sensing hydraulic system.
What three-point hitch category does the Deutz-Fahr 7230 TTV use?
The Deutz-Fahr 7230 TTV has a Category III/II three-point hitch.
What is the operating weight of the Deutz-Fahr 7230 TTV?
The Deutz-Fahr 7230 TTV has an operating weight of about 20,062 lb.
How do I maintain a Deutz-Fahr 7230 TTV?
Routine service for the Deutz-Fahr 7230 TTV covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
