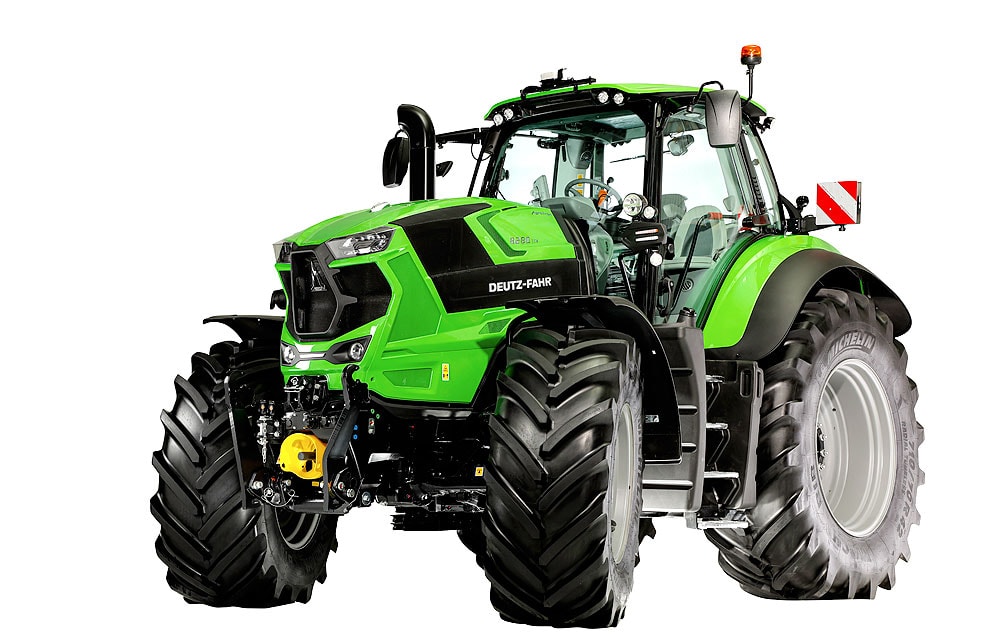

Deutz-Fahr 8280 TTV
The Deutz-Fahr 8280 TTV is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by Deutz. This engine can produce 287 horsepower, which is very high compared to other tractors. The tractor uses a special transmission that can change speeds smoothly without shifting gears. This tractor is big and heavy, weighing 20,944 pounds. It's also quite tall at 129.9 inches. The 8280 TTV has four-wheel drive, which helps it move well in tough conditions. It has power steering to make it easier to control. The tractor uses standard agricultural tires, with big rear tires that are 38 inches tall. Farmers can choose even bigger tires if they need them. The Deutz-Fahr 8280 TTV has some nice features for comfort and work. It has a closed center hydraulic system, which is good for using attachments. The engine size is about average for tractors, but it runs at a lower speed than many others. This can help save fuel. Overall, this tractor is a strong choice for farmers who need a lot of power and modern features in their equipment.

Key specifications
- Category
- Row Crop
- Engine power
- 287hp
- Operating weight
- 20,944 lb
- Transmission
- Continuously-variable transmission
Category comparison
8280 TTV compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
This model
The 8280 TTV ranks at the 92nd percentile for engine power among recorded row crop tractors.
Overview
About the Deutz-Fahr 8280 TTV
The Deutz-Fahr 8280 TTV is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by Deutz. This engine can produce 287 horsepower, which is very high compared to other tractors. The tractor uses a special transmission that can change speeds smoothly without shifting gears. This tractor is big and heavy, weighing 20,944 pounds. It's also quite tall at 129.9 inches. The 8280 TTV has four-wheel drive, which helps it move well in tough conditions. It has power steering to make it easier to control. The tractor uses standard agricultural tires, with big rear tires that are 38 inches tall. Farmers can choose even bigger tires if they need them. The Deutz-Fahr 8280 TTV has some nice features for comfort and work. It has a closed center hydraulic system, which is good for using attachments. The engine size is about average for tractors, but it runs at a lower speed than many others. This can help save fuel. Overall, this tractor is a strong choice for farmers who need a lot of power and modern features in their equipment.
Full specifications
Recorded specifications
General
| Manufacturer | Deutz-Fahr |
|---|---|
| Model | 8280 TTV |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 20,944lb(9,500 kg) |
Engine
| Make | Deutz |
|---|---|
| Model | TTCD 6.4 L4 |
| Power | 287hp(214 kW) |
| Cylinders | 6 |
| Displacement | 369.7ci(6.06 L) |
| Bore | 3.98in(101.1 mm) |
| Stroke | 4.96in(126 mm) |
Transmission
| Type | Continuously-variable transmission |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Closed center |
|---|
Dimensions
| Length | 200.8in(5,100 mm) |
|---|---|
| Width | 100.4in(2,550 mm) |
| Height | 129.9in(3,299 mm) |
| Operating weight | 20,944lb(9,500 kg) |
Closest alternatives
8280 TTV compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the 8280 TTV are the CaseIH MX285 Magnum and the Fendt 926 Vario. The CaseIH MX285 Magnum matches it on rated power and weighs 690 lb more. The Fendt 926 Vario makes 1 hp less and weighs 1,540 lb less.
| Spec | Deutz-Fahr 8280 TTV | CaseIH MX285 Magnum | Fendt 926 Vario |
|---|---|---|---|
| Engine power | 287 hp214 kW | 287 hp214 kW | 286 hp213.3 kW |
| Operating weight | 20,944 lb9,500 kg | 21,630 lb9,811 kg | 19,401 lb8,800 kg |
| Weight per hp | 73 lb/hp44 kg/kW | 75 lb/hp46 kg/kW | 68 lb/hp41 kg/kW |
| Displacement | 369.7 ci6.06 L | 504.5 ci8.27 L | 419.2 ci6.87 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Continuously-variable transmission | Full power shift | Continuously-variable transmission |
| Drive | 4WD | 4WD | 4WD |
Calculators
Calculators for the 8280 TTV
PTO power
About 238 to 258 PTO hp
Estimated from the 287 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 287 hp tractor can run
Maximum size is about a 34 ft rotary cutter or a 29 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
85 lb per PTO hp as listed
Heavy draft work calls for 110 to 125 lb/hp. The calculator gives the ballast to add.
Units
287 hp is 214.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Deutz-Fahr 8280 TTV
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Deutz TTCD 6.4 L4Amazon
Fits the Deutz TTCD 6.4 L4 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Deutz TTCD 6.4 L4Amazon
Fits the Deutz TTCD 6.4 L4 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Deutz TTCD 6.4 L4Amazon
Fits the Deutz TTCD 6.4 L4 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Deutz TTCD 6.4 L4Amazon
Fits the Deutz TTCD 6.4 L4 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Deutz-Fahr 8280 TTV service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Deutz-Fahr 8280 TTV operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Deutz-Fahr 8280 TTV service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
8280 TTV vs. Row Crop median
Deutz-Fahr 8280 TTV compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 287 hp | 138 hp | +108% | 92nd |
| Engine Displacement | 370 ci | 391 ci | -5% | 47th |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 20,944 lb | 12,307 lb | +70% | 86th |
| Length | 201 in | 180 in | +12% | 75th |
| Width | 100 in | 91.2 in | +10% | 86th |
| Height | 130 in | 114 in | +14% | 90th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Deutz-Fahr models
Other manufacturers
Models with similar horsepower
Gallery
Deutz-Fahr 8280 TTV photos




FAQ
Frequently asked questions
How powerful is the Deutz-Fahr 8280 TTV?
The Deutz-Fahr 8280 TTV has an engine power output of 287 hp. It is powered by a 6-cylinder engine displacing 369.7 ci.
What hydraulics does the Deutz-Fahr 8280 TTV have?
The Deutz-Fahr 8280 TTV uses a Closed center hydraulic system.
What is the working weight of the Deutz-Fahr 8280 TTV?
The operating weight of the Deutz-Fahr 8280 TTV is approximately 20,944 lb.
What type of transmission does the Deutz-Fahr 8280 TTV have?
The Deutz-Fahr 8280 TTV uses a Continuously-variable transmission transmission.
What routine service does the Deutz-Fahr 8280 TTV need?
Regular maintenance for the Deutz-Fahr 8280 TTV includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
