AgriculturalPerformance profile
Farmall 1026
The Farmall 1026 is a powerful tractor designed for serious farm work. It features a robust 6-cylinder diesel engine made by International Harvester. This engine, called the DT-407, is turbocharged and liquid-cooled. It can produce an impressive 127 horsepower at 2400 RPM, making it suitable for demanding tasks. One of the standout features of the Farmall 1026 is its hydrostatic transmission. This system offers infinite forward and reverse speeds in two ranges, giving the operator precise control over the tractor's movement. The tractor is equipped with a Category II hitch at the rear and a 1000 RPM PTO, allowing it to work with a wide range of farm implements. It has an open center hydraulic system and an open operator station. The Farmall 1026 is a hefty machine, weighing 11,100 pounds and measuring 166 inches in length. It also boasts a 105-inch wheelbase, providing stability during operation.
ManufacturerFarmallPower127 hpEngine6-cylTransHydrostatic
Quick specs
- Category
- Agricultural
- Engine Power Output
- 127hp
- Operating Weight
- 11,100 lb
- Transmission
- Hydrostatic
At a glance
How the 1026 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
127 hp · 59th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 1026 ranks at the 59th percentile for engine power among recorded agricultural tractors.
Overview
About the Farmall 1026
The Farmall 1026 is a powerful tractor designed for serious farm work. It features a robust 6-cylinder diesel engine made by International Harvester. This engine, called the DT-407, is turbocharged and liquid-cooled. It can produce an impressive 127 horsepower at 2400 RPM, making it suitable for demanding tasks. One of the standout features of the Farmall 1026 is its hydrostatic transmission. This system offers infinite forward and reverse speeds in two ranges, giving the operator precise control over the tractor's movement. The tractor is equipped with a Category II hitch at the rear and a 1000 RPM PTO, allowing it to work with a wide range of farm implements. It has an open center hydraulic system and an open operator station. The Farmall 1026 is a hefty machine, weighing 11,100 pounds and measuring 166 inches in length. It also boasts a 105-inch wheelbase, providing stability during operation.
Full specifications
Every recorded spec
General
| Manufacturer | Farmall |
|---|---|
| Model | 1026 |
| Category | Agricultural tractor |
| Operating weight | 11,100lb |
Engine
| Make | International Harvester |
|---|---|
| Model | DT-407 |
| Power | 127hp |
| Cylinders | 6 |
| Displacement | 406.9ci |
| Bore | 4.32in |
| Stroke | 4.63in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Cab | Open |
|---|
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | 1000 RPM |
|---|
Dimensions
| Length | 166in |
|---|---|
| Operating weight | 11,100lb |
Capacities
| Cooling system | 6gal |
|---|
Head to head
1026 vs. Agricultural median
How the Farmall 1026 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 127 hp | 110 hp | +15% | 59th |
| Engine Displacement | 407 ci | 336 ci | +21% | 68th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Operating Weight | 11,100 lb | 10,914 lb | +2% | 51st |
| Length | 166 in | 173 in | -4% | 45th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 829–1,130 models).
Compare to tractors with similar specs
Commonly compared Farmall tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Farmall 1456 | 130 hp | 12,800 lb | 1969–1971 | Compare → |
| Farmall 1256 | 113 hp | 10,405 lb | 1967–1969 | Compare → |
| Farmall 1206 | 110 hp | 10,115 lb | 1965–1967 | Compare → |
| Farmall 1468 | 145 hp | 11,850 lb | 1971–1974 | Compare → |
| Farmall 1066 | 108 hp | 12,150 lb | 1971–1976 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers HD11AG Series B | 126.5 hp | 25,000 lb | — | Compare → |
| AGCO RT100 | 128 hp | 15,055 lb | — | Compare → |
| Allis Chalmers HD11AG | 130 hp | 23,000 lb | — | Compare → |
| Belarus 1221 | 130 hp | 10,230 lb | — | Compare → |
| Belarus 1221 MIG | 130 hp | 11,350 lb | — | Compare → |
Explore
Farmall siblings
Explore
Similar-spec models
Gallery

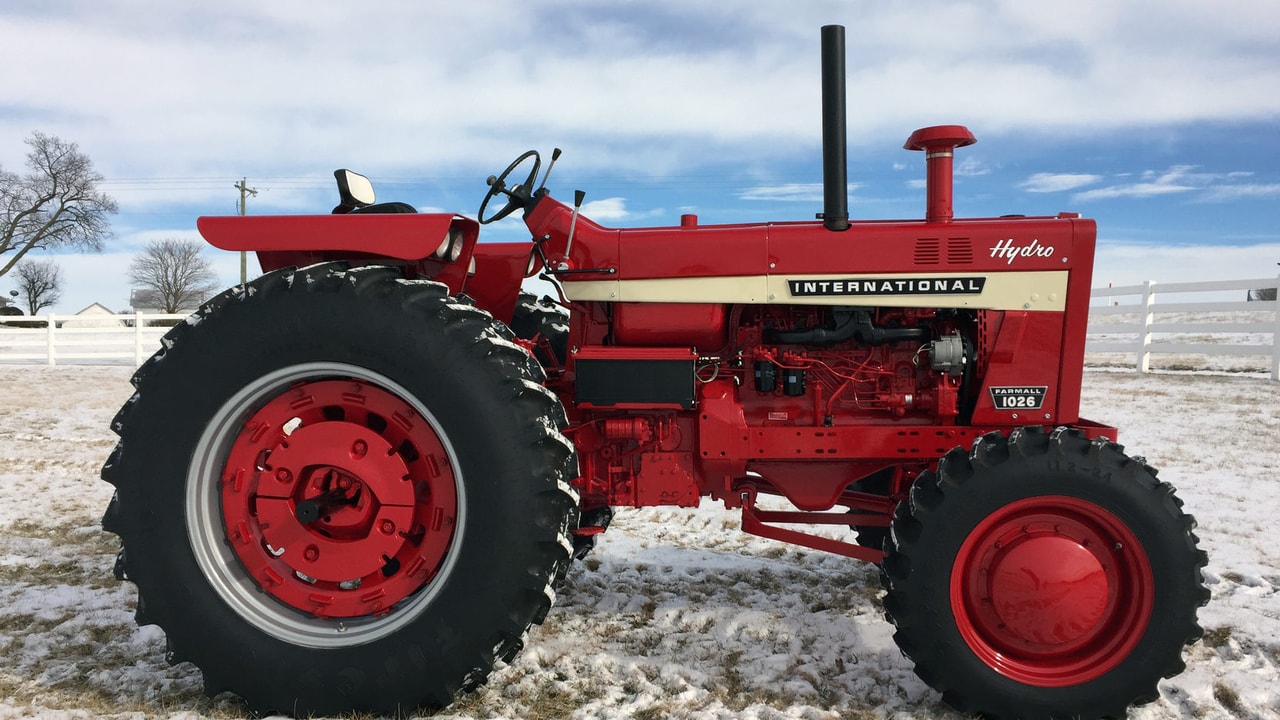

Farmall 1026 photos
FAQ
Common questions
What is the engine power output of the Farmall 1026?
Rated engine output for the Farmall 1026 is 127 hp, delivered by a 6-cylinder engine. The engine displaces 406.9 ci.
Which transmission does the Farmall 1026 use?
The Farmall 1026 is equipped with a Hydrostatic transmission.
What type of hydraulic system does the Farmall 1026 use?
Hydraulics on the Farmall 1026 are Open Center.
What is the operating weight of the Farmall 1026?
In working trim, the Farmall 1026 comes in at roughly 11,100 lb.
How do I maintain a Farmall 1026?
Routine service for the Farmall 1026 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
