Farmtrac 555
The Farmtrac 555 is a utility tractor built for everyday farm work. It has a 2-wheel drive system and a constant mesh transmission with 8 forward gears and 2 reverse gears. This gives the driver good control over the tractor's speed and power. Under the hood, the Farmtrac 555 has a 3-cylinder diesel engine that's liquid-cooled. The engine has an average displacement of 192 cubic inches and produces 50 horsepower, which is about average for tractors in its class. It weighs 4,510 pounds, making it a mid-sized tractor that's sturdy enough for most farm tasks. The tractor is 129 inches long, 76 inches wide, and 86 inches tall, so it can fit in many farm buildings and work in tight spaces. It has agricultural tires on both the front and rear, giving it good traction in fields.
ManufacturerFarmtracPower50 hp(37.3 kW)Class40–60 HP tractors →Engine3-cylinderTransmissionConstant mesh
Key specifications
- Category
- Utility
- Engine power
- 50hp
- Operating weight
- 4,510 lb
- Transmission
- Constant mesh
Category comparison
555 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
50 hp · 45th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 555 ranks at the 45th percentile for engine power among recorded utility tractors.
Overview
About the Farmtrac 555
The Farmtrac 555 is a utility tractor built for everyday farm work. It has a 2-wheel drive system and a constant mesh transmission with 8 forward gears and 2 reverse gears. This gives the driver good control over the tractor's speed and power. Under the hood, the Farmtrac 555 has a 3-cylinder diesel engine that's liquid-cooled. The engine has an average displacement of 192 cubic inches and produces 50 horsepower, which is about average for tractors in its class. It weighs 4,510 pounds, making it a mid-sized tractor that's sturdy enough for most farm tasks. The tractor is 129 inches long, 76 inches wide, and 86 inches tall, so it can fit in many farm buildings and work in tight spaces. It has agricultural tires on both the front and rear, giving it good traction in fields.
Full specifications
Recorded specifications
General
| Manufacturer | Farmtrac |
|---|---|
| Model | 555 |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 4,510lb(2,046 kg) |
Engine
| Power | 50hp(37.28 kW) |
|---|---|
| Cylinders | 3 |
| Displacement | 192ci(3.15 L) |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 129in(3,277 mm) |
|---|---|
| Width | 76in(1,930 mm) |
| Height | 86in(2,184 mm) |
| Operating weight | 4,510lb(2,046 kg) |
Closest alternatives
555 compared with the nearest models by horsepower
Among utility tractors, the New Holland Boomer 50 (2017-) and the John Deere 5045E (2015-) are closest to the Farmtrac 555 in rated horsepower. The New Holland Boomer 50 (2017-) matches it on rated power and weighs 1,090 lb less, carrying 68 lb per horsepower against 90 lb. The John Deere 5045E (2015-) matches it on rated power and weighs 100 lb less. Of the 3 models, the 555 has the highest weight per horsepower at 90 lb per hp.
| Spec | Farmtrac 555 | New Holland Boomer 50 (2017-) | John Deere 5045E (2015-) |
|---|---|---|---|
| Engine power | 50 hp37.3 kW | 50 hp37.3 kW | 50 hp37.3 kW |
| Operating weight | 4,510 lb2,046 kg | 3,424 lb1,553 kg | 4,410 lb2,000 kg |
| Weight per hp | 90 lb/hp55 kg/kW | 68 lb/hp42 kg/kW | 88 lb/hp54 kg/kW |
| Displacement | 192 ci3.15 L | 114.7 ci1.88 L | 179 ci2.93 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Constant mesh | Synchronized Shuttle | Partially synchronized with dry disc clutch |
| Drive | 2WD | 4WD | - |
| Years built | - | 2017+ | 2015+ |
Calculators
Calculators for the 555
PTO power
About 42 to 45 PTO hp
Estimated from the 50 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 50 hp tractor can run
Maximum size is about a 6 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
105 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
50 hp is 37.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
555 vs. Utility median
Farmtrac 555 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 50 hp | 55 hp | -9% | 45th |
| Engine Displacement | 192 ci | 183 ci | +5% | 51st |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,510 lb | 5,303 lb | -15% | 43rd |
| Length | 129 in | 137 in | -6% | 40th |
| Width | 76 in | 66 in | +15% | 73rd |
| Height | 86 in | 94.1 in | -9% | 34th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Farmtrac models
Other manufacturers
Models with similar horsepower
Gallery

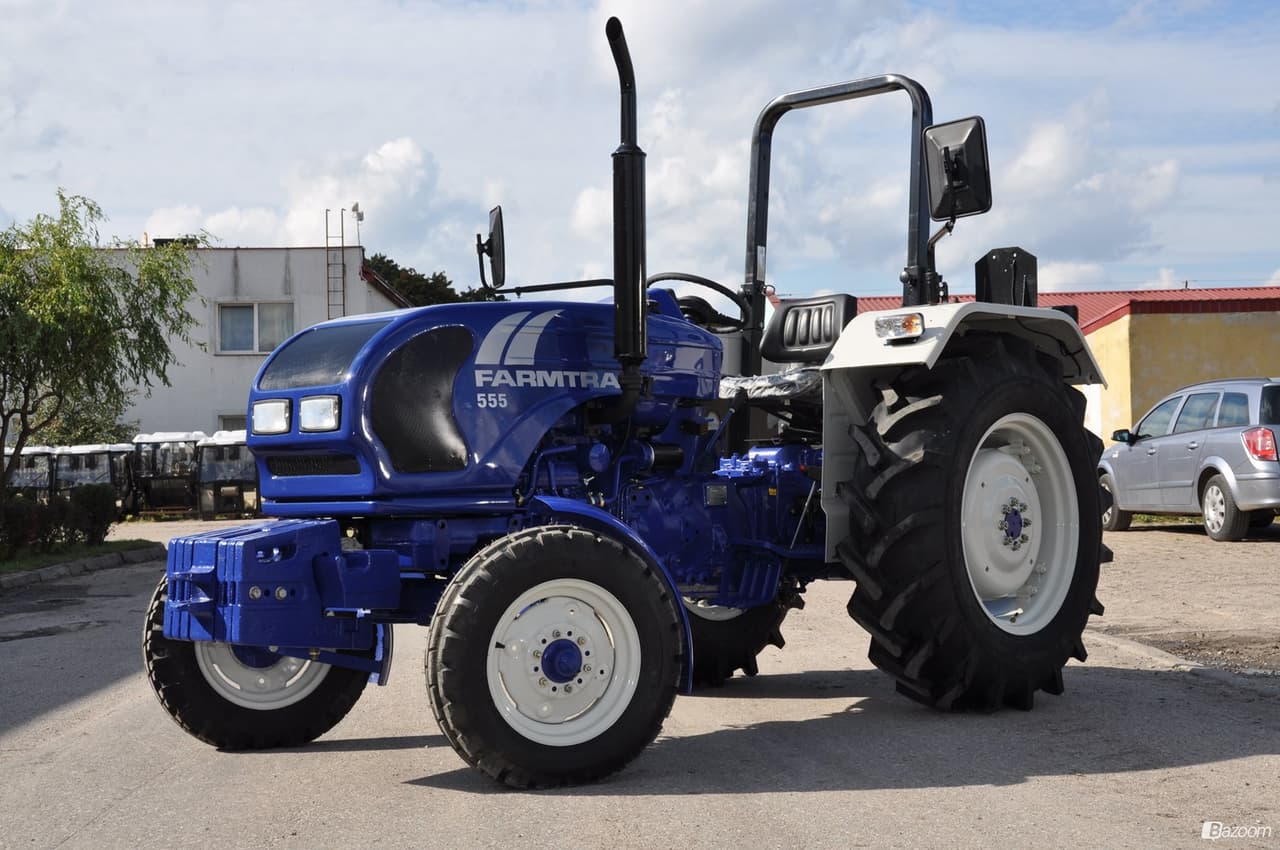

Farmtrac 555 photos
FAQ
Frequently asked questions
How powerful is the Farmtrac 555?
The Farmtrac 555 has an engine power output of 50 hp. It is powered by a 3-cylinder engine displacing 192 ci.
What three-point hitch category does the Farmtrac 555 use?
The Farmtrac 555 has a Category III three-point hitch.
What is the working weight of the Farmtrac 555?
The operating weight of the Farmtrac 555 is approximately 4,510 lb.
What type of transmission does the Farmtrac 555 have?
The Farmtrac 555 uses a Constant mesh transmission offering 8 forward gears.
What routine service does the Farmtrac 555 need?
Regular maintenance for the Farmtrac 555 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
