Same brandFendt 822 Vario
The Fendt 822 Vario is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Deutz engine with 6 cylinders and 200 horsepower. This engine is turbocharged and intercooled, which means it can work hard without getting too hot. The tractor uses diesel fuel and has a special cooling system to keep it running smoothly. One of the best things about the 822 Vario is its special transmission. It can change speeds smoothly without stopping, making it easy to drive in fields or on roads. The tractor is big and sturdy, measuring about 207 inches long and 100 inches wide. It weighs a hefty 20,500 pounds, which helps it pull heavy loads. The tires are large, with bigger ones in the back for extra traction. Fendt, the company that makes this tractor, is known for building high-quality farm machines that last a long time.

Key specifications
- Category
- Utility
- Engine power
- 200hp
- Operating weight
- 20,500 lb
- Transmission
- continuously variable transmission (IVT)
Category comparison
822 Vario compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 822 Vario ranks at the 95th percentile for engine power among recorded utility tractors.
Overview
About the Fendt 822 Vario
The Fendt 822 Vario is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Deutz engine with 6 cylinders and 200 horsepower. This engine is turbocharged and intercooled, which means it can work hard without getting too hot. The tractor uses diesel fuel and has a special cooling system to keep it running smoothly. One of the best things about the 822 Vario is its special transmission. It can change speeds smoothly without stopping, making it easy to drive in fields or on roads. The tractor is big and sturdy, measuring about 207 inches long and 100 inches wide. It weighs a hefty 20,500 pounds, which helps it pull heavy loads. The tires are large, with bigger ones in the back for extra traction. Fendt, the company that makes this tractor, is known for building high-quality farm machines that last a long time.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | 822 Vario |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 20,500lb(9,299 kg) |
Engine
| Make | Deutz |
|---|---|
| Power | 200hp(149.1 kW) |
| Cylinders | 6 |
| Displacement | 369.6ci(6.06 L) |
| Bore | 3.98in(101 mm) |
| Stroke | 4.96in(126 mm) |
Transmission
| Type | continuously variable transmission (IVT) |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 207.6in(5,273 mm) |
|---|---|
| Width | 100.4in(2,550 mm) |
| Height | 128.7in(3,269 mm) |
| Operating weight | 20,500lb(9,299 kg) |
Tires
| Front | 540/65R30ConvertShop size |
|---|---|
| Rear | 650/65R42ConvertShop size |
Closest alternatives
822 Vario compared with the nearest models by horsepower
Among utility tractors, the CaseIH 9110 and the Schluter Euro Trac 2000 LS are closest to the Fendt 822 Vario in rated horsepower. The CaseIH 9110 matches it on rated power and weighs 3,500 lb less, carrying 85 lb per horsepower against 103 lb. The Schluter Euro Trac 2000 LS matches it on rated power.
| Spec | Fendt 822 Vario | CaseIH 9110 | Schluter Euro Trac 2000 LS |
|---|---|---|---|
| Engine power | 200 hp149.1 kW | 200 hp149.1 kW | 200 hp149.1 kW |
| Operating weight | 20,500 lb9,299 kg | 17,000 lb7,711 kg | - |
| Weight per hp | 103 lb/hp62 kg/kW | 85 lb/hp52 kg/kW | - |
| Displacement | 369.6 ci6.06 L | 505 ci8.28 L | 419.3 ci6.87 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | continuously variable transmission (IVT) | Full power shift | Manual |
| Drive | 4WD | Four wheel drive (4WD) | 4WD |
Calculators
Calculators for the 822 Vario
PTO power
About 166 to 180 PTO hp
Estimated from the 200 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 200 hp tractor can run
Maximum size is about a 24 ft rotary cutter or a 20.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
119 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
200 hp is 149.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 650/65R42 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the Fendt 822 Vario
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Fendt 822 Vario service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Fendt 822 Vario operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Fendt 822 Vario service manualAmazon
Shop and repair manuals for this model.
Tires
- 540/65R30 tiresAmazon
Listed front tire size for the Fendt 822 Vario.
- 650/65R42 tiresAmazon
Listed rear tire size for the Fendt 822 Vario.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
822 Vario vs. Utility median
Fendt 822 Vario compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 200 hp | 55 hp | +264% | 95th |
| Engine Displacement | 370 ci | 183 ci | +102% | 88th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Operating Weight | 20,500 lb | 5,303 lb | +287% | 95th |
| Length | 208 in | 137 in | +52% | 95th |
| Width | 100 in | 66 in | +52% | 97th |
| Height | 129 in | 94.1 in | +37% | 96th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

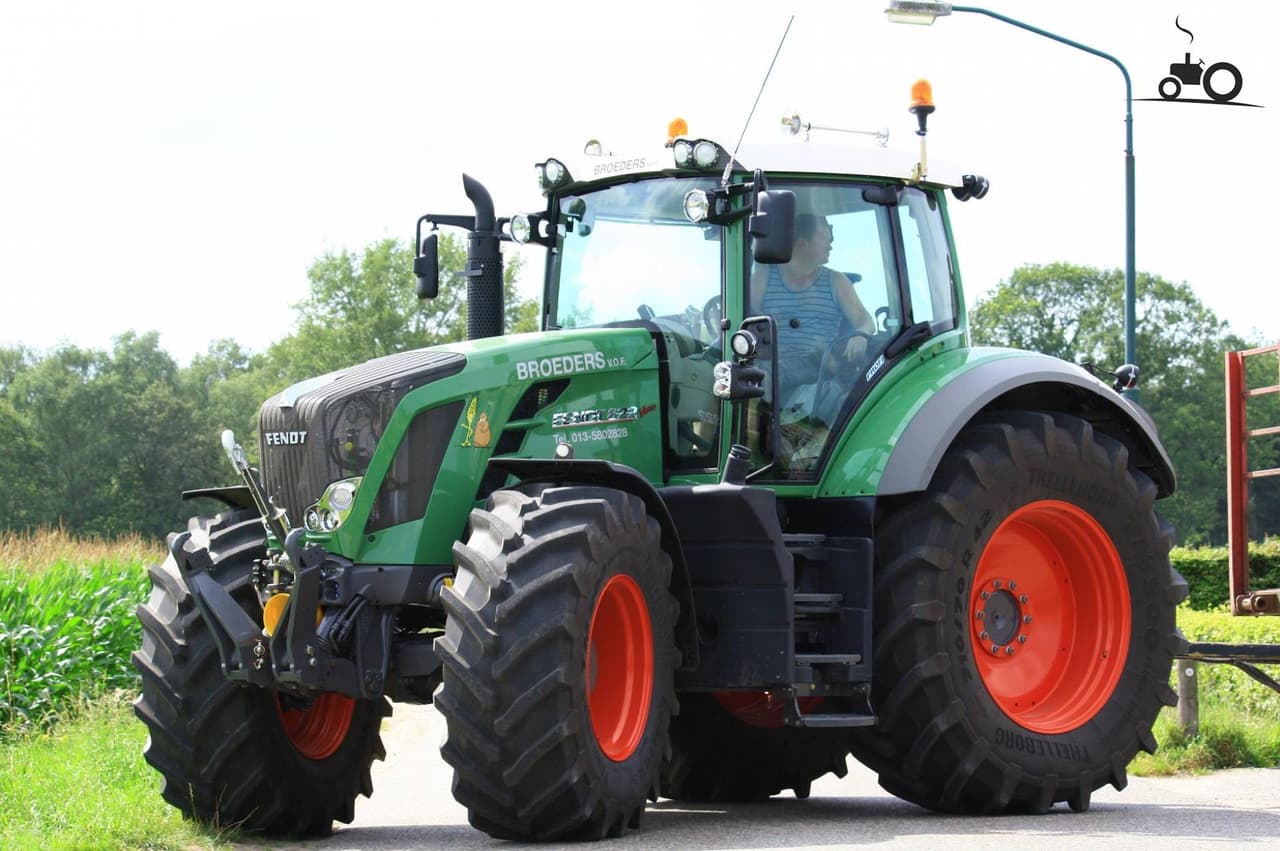

Fendt 822 Vario photos



FAQ
Frequently asked questions
What is the engine power output of the Fendt 822 Vario?
Rated engine output for the Fendt 822 Vario is 200 hp, delivered by a 6-cylinder engine. The engine displaces 369.6 ci.
What are the factory tire sizes for the Fendt 822 Vario?
The Fendt 822 Vario comes with 540/65R30 front tires and 650/65R42 rear tires.
What three-point hitch category does the Fendt 822 Vario use?
The Fendt 822 Vario has a Category Category 3 three-point hitch.
What is the operating weight of the Fendt 822 Vario?
The Fendt 822 Vario has an operating weight of about 20,500 lb.
Which transmission does the Fendt 822 Vario use?
The Fendt 822 Vario is equipped with a continuously variable transmission (IVT) transmission.
How do I maintain a Fendt 822 Vario?
Routine service for the Fendt 822 Vario covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
