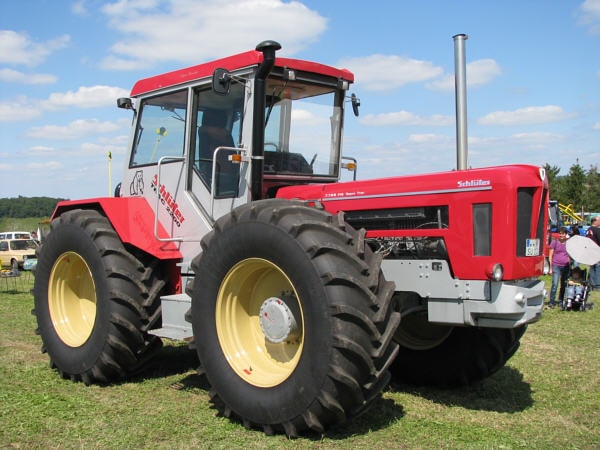

Schluter Super-Trac 2200 TVL
The Schluter Super-Trac 2200 TVL is a powerful utility tractor built for tough jobs. It has a strong 8-cylinder diesel engine that makes 200 horsepower, which is very high compared to other tractors. The engine is turbocharged and liquid-cooled, helping it work hard in all conditions. This tractor is big and heavy, weighing 18,301 pounds. It's 233.1 inches long and 128.7 inches tall. The Super-Trac 2200 TVL has four-wheel drive and hydrostatic power steering, making it easy to control in fields or on rough ground. It has a manual transmission with 24 forward gears and 12 reverse gears, giving the driver lots of options for different tasks. The tractor uses agricultural tires on both the front and back wheels for good traction.
ManufacturerSchluterPower200 hp(149.1 kW)Class150–300 HP tractors →Engine8-cylinderTransmissionManual
Key specifications
- Category
- Utility
- Engine power
- 200hp
- Operating weight
- 18,301 lb
- Transmission
- Manual
Category comparison
Super-Trac 2200 TVL compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
200 hp · 95th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Super-Trac 2200 TVL ranks at the 95th percentile for engine power among recorded utility tractors.
Overview
About the Schluter Super-Trac 2200 TVL
The Schluter Super-Trac 2200 TVL is a powerful utility tractor built for tough jobs. It has a strong 8-cylinder diesel engine that makes 200 horsepower, which is very high compared to other tractors. The engine is turbocharged and liquid-cooled, helping it work hard in all conditions. This tractor is big and heavy, weighing 18,301 pounds. It's 233.1 inches long and 128.7 inches tall. The Super-Trac 2200 TVL has four-wheel drive and hydrostatic power steering, making it easy to control in fields or on rough ground. It has a manual transmission with 24 forward gears and 12 reverse gears, giving the driver lots of options for different tasks. The tractor uses agricultural tires on both the front and back wheels for good traction.
Full specifications
Recorded specifications
General
| Manufacturer | Schluter |
|---|---|
| Model | Super-Trac 2200 TVL |
| Category | Utility tractor |
| Type | 4x4 (4WD) |
| Operating weight | 18,301lb(8,301 kg) |
Engine
| Make | Schluter |
|---|---|
| Model | SDMT 112 W 8 |
| Power | 200hp(149.1 kW) |
| Cylinders | 8 |
| Displacement | 601.2ci(9.85 L) |
| Bore | 4.41in(112 mm) |
| Stroke | 4.92in(125 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 24 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 (4WD) |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 233.1in(5,921 mm) |
|---|---|
| Height | 128.7in(3,269 mm) |
| Operating weight | 18,301lb(8,301 kg) |
Closest alternatives
Super-Trac 2200 TVL compared with the nearest models by horsepower
Among utility tractors, the Schluter Euro Trac 2000 LS and the CaseIH 9110 are closest to the Schluter Super-Trac 2200 TVL in rated horsepower. The Schluter Euro Trac 2000 LS matches it on rated power. The CaseIH 9110 matches it on rated power and weighs 1,300 lb less.
| Spec | Schluter Super-Trac 2200 TVL | Schluter Euro Trac 2000 LS | CaseIH 9110 |
|---|---|---|---|
| Engine power | 200 hp149.1 kW | 200 hp149.1 kW | 200 hp149.1 kW |
| Operating weight | 18,301 lb8,301 kg | - | 17,000 lb7,711 kg |
| Weight per hp | 92 lb/hp56 kg/kW | - | 85 lb/hp52 kg/kW |
| Displacement | 601.2 ci9.85 L | 419.3 ci6.87 L | 505 ci8.28 L |
| Cylinders | 8 | 6 | 6 |
| Transmission | Manual | Manual | Full power shift |
| Drive | 4WD | 4WD | Four wheel drive (4WD) |
Calculators
Calculators for the Super-Trac 2200 TVL
PTO power
About 166 to 180 PTO hp
Estimated from the 200 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 200 hp tractor can run
Maximum size is about a 24 ft rotary cutter or a 20.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
106 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
200 hp is 149.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Super-Trac 2200 TVL vs. Utility median
Schluter Super-Trac 2200 TVL compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 200 hp | 55 hp | +264% | 95th |
| Engine Displacement | 601 ci | 183 ci | +228% | 95th |
| Cylinders | 8 | 4 | +100% | 99th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 18,301 lb | 5,303 lb | +245% | 94th |
| Length | 233 in | 137 in | +71% | 96th |
| Height | 129 in | 94.1 in | +37% | 96th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other Schluter models
Other manufacturers
Models with similar horsepower
Gallery
Schluter Super-Trac 2200 TVL photos
FAQ
Frequently asked questions
How much horsepower does the Schluter Super-Trac 2200 TVL have?
The Schluter Super-Trac 2200 TVL produces 200 hp from its 8-cylinder engine. Engine displacement is 601.2 ci.
What transmission is in the Schluter Super-Trac 2200 TVL?
Transmission on the Schluter Super-Trac 2200 TVL is Manual, with 24 forward speeds.
How much does the Schluter Super-Trac 2200 TVL weigh?
The Schluter Super-Trac 2200 TVL weighs about 18,301 lb in operating condition.
What maintenance does the Schluter Super-Trac 2200 TVL require?
The Schluter Super-Trac 2200 TVL needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
