Fendt Farmer 102S
The Fendt Farmer 102S is a row crop tractor designed for various farming tasks. It has a 2WD drive system and a synchronized transmission with 16 forward gears and 5 reverse gears. This gives farmers good control over speed and power for different jobs. The tractor is powered by a MWM D325-3 engine. This diesel engine has 3 cylinders and is air-cooled. It produces 40 hp at 2175 rpm, which is below average power for tractors. The engine size is also smaller than most, but it's efficient for lighter farm work. The Farmer 102S has a three-point hitch at the rear, which lets it connect to many farm tools. It weighs 5049 lb, making it lighter than most tractors. This can be good for working on softer ground.
ManufacturerFendtPower40 hpEngine3-cylTransSynchronized
Quick specs
- Category
- Row Crop
- Engine Power Output
- 40hp
- Operating Weight
- 5,049 lb
- Transmission
- Synchronized
At a glance
How the Farmer 102S compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
40 hp · 4th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Farmer 102S ranks at the 4th percentile for engine power among recorded row crop tractors.
Overview
About the Fendt Farmer 102S
The Fendt Farmer 102S is a row crop tractor designed for various farming tasks. It has a 2WD drive system and a synchronized transmission with 16 forward gears and 5 reverse gears. This gives farmers good control over speed and power for different jobs. The tractor is powered by a MWM D325-3 engine. This diesel engine has 3 cylinders and is air-cooled. It produces 40 hp at 2175 rpm, which is below average power for tractors. The engine size is also smaller than most, but it's efficient for lighter farm work. The Farmer 102S has a three-point hitch at the rear, which lets it connect to many farm tools. It weighs 5049 lb, making it lighter than most tractors. This can be good for working on softer ground.
Full specifications
Every recorded spec
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 102S |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 5,049lb |
Engine
| Make | MWM |
|---|---|
| Model | D325-3 |
| Power | 40hp |
| Cylinders | 3 |
| Displacement | 155.6ci |
| Bore | 3.74in |
| Stroke | 4.72in |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 16 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 142.7in |
|---|---|
| Width | 66.9in |
| Height | 92.5in |
| Operating weight | 5,049lb |
Head to head
Farmer 102S vs. Row Crop median
How the Fendt Farmer 102S compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 138 hp | -71% | 4th |
| Engine Displacement | 156 ci | 391 ci | -60% | 4th |
| Cylinders | 3 | 6 | -50% | 2nd |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 5,049 lb | 12,307 lb | -59% | 8th |
| Length | 143 in | 180 in | -21% | 13th |
| Width | 66.9 in | 91.2 in | -27% | 5th |
| Height | 92.5 in | 114 in | -19% | 19th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Fendt tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fendt Farmer 240S | 40 hp | 5,148 lb | — | Compare → |
| Fendt Favorit 1 | 40 hp | — | — | Compare → |
| Fendt Favorit 2 | 46 hp | — | — | Compare → |
| Fendt Farmer 103S | 48 hp | 4,905 lb | — | Compare → |
| Fendt Farmer 250S | 49.3 hp | 5,512 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Fendt siblings
Explore
Similar-spec models
Gallery

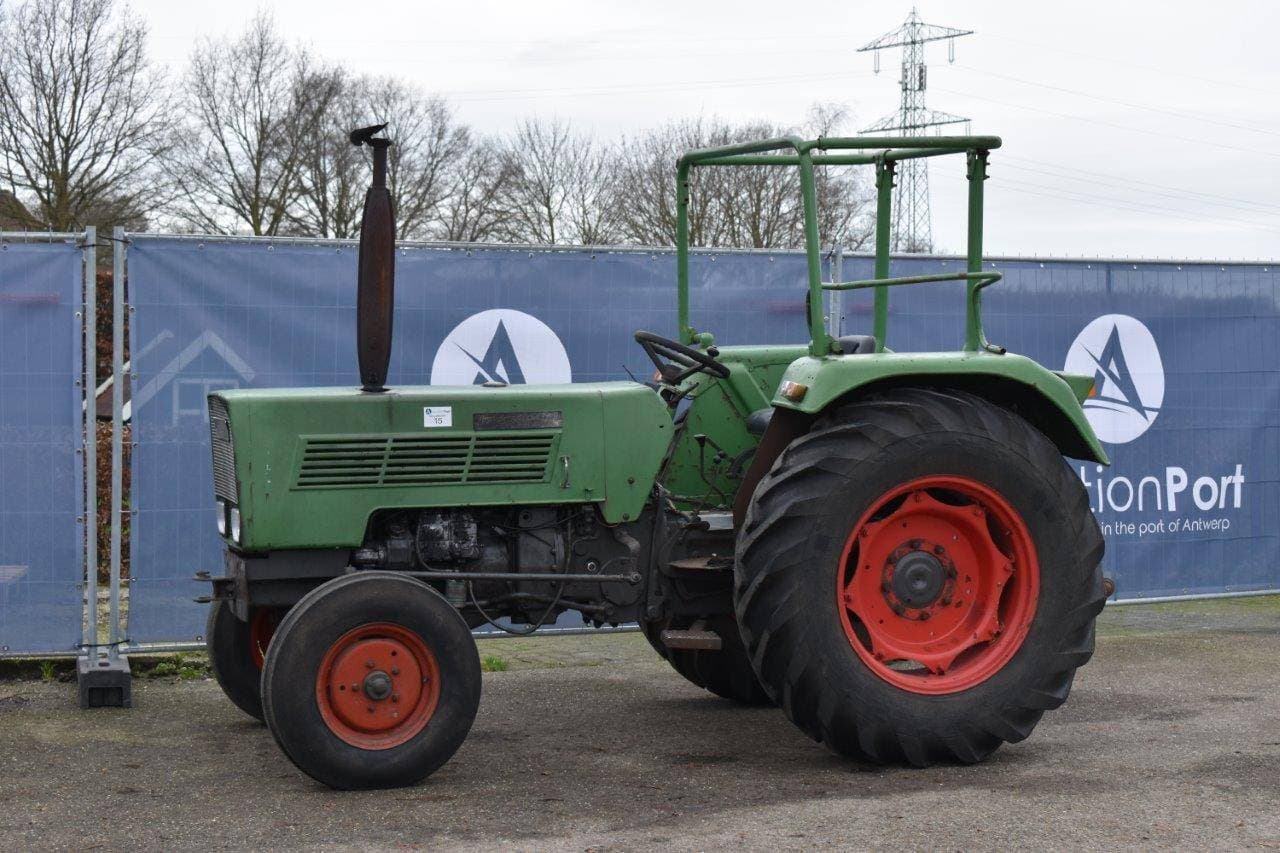

Fendt Farmer 102S photos
FAQ
Common questions
How much horsepower does the Fendt Farmer 102S have?
The Fendt Farmer 102S produces 40 hp from its 3-cylinder engine. Engine displacement is 155.6 ci.
How much does the Fendt Farmer 102S weigh?
The Fendt Farmer 102S weighs about 5,049 lb in operating condition.
What transmission is in the Fendt Farmer 102S?
Transmission on the Fendt Farmer 102S is Synchronized, with 16 forward speeds.
What three-point hitch category does the Fendt Farmer 102S use?
The Fendt Farmer 102S has a Category Category 3 three-point hitch.
What maintenance does the Fendt Farmer 102S require?
Like any tractor, the Fendt Farmer 102S needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
