Fendt Farmer 105LS
The Fendt Farmer 105LS is a row crop tractor built for efficiency in the field. It features a 2WD design with power steering, making it easy to maneuver. The tractor has a synchronized transmission with 13 forward gears and 4 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Farmer 105LS is powered by a MWM D226-4 engine. This 4-cylinder diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 253.5 ci, which is below average for tractors in its class. The engine produces 59 hp at 2175 rpm, which is also on the lower end of the power range. However, this makes the tractor fuel-efficient and suitable for lighter farm work. The tractor's compact size, measuring 150.4 inches long, 74.4 inches wide, and 96.5 inches tall, allows it to work well in tight spaces between crop rows.

Key specifications
- Category
- Row Crop
- Engine power
- 59hp
- Operating weight
- 6,636 lb
- Transmission
- Synchronized
Category comparison
Farmer 105LS compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
This model
The Farmer 105LS ranks at the 8th percentile for engine power among recorded row crop tractors.
Overview
About the Fendt Farmer 105LS
The Fendt Farmer 105LS is a row crop tractor built for efficiency in the field. It features a 2WD design with power steering, making it easy to maneuver. The tractor has a synchronized transmission with 13 forward gears and 4 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Farmer 105LS is powered by a MWM D226-4 engine. This 4-cylinder diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 253.5 ci, which is below average for tractors in its class. The engine produces 59 hp at 2175 rpm, which is also on the lower end of the power range. However, this makes the tractor fuel-efficient and suitable for lighter farm work. The tractor's compact size, measuring 150.4 inches long, 74.4 inches wide, and 96.5 inches tall, allows it to work well in tight spaces between crop rows.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 105LS |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 6,636lb(3,010 kg) |
Engine
| Make | MWM |
|---|---|
| Model | D226-4 |
| Power | 59hp(44 kW) |
| Cylinders | 4 |
| Displacement | 253.5ci(4.15 L) |
| Bore | 4.13in(104.9 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 13 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 150.4in(3,820 mm) |
|---|---|
| Width | 74.4in(1,890 mm) |
| Height | 96.5in(2,451 mm) |
| Operating weight | 6,636lb(3,010 kg) |
Closest alternatives
Farmer 105LS compared with the nearest models by horsepower
The closest row crop models to the Fendt Farmer 105LS by rated horsepower are the Fendt Farmer 105S and the Fendt Farmer 260S. The Fendt Farmer 105S matches it on rated power and weighs 310 lb less. The Fendt Farmer 260S matches it on rated power and weighs 1,080 lb less, carrying 94 lb per horsepower against 112 lb. Of the 3 models, the Farmer 105LS has the highest weight per horsepower at 112 lb per hp.
| Spec | Fendt Farmer 105LS | Fendt Farmer 105S | Fendt Farmer 260S |
|---|---|---|---|
| Engine power | 59 hp44 kW | 59 hp44 kW | 59 hp44 kW |
| Operating weight | 6,636 lb3,010 kg | 6,327 lb2,870 kg | 5,556 lb2,520 kg |
| Weight per hp | 112 lb/hp68 kg/kW | 107 lb/hp65 kg/kW | 94 lb/hp57 kg/kW |
| Displacement | 253.5 ci4.15 L | 253.5 ci4.15 L | 187 ci3.06 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Synchronized | Synchronized / Creeper | Shuttle |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the Farmer 105LS
PTO power
About 49 to 53 PTO hp
Estimated from the 59 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 59 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
131 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
59 hp is 44.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Fendt Farmer 105LS
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the MWM D226-4Amazon
Fits the MWM D226-4 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the MWM D226-4Amazon
Fits the MWM D226-4 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the MWM D226-4Amazon
Fits the MWM D226-4 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the MWM D226-4Amazon
Fits the MWM D226-4 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Fendt Farmer 105LS service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Fendt Farmer 105LS operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Fendt Farmer 105LS service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Farmer 105LS vs. Row Crop median
Fendt Farmer 105LS compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59 hp | 138 hp | -57% | 8th |
| Engine Displacement | 254 ci | 391 ci | -35% | 17th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 13 | 16 | -19% | 31st |
| Operating Weight | 6,636 lb | 12,307 lb | -46% | 14th |
| Length | 150 in | 180 in | -16% | 17th |
| Width | 74.4 in | 91.2 in | -18% | 10th |
| Height | 96.5 in | 114 in | -15% | 20th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

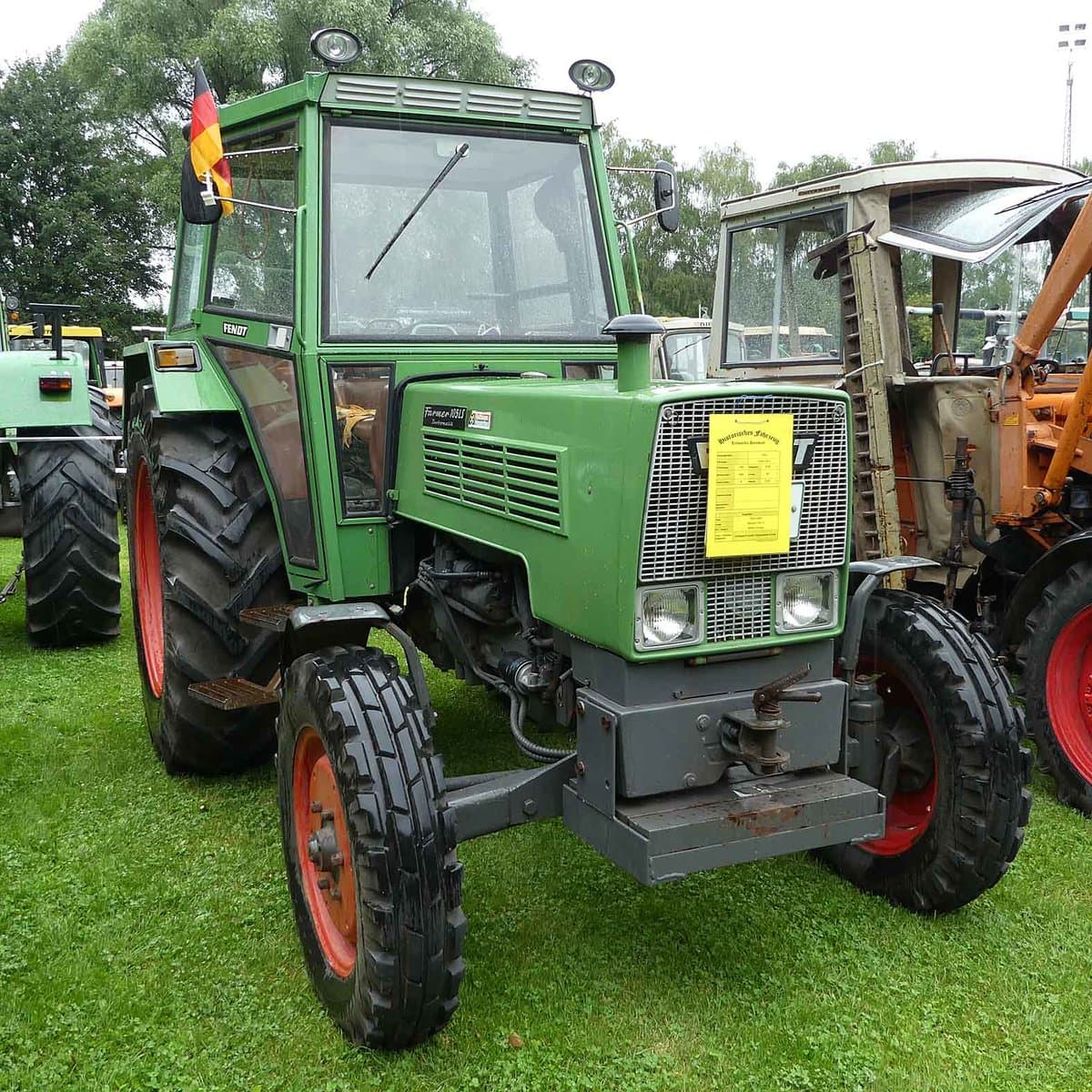

Fendt Farmer 105LS photos




FAQ
Frequently asked questions
How much horsepower does the Fendt Farmer 105LS have?
The Fendt Farmer 105LS produces 59 hp from its 4-cylinder engine. Engine displacement is 253.5 ci.
How much does the Fendt Farmer 105LS weigh?
The Fendt Farmer 105LS weighs about 6,636 lb in operating condition.
What transmission is in the Fendt Farmer 105LS?
Transmission on the Fendt Farmer 105LS is Synchronized, with 13 forward speeds.
What type of hydraulic system does the Fendt Farmer 105LS use?
Hydraulics on the Fendt Farmer 105LS are Open Center.
What maintenance does the Fendt Farmer 105LS require?
The Fendt Farmer 105LS needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
