Row Crop tractorsSpec sheet
Fendt Farmer 106S
The Fendt Farmer 106S is a row crop tractor built for farm work. It has a 2-wheel drive system and power steering, making it easy to control in the fields. The tractor uses a synchronized transmission with 13 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Farmer 106S has a MWM diesel engine with 4 cylinders. The engine is naturally aspirated and produces 64.4 horsepower, which is below average for tractors. This tractor is good for lighter farm work. It has agricultural tires on both the front and back, perfect for use in crop fields. The tractor measures 150.4 inches long, 79.1 inches wide, and 97.6 inches tall. It also has a category III hitch for attaching various farm tools.
ManufacturerFendtPower64.4 hp(48.0 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionSynchronized
Key specifications
- Category
- Row Crop
- Engine power
- 64hp
- Transmission
- Synchronized
Category comparison
Farmer 106S compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
64.4 hp · 10th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Farmer 106S ranks at the 10th percentile for engine power among recorded row crop tractors.
Overview
About the Fendt Farmer 106S
The Fendt Farmer 106S is a row crop tractor built for farm work. It has a 2-wheel drive system and power steering, making it easy to control in the fields. The tractor uses a synchronized transmission with 13 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Farmer 106S has a MWM diesel engine with 4 cylinders. The engine is naturally aspirated and produces 64.4 horsepower, which is below average for tractors. This tractor is good for lighter farm work. It has agricultural tires on both the front and back, perfect for use in crop fields. The tractor measures 150.4 inches long, 79.1 inches wide, and 97.6 inches tall. It also has a category III hitch for attaching various farm tools.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 106S |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
Engine
| Make | MWM |
|---|---|
| Power | 64.4hp(48.02 kW) |
| Cylinders | 4 |
| Bore | 4.13in(104.9 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 13 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 150.4in(3,820 mm) |
|---|---|
| Width | 79.1in(2,009 mm) |
| Height | 97.6in(2,479 mm) |
Closest alternatives
Farmer 106S compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the Farmer 106S are the Fendt Farmer 106LS and the Kioti DK65. The Fendt Farmer 106LS matches it on rated power. The Kioti DK65 matches it on rated power.
| Spec | Fendt Farmer 106S | Fendt Farmer 106LS | Kioti DK65 |
|---|---|---|---|
| Engine power | 64.4 hp48 kW | 64.4 hp48 kW | 64.4 hp48 kW |
| Operating weight | - | 7,044 lb3,195 kg | 6,161 lb2,795 kg |
| Weight per hp | - | 109 lb/hp67 kg/kW | 96 lb/hp58 kg/kW |
| Displacement | - | 253.5 ci4.15 L | 164.8 ci2.7 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Synchronized | Synchronized | - |
| Drive | 2WD | 2WD | - |
Calculators
Calculators for the Farmer 106S
PTO power
About 53 to 58 PTO hp
Estimated from the 64.4 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 64.4 hp tractor can run
Maximum size is about a 7.5 ft rotary cutter or a 6.5 ft tiller. The calculator also sizes discs, plows and balers.
Units
64.4 hp is 48.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Farmer 106S vs. Row Crop median
Fendt Farmer 106S compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 64.4 hp | 138 hp | -53% | 10th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 13 | 16 | -19% | 31st |
| Length | 150 in | 180 in | -16% | 17th |
| Width | 79.1 in | 91.2 in | -13% | 20th |
| Height | 97.6 in | 114 in | -14% | 21st |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

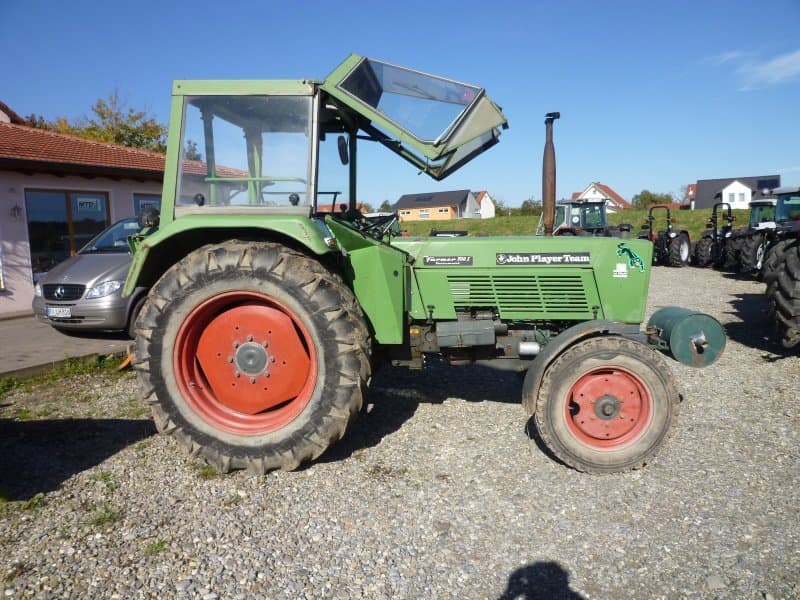

Fendt Farmer 106S photos
FAQ
Frequently asked questions
What is the engine power output of the Fendt Farmer 106S?
Rated engine output for the Fendt Farmer 106S is 64.4 hp, delivered by a 4-cylinder engine.
Which transmission does the Fendt Farmer 106S use?
The Fendt Farmer 106S is equipped with a Synchronized transmission with 13 forward gears.
What three-point hitch category does the Fendt Farmer 106S use?
The Fendt Farmer 106S has a Category III three-point hitch.
How do I maintain a Fendt Farmer 106S?
Routine service for the Fendt Farmer 106S covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
