Row Crop tractorsSpec sheet
Fendt Farmer 105S
The Fendt Farmer 105S is a row crop tractor designed for various farming tasks. It has a 2-wheel drive system and power steering, making it easy to handle in the fields. The tractor is powered by a 4-cylinder diesel engine made by MWM. This engine has a displacement of 253.5 cubic inches, which is below average compared to other tractors. It produces 59 horsepower, which is also on the lower end of the power range for tractors. One of the Farmer 105S's standout features is its transmission. It has 16 forward gears and 5 reverse gears, including 13 synchronized gears and 3 creeper gears for forward motion. This variety of gears allows farmers to choose the right speed for different jobs. The tractor measures 150.4 inches long, 74.4 inches wide, and 96.5 inches tall. It weighs 6,327 pounds, which is lighter than many other tractors. This lighter weight might make it more fuel-efficient and easier to maneuver in tight spaces.
ManufacturerFendtPower59 hp(44.0 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionSynchronized / Creeper
Key specifications
- Category
- Row Crop
- Engine power
- 59hp
- Operating weight
- 6,327 lb
- Transmission
- Synchronized / Creeper
Category comparison
Farmer 105S compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
59 hp · 8th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Farmer 105S ranks at the 8th percentile for engine power among recorded row crop tractors.
Overview
About the Fendt Farmer 105S
The Fendt Farmer 105S is a row crop tractor designed for various farming tasks. It has a 2-wheel drive system and power steering, making it easy to handle in the fields. The tractor is powered by a 4-cylinder diesel engine made by MWM. This engine has a displacement of 253.5 cubic inches, which is below average compared to other tractors. It produces 59 horsepower, which is also on the lower end of the power range for tractors. One of the Farmer 105S's standout features is its transmission. It has 16 forward gears and 5 reverse gears, including 13 synchronized gears and 3 creeper gears for forward motion. This variety of gears allows farmers to choose the right speed for different jobs. The tractor measures 150.4 inches long, 74.4 inches wide, and 96.5 inches tall. It weighs 6,327 pounds, which is lighter than many other tractors. This lighter weight might make it more fuel-efficient and easier to maneuver in tight spaces.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 105S |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 6,327lb(2,870 kg) |
Engine
| Make | MWM |
|---|---|
| Model | 4.2L 4-cyl diesel |
| Power | 59hp(44 kW) |
| Cylinders | 4 |
| Displacement | 253.5ci(4.15 L) |
| Bore | 4.13in(104.9 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Synchronized / Creeper |
|---|---|
| Forward gears | 16 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 150.4in(3,820 mm) |
|---|---|
| Width | 74.4in(1,890 mm) |
| Height | 96.5in(2,451 mm) |
| Operating weight | 6,327lb(2,870 kg) |
Closest alternatives
Farmer 105S compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the Farmer 105S are the Fendt Farmer 105LS and the Fendt Farmer 260S. The Fendt Farmer 105LS matches it on rated power and weighs 310 lb more. The Fendt Farmer 260S matches it on rated power and weighs 770 lb less, carrying 94 lb per horsepower against 107 lb.
| Spec | Fendt Farmer 105S | Fendt Farmer 105LS | Fendt Farmer 260S |
|---|---|---|---|
| Engine power | 59 hp44 kW | 59 hp44 kW | 59 hp44 kW |
| Operating weight | 6,327 lb2,870 kg | 6,636 lb3,010 kg | 5,556 lb2,520 kg |
| Weight per hp | 107 lb/hp65 kg/kW | 112 lb/hp68 kg/kW | 94 lb/hp57 kg/kW |
| Displacement | 253.5 ci4.15 L | 253.5 ci4.15 L | 187 ci3.06 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Synchronized / Creeper | Synchronized | Shuttle |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the Farmer 105S
PTO power
About 49 to 53 PTO hp
Estimated from the 59 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 59 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
125 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
59 hp is 44.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Farmer 105S vs. Row Crop median
Fendt Farmer 105S compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59 hp | 138 hp | -57% | 8th |
| Engine Displacement | 254 ci | 391 ci | -35% | 17th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 6,327 lb | 12,307 lb | -49% | 13th |
| Length | 150 in | 180 in | -16% | 17th |
| Width | 74.4 in | 91.2 in | -18% | 10th |
| Height | 96.5 in | 114 in | -15% | 20th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

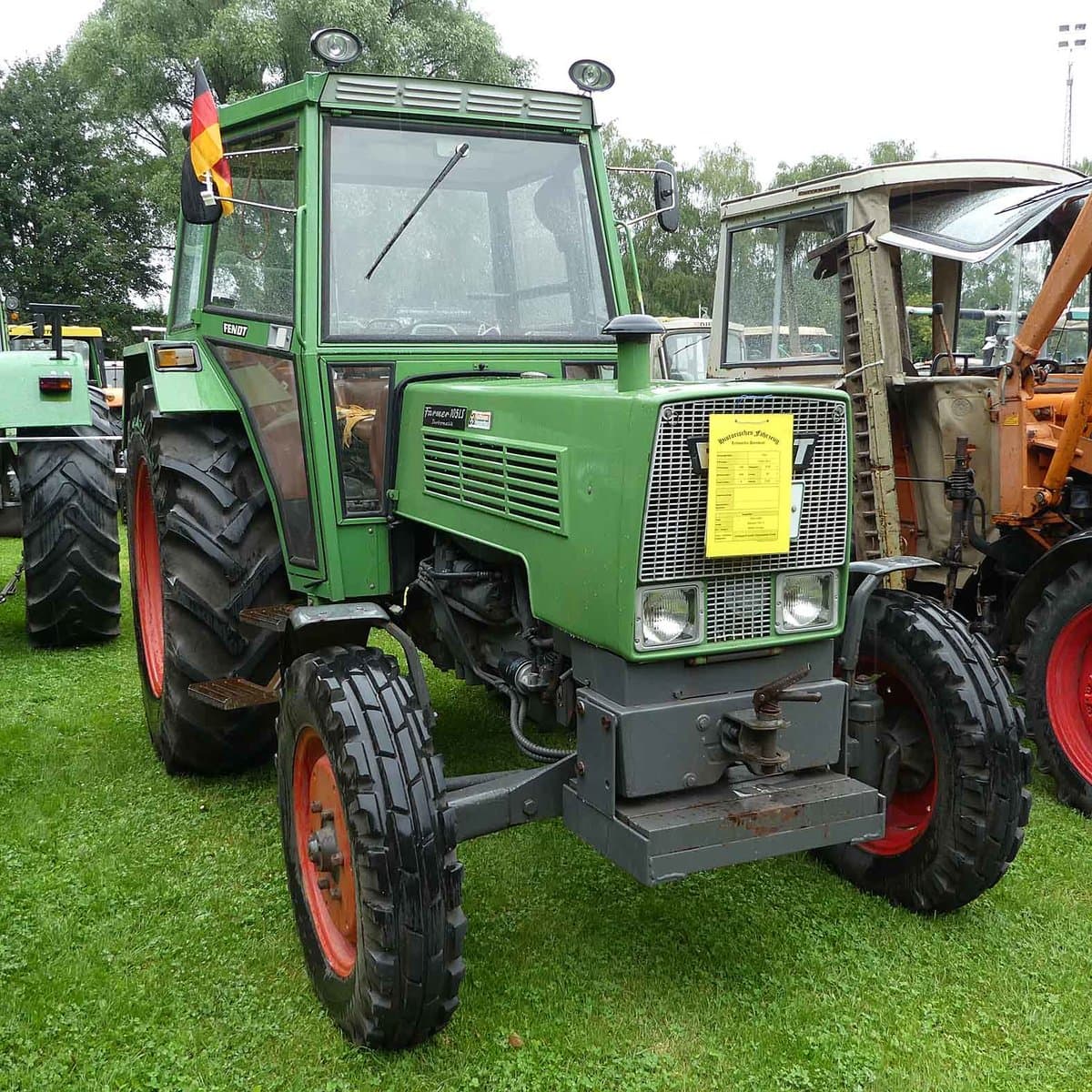

Fendt Farmer 105S photos
FAQ
Frequently asked questions
How much horsepower does the Fendt Farmer 105S have?
The Fendt Farmer 105S produces 59 hp from its 4-cylinder engine. Engine displacement is 253.5 ci.
What transmission is in the Fendt Farmer 105S?
Transmission on the Fendt Farmer 105S is Synchronized / Creeper, with 16 forward speeds.
How much does the Fendt Farmer 105S weigh?
The Fendt Farmer 105S weighs about 6,327 lb in operating condition.
What maintenance does the Fendt Farmer 105S require?
The Fendt Farmer 105S needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
