Fendt Farmer 309LS
The Fendt Farmer 309LS is a row crop tractor designed for efficient farming. It has a 2WD drive system and power steering, making it easy to maneuver in fields. The tractor features a 21-speed forward and 6-speed reverse synchromesh transmission, giving farmers plenty of options for different tasks. Under the hood, the Farmer 309LS boasts a MWM diesel engine with 4 cylinders and turbocharging. The engine produces 86 hp at 2350 rpm, which is average for its class. It has a liquid-cooling system to keep it running smoothly. The tractor's three-point hitch is located at the rear and can lift an impressive 14,330 lb, which is very high compared to other tractors. With agricultural tires, a comfortable cab, and an open center hydraulic system, this Fendt tractor is well-equipped for various farming jobs.
ManufacturerFendtPower86 hpEngine4-cylTransSynchromesh
Quick specs
- Category
- Row Crop
- Engine Power Output
- 86hp
- Transmission
- Synchromesh
At a glance
How the Farmer 309LS compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
86 hp · 16th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Farmer 309LS ranks at the 16th percentile for engine power among recorded row crop tractors.
Overview
About the Fendt Farmer 309LS
The Fendt Farmer 309LS is a row crop tractor designed for efficient farming. It has a 2WD drive system and power steering, making it easy to maneuver in fields. The tractor features a 21-speed forward and 6-speed reverse synchromesh transmission, giving farmers plenty of options for different tasks. Under the hood, the Farmer 309LS boasts a MWM diesel engine with 4 cylinders and turbocharging. The engine produces 86 hp at 2350 rpm, which is average for its class. It has a liquid-cooling system to keep it running smoothly. The tractor's three-point hitch is located at the rear and can lift an impressive 14,330 lb, which is very high compared to other tractors. With agricultural tires, a comfortable cab, and an open center hydraulic system, this Fendt tractor is well-equipped for various farming jobs.
Full specifications
Every recorded spec
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 309LS |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
Engine
| Make | MWM |
|---|---|
| Power | 86hp |
| Cylinders | 4 |
| Displacement | 253.5ci |
| Bore | 4.13in |
| Stroke | 4.72in |
Transmission
| Type | Synchromesh |
|---|---|
| Forward gears | 21 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Width | 77.6in |
|---|---|
| Height | 102in |
Head to head
Farmer 309LS vs. Row Crop median
How the Fendt Farmer 309LS compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 86 hp | 138 hp | -38% | 16th |
| Engine Displacement | 254 ci | 391 ci | -35% | 17th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 21 | 16 | +31% | 72nd |
| Width | 77.6 in | 91.2 in | -15% | 17th |
| Height | 102 in | 114 in | -10% | 24th |
| 3-Point Hitch Capacity | 14,330 lb | 11,023 lb | +30% | 65th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 279–1,417 models).
Compare to tractors with similar specs
Commonly compared Fendt tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fendt Farmer 409 Vario | 86 hp | 11,177 lb | — | Compare → |
| Fendt Favorit 600LS | 85 hp | 10,738 lb | — | Compare → |
| Fendt Farmer 310LS | 92 hp | 9,073 lb | — | Compare → |
| Fendt Farmer 280S | 79.1 hp | 6,548 lb | — | Compare → |
| Fendt Favorit 610LS | 95 hp | 11,069 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT85 | 85.4 hp | 8,450 lb | — | Compare → |
| Agco LT90 | 85 hp | 8,980 lb | — | Compare → |
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
Explore
Fendt siblings
Explore
Similar-spec models
Gallery

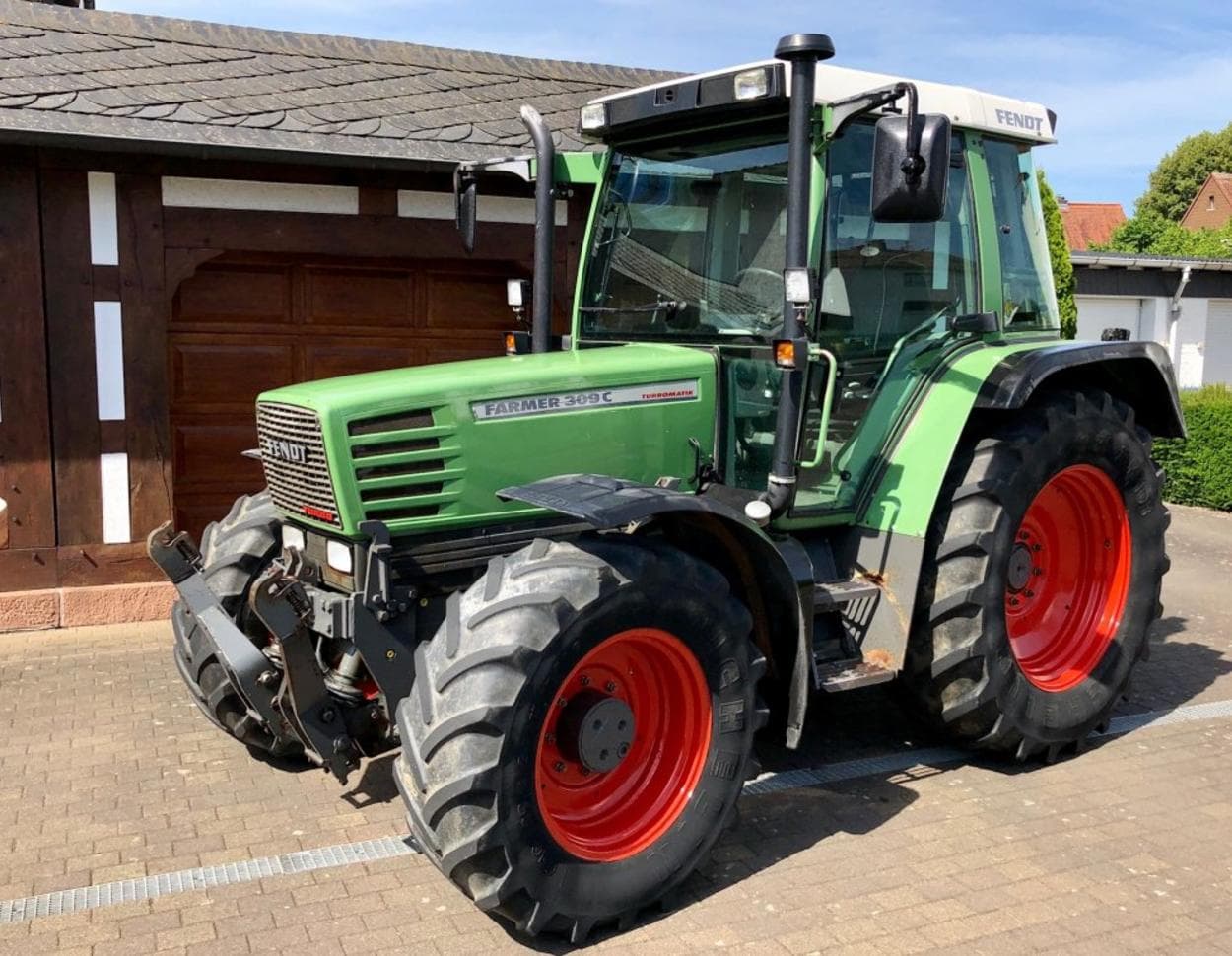

Fendt Farmer 309LS photos
FAQ
Common questions
How much horsepower does the Fendt Farmer 309LS have?
The Fendt Farmer 309LS produces 86 hp from its 4-cylinder engine. Engine displacement is 253.5 ci.
What transmission is in the Fendt Farmer 309LS?
Transmission on the Fendt Farmer 309LS is Synchromesh, with 21 forward speeds.
What type of hydraulic system does the Fendt Farmer 309LS use?
Hydraulics on the Fendt Farmer 309LS are Open Center.
What hitch category is the Fendt Farmer 309LS?
The Fendt Farmer 309LS uses a Category II hitch with a lift capacity of 14,330 lb.
What maintenance does the Fendt Farmer 309LS require?
Like any tractor, the Fendt Farmer 309LS needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
