Ford 7740
The Ford 7740 is a row crop tractor built from 1991 to 1995. It has a 2-wheel drive system and a hydrostatic power steering, making it easy to control in the fields. The tractor is powered by a Ford Genesis diesel engine with 4 cylinders and a turbocharger. This engine produces 86.2 hp at 2071 rpm, which is average power for tractors in its class. The 7740 has a constant mesh transmission with 8 forward gears and 2 reverse gears, giving farmers good options for different tasks. This tractor has some handy features for farm work. It has a Category II hitch that can lift up to 6225 lbs, which is good for attaching various tools. The hydraulic system can pump 15.1 gallons per minute, helping with tasks that need hydraulic power. The Ford 7740 weighs 8679.6 lbs, making it stable for field work. It's 161.8 inches long, 76.8 inches wide, and 106.7 inches tall, so it can fit in most farm buildings. The tractor also has an independent PTO that runs at 540 rpm, useful for powering different implements.
ManufacturerFordPower86.2 hpEngine4-cylTransConstant mesh
Quick specs
- Category
- Row Crop
- Engine Power Output
- 86hp
- Operating Weight
- 8,679.6 lb
- Transmission
- Constant mesh
At a glance
How the 7740 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
86.2 hp · 17th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 7740 ranks at the 17th percentile for engine power among recorded row crop tractors.
Overview
About the Ford 7740
The Ford 7740 is a row crop tractor built from 1991 to 1995. It has a 2-wheel drive system and a hydrostatic power steering, making it easy to control in the fields. The tractor is powered by a Ford Genesis diesel engine with 4 cylinders and a turbocharger. This engine produces 86.2 hp at 2071 rpm, which is average power for tractors in its class. The 7740 has a constant mesh transmission with 8 forward gears and 2 reverse gears, giving farmers good options for different tasks. This tractor has some handy features for farm work. It has a Category II hitch that can lift up to 6225 lbs, which is good for attaching various tools. The hydraulic system can pump 15.1 gallons per minute, helping with tasks that need hydraulic power. The Ford 7740 weighs 8679.6 lbs, making it stable for field work. It's 161.8 inches long, 76.8 inches wide, and 106.7 inches tall, so it can fit in most farm buildings. The tractor also has an independent PTO that runs at 540 rpm, useful for powering different implements.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | 7740 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1991–1995 |
| Operating weight | 8,679.6lb |
Engine
| Make | Ford |
|---|---|
| Model | Genesis |
| Power | 86.2hp |
| Cylinders | 4 |
| Displacement | 304ci |
| Bore | 4.41in |
| Stroke | 5in |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Mechanical |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 161.8in |
|---|---|
| Width | 76.8in |
| Height | 106.7in |
| Operating weight | 8,679.6lb |
Capacities
| Cooling system | 3.83gal |
|---|
Head to head
7740 vs. Row Crop median
How the Ford 7740 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 86.2 hp | 138 hp | -38% | 17th |
| Engine Displacement | 304 ci | 391 ci | -22% | 33rd |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 8,680 lb | 12,307 lb | -29% | 24th |
| Length | 162 in | 180 in | -10% | 26th |
| Width | 76.8 in | 91.2 in | -16% | 15th |
| Height | 107 in | 114 in | -6% | 29th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT85 | 85.4 hp | 8,450 lb | — | Compare → |
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
Explore
Ford siblings
Explore
Similar-spec models
Gallery

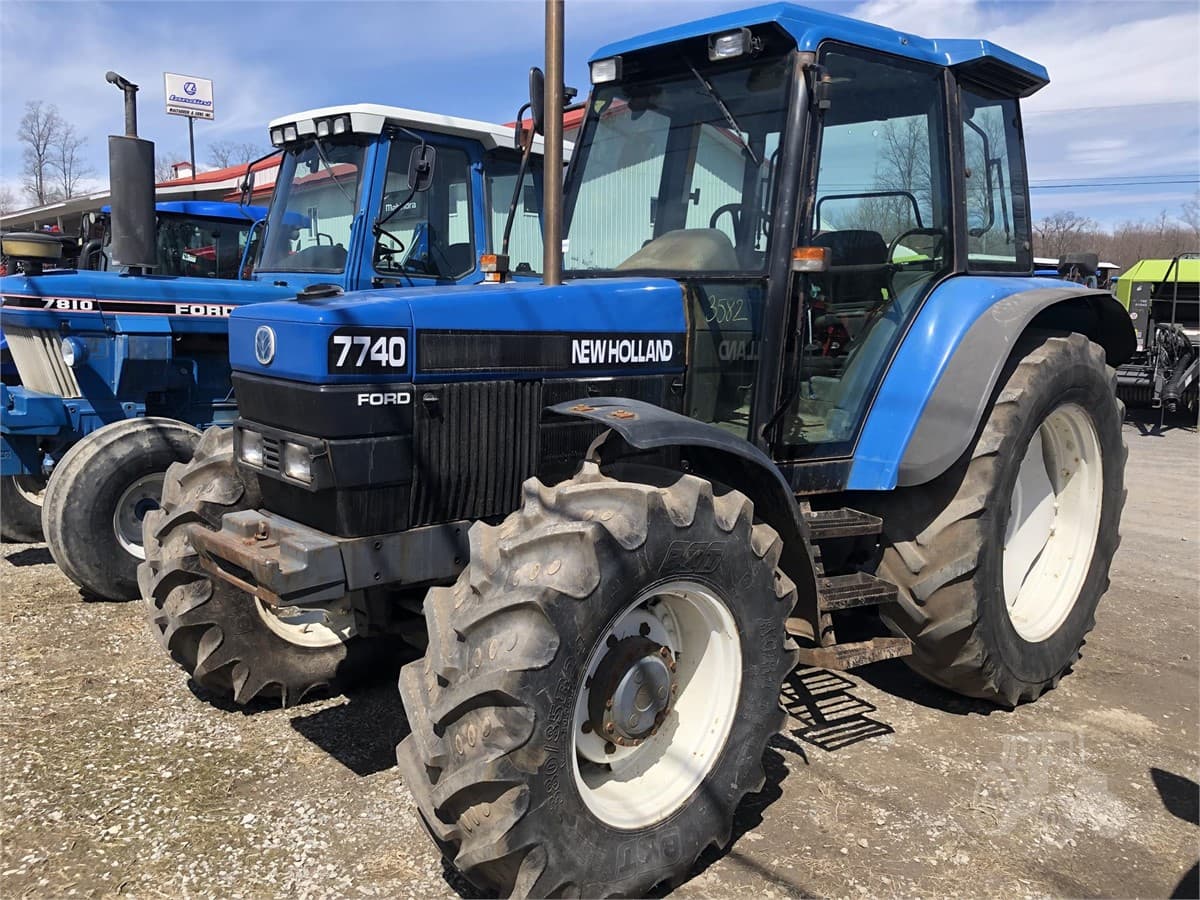

Ford 7740 photos
FAQ
Common questions
What years was the Ford 7740 manufactured?
Production of the Ford 7740 ran from 1991 through 1995.
What type of transmission does the Ford 7740 have?
The Ford 7740 uses a Constant mesh transmission offering 8 forward gears.
What hydraulics does the Ford 7740 have?
The Ford 7740 uses an Open center hydraulic system.
What three-point hitch category does the Ford 7740 use?
The Ford 7740 has a Category II three-point hitch.
How powerful is the Ford 7740?
The Ford 7740 has an engine power output of 86.2 hp. It is powered by a 4-cylinder engine displacing 304 ci.
What is the working weight of the Ford 7740?
The operating weight of the Ford 7740 is approximately 8,679.6 lb.
What routine service does the Ford 7740 need?
Regular maintenance for the Ford 7740 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
