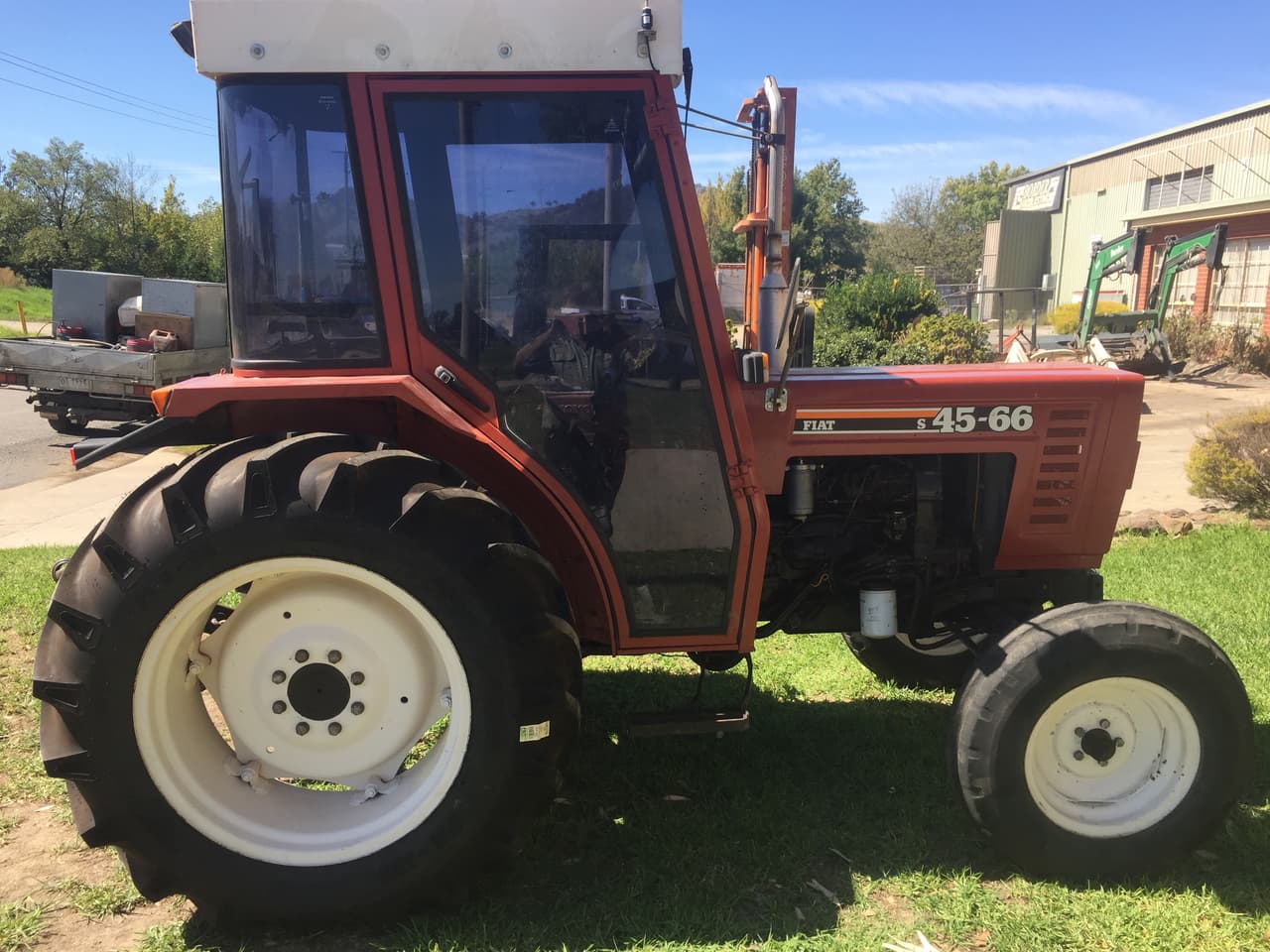

Fiat 45-66S
The Fiat 45-66S is a utility tractor built for everyday farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a versatile transmission that offers 20 forward gears and 8 reverse gears, giving farmers lots of options for different tasks. Under the hood, the Fiat 45-66S has an Iveco 8035.06 engine. This diesel engine has 3 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It produces 44.4 hp at 2500 rpm, which is about average power for its class. The engine size is also average compared to other tractors. The tractor weighs 4685 lb, which is a mid-range weight for utility tractors. It measures 117.1 inches long, 57.1 inches wide, and 88.4 inches tall, with a hood width of 50 inches.

Key specifications
- Category
- Utility
- Engine power
- 44hp
- Operating weight
- 4,685 lb
- Transmission
- Multiple (Gear, Shuttle, Creeper)
Category comparison
45-66S compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 45-66S ranks at the 38th percentile for engine power among recorded utility tractors.
Overview
About the Fiat 45-66S
The Fiat 45-66S is a utility tractor built for everyday farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a versatile transmission that offers 20 forward gears and 8 reverse gears, giving farmers lots of options for different tasks. Under the hood, the Fiat 45-66S has an Iveco 8035.06 engine. This diesel engine has 3 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It produces 44.4 hp at 2500 rpm, which is about average power for its class. The engine size is also average compared to other tractors. The tractor weighs 4685 lb, which is a mid-range weight for utility tractors. It measures 117.1 inches long, 57.1 inches wide, and 88.4 inches tall, with a hood width of 50 inches.
Full specifications
Recorded specifications
General
| Manufacturer | Fiat |
|---|---|
| Model | 45-66S |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 4,685lb(2,125 kg) |
Engine
| Make | Iveco |
|---|---|
| Model | 8035.06 |
| Power | 44.4hp(33.11 kW) |
| Cylinders | 3 |
| Displacement | 165.4ci(2.71 L) |
| Bore | 3.94in(100.1 mm) |
| Stroke | 4.53in(115.1 mm) |
Transmission
| Type | Multiple (Gear, Shuttle, Creeper) |
|---|---|
| Forward gears | 20 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | Open/Cab |
Dimensions
| Length | 117.1in(2,974 mm) |
|---|---|
| Width | 57.1in(1,450 mm) |
| Height | 88.4in(2,245 mm) |
| Operating weight | 4,685lb(2,125 kg) |
Closest alternatives
45-66S compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 45-66S are the Fiat 45-66 and the Iseki TL4500. The Fiat 45-66 matches it on rated power and weighs 430 lb less, carrying 96 lb per horsepower against 106 lb. The Iseki TL4500 matches it on rated power and weighs 890 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the 45-66S has the highest weight per horsepower at 106 lb per hp.
| Spec | Fiat 45-66S | Fiat 45-66 | Iseki TL4500 |
|---|---|---|---|
| Engine power | 44.4 hp33.1 kW | 44.4 hp33.1 kW | 44.4 hp33.1 kW |
| Operating weight | 4,685 lb2,125 kg | 4,255 lb1,930 kg | 3,792 lb1,720 kg |
| Weight per hp | 106 lb/hp64 kg/kW | 96 lb/hp58 kg/kW | 85 lb/hp52 kg/kW |
| Displacement | 165.4 ci2.71 L | 165.4 ci2.71 L | 144.6 ci2.37 L |
| Cylinders | 3 | 3 | 4 |
| Transmission | Multiple (Gear, Shuttle, Creeper) | Manual | Manual |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the 45-66S
PTO power
About 37 to 40 PTO hp
Estimated from the 44.4 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 44.4 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
123 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
44.4 hp is 33.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Fiat 45-66S
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Iveco 8035.06Amazon
Fits the Iveco 8035.06 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Iveco 8035.06Amazon
Fits the Iveco 8035.06 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Iveco 8035.06Amazon
Fits the Iveco 8035.06 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Iveco 8035.06Amazon
Fits the Iveco 8035.06 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Fiat 45-66S service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Fiat 45-66S operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Fiat 45-66S service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
45-66S vs. Utility median
Fiat 45-66S compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 44.4 hp | 55 hp | -19% | 38th |
| Engine Displacement | 165 ci | 183 ci | -10% | 44th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 20 | 12 | +67% | 86th |
| Operating Weight | 4,685 lb | 5,303 lb | -12% | 45th |
| Length | 117 in | 137 in | -14% | 23rd |
| Width | 57.1 in | 66 in | -13% | 31st |
| Height | 88.4 in | 94.1 in | -6% | 38th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Fiat models
Other manufacturers
Models with similar horsepower
Gallery
Fiat 45-66S photos






FAQ
Frequently asked questions
How powerful is the Fiat 45-66S?
The Fiat 45-66S has an engine power output of 44.4 hp. It is powered by a 3-cylinder engine displacing 165.4 ci.
What is the working weight of the Fiat 45-66S?
The operating weight of the Fiat 45-66S is approximately 4,685 lb.
What type of transmission does the Fiat 45-66S have?
The Fiat 45-66S uses a Multiple (Gear, Shuttle, Creeper) transmission offering 20 forward gears.
What routine service does the Fiat 45-66S need?
Regular maintenance for the Fiat 45-66S includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
