Fiat 90-90
The Fiat 90-90 is a sturdy 2WD tractor built for farm work. It has a 4x2 chassis and runs on a Fiat 8055.05 diesel engine. This engine has 5 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It's liquid-cooled to keep it running smoothly. The engine puts out 90 hp at 2500 rpm, giving it good power for many farm tasks. This tractor has a synchronized transmission with 15 forward gears and 3 reverse gears. This gives the driver lots of options for different speeds and jobs. The Fiat 90-90 is 151.6 inches long and 102.4 inches tall. It weighs 8533 lb, making it a solid machine. It has agricultural tires on both front and back wheels. The tractor has an open center hydraulic system and an open operator station. The wheelbase is 97.2 inches, and it uses a dry disc clutch. Overall, the Fiat 90-90 is a dependable tractor for everyday farm use.
ManufacturerFiatPower90 hpEngine5-cylTransSynchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 90hp
- Operating Weight
- 8,533 lb
- Transmission
- Synchronized
At a glance
How the 90-90 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
90 hp · 78th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 90-90 ranks at the 78th percentile for engine power among recorded utility tractors.
Overview
About the Fiat 90-90
The Fiat 90-90 is a sturdy 2WD tractor built for farm work. It has a 4x2 chassis and runs on a Fiat 8055.05 diesel engine. This engine has 5 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It's liquid-cooled to keep it running smoothly. The engine puts out 90 hp at 2500 rpm, giving it good power for many farm tasks. This tractor has a synchronized transmission with 15 forward gears and 3 reverse gears. This gives the driver lots of options for different speeds and jobs. The Fiat 90-90 is 151.6 inches long and 102.4 inches tall. It weighs 8533 lb, making it a solid machine. It has agricultural tires on both front and back wheels. The tractor has an open center hydraulic system and an open operator station. The wheelbase is 97.2 inches, and it uses a dry disc clutch. Overall, the Fiat 90-90 is a dependable tractor for everyday farm use.
Full specifications
Every recorded spec
General
| Manufacturer | Fiat |
|---|---|
| Model | 90-90 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 8,533lb |
Engine
| Make | Fiat |
|---|---|
| Model | 8055.05 |
| Power | 90hp |
| Cylinders | 5 |
| Displacement | 298.1ci |
| Bore | 4.1in |
| Stroke | 4.53in |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 15 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Cab | Open |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 151.6in |
|---|---|
| Height | 102.4in |
| Operating weight | 8,533lb |
Head to head
90-90 vs. Utility median
How the Fiat 90-90 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 90 hp | 55 hp | +64% | 78th |
| Engine Displacement | 298 ci | 183 ci | +63% | 84th |
| Cylinders | 5 | 4 | +25% | 88th |
| Forward Gears | 15 | 12 | +25% | 64th |
| Operating Weight | 8,533 lb | 5,303 lb | +61% | 79th |
| Length | 152 in | 137 in | +11% | 67th |
| Height | 102 in | 94.1 in | +9% | 72nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Fiat tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fiat 880 | 88 hp | 7,100 lb | — | Compare → |
| Fiat 955C | 88 hp | 13,051 lb | — | Compare → |
| Fiat 85-90 | 85 hp | 6,945 lb | — | Compare → |
| Fiat 850 | 85 hp | 6,835 lb | — | Compare → |
| Fiat 88-94 | 85 hp | 7,782 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 6080 | 93 hp | 6,500 lb | 1980–1985 | Compare → |
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
Explore
Fiat siblings
Explore
Similar-spec models
Gallery

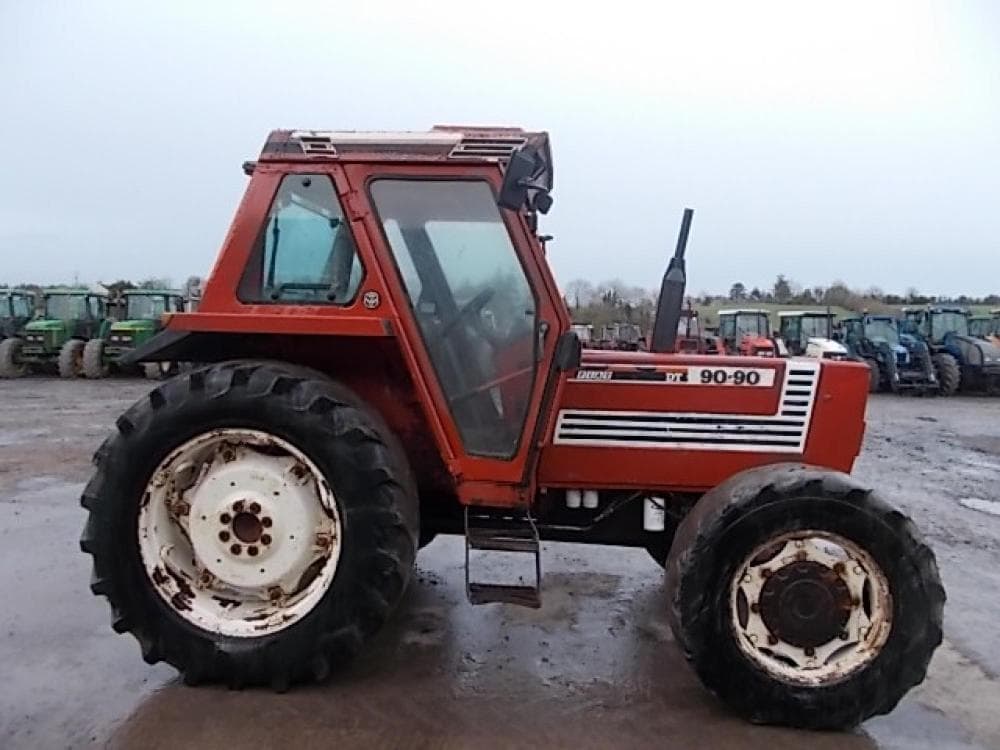

Fiat 90-90 photos
FAQ
Common questions
How much horsepower does the Fiat 90-90 have?
The Fiat 90-90 produces 90 hp from its 5-cylinder engine. Engine displacement is 298.1 ci.
How much does the Fiat 90-90 weigh?
The Fiat 90-90 weighs about 8,533 lb in operating condition.
What transmission is in the Fiat 90-90?
Transmission on the Fiat 90-90 is Synchronized, with 15 forward speeds.
What hydraulics does the Fiat 90-90 have?
The Fiat 90-90 uses an Open Center hydraulic system.
What maintenance does the Fiat 90-90 require?
Like any tractor, the Fiat 90-90 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
