Utility tractorsSpec sheet
Ford 1900
The Ford 1900 is a utility tractor made from 1979 to 1983. It's a compact machine, measuring 118.9 inches long, 57.7 inches wide, and 86.3 inches tall. This tractor is built for various farm tasks and has a 2WD drive system with manual steering. Under the hood, the Ford 1900 has a Shibaura LEM853 diesel engine. This engine has 3 cylinders and is naturally aspirated, meaning it doesn't use a turbocharger. It produces 30 hp at 2800 rpm, which is below average power for tractors. The engine size is 87.2 cubic inches, which is also smaller than most tractors. However, its high rpm rating stands out, being very high compared to other tractors. The Ford 1900 weighs 2689 pounds, which is on the lighter side for tractors. It has a 12-speed forward and 4-speed reverse transmission, giving farmers plenty of options for different jobs. The tractor also features a rear PTO that runs at 540 rpm, useful for powering attachments.
Key specifications
- Category
- Utility
- Engine power
- 30hp
- Operating weight
- 2,689 lb
- Transmission
- Gear shift
Category comparison
1900 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
30 hp · 22nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1900 ranks at the 22nd percentile for engine power among recorded utility tractors.
Overview
About the Ford 1900
The Ford 1900 is a utility tractor made from 1979 to 1983. It's a compact machine, measuring 118.9 inches long, 57.7 inches wide, and 86.3 inches tall. This tractor is built for various farm tasks and has a 2WD drive system with manual steering. Under the hood, the Ford 1900 has a Shibaura LEM853 diesel engine. This engine has 3 cylinders and is naturally aspirated, meaning it doesn't use a turbocharger. It produces 30 hp at 2800 rpm, which is below average power for tractors. The engine size is 87.2 cubic inches, which is also smaller than most tractors. However, its high rpm rating stands out, being very high compared to other tractors. The Ford 1900 weighs 2689 pounds, which is on the lighter side for tractors. It has a 12-speed forward and 4-speed reverse transmission, giving farmers plenty of options for different jobs. The tractor also features a rear PTO that runs at 540 rpm, useful for powering attachments.
Full specifications
Recorded specifications
General
| Manufacturer | Ford |
|---|---|
| Model | 1900 |
| Category | Utility tractor |
| Type | 2WD |
| Years built | 1979–1983 |
| Operating weight | 2,689lb(1,220 kg) |
Engine
| Make | Shibaura |
|---|---|
| Model | LEM853 |
| Power | 30hp(22.37 kW) |
| Cylinders | 3 |
| Displacement | 87.2ci(1.43 L) |
| Bore | 3.35in(85.09 mm) |
| Stroke | 3.31in(84.07 mm) |
Transmission
| Type | Gear shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Drive | 2WD |
|---|---|
| Steering | Manual |
| Brakes | Differential mechanical drum |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Rear, transmission |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 118.9in(3,020 mm) |
|---|---|
| Width | 57.7in(1,466 mm) |
| Height | 86.3in(2,192 mm) |
| Operating weight | 2,689lb(1,220 kg) |
Capacities
| Cooling system | 1.8gal(6.81 L) |
|---|
Closest alternatives
1900 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 1900 are the Kubota B3000 and the Bobcat CT230. The Kubota B3000 matches it on rated power and weighs 420 lb less, carrying 76 lb per horsepower against 90 lb. It entered production in 2010, 31 years after the 1900. The Bobcat CT230 matches it on rated power and weighs 370 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 2008, 29 years after the 1900.
| Spec | Ford 1900 | Kubota B3000 | Bobcat CT230 |
|---|---|---|---|
| Engine power | 30 hp22.4 kW | 30 hp22.4 kW | 30 hp22.4 kW |
| Operating weight | 2,689 lb1,220 kg | 2,271 lb1,030 kg | 3,056 lb1,386 kg |
| Weight per hp | 90 lb/hp55 kg/kW | 76 lb/hp46 kg/kW | 102 lb/hp62 kg/kW |
| Displacement | 87.2 ci1.43 L | 91.4 ci1.5 L | 91.5 ci1.5 L |
| Cylinders | 3 | 4 | 3 |
| Transmission | Gear shift | Hydrostatic | Hydrostatic |
| Drive | 2WD | 4WD | MFWD 4WD |
| Years built | 1979-1983 | 2010-2013 | 2008-2013 |
Calculators
Calculators for the 1900
PTO power
About 25 to 27 PTO hp
Estimated from the 30 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 30 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
104 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
30 hp is 22.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
1900 vs. Utility median
Ford 1900 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 30 hp | 55 hp | -45% | 22nd |
| Engine Displacement | 87.2 ci | 183 ci | -52% | 15th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,689 lb | 5,303 lb | -49% | 19th |
| Length | 119 in | 137 in | -13% | 25th |
| Width | 57.7 in | 66 in | -13% | 33rd |
| Height | 86.3 in | 94.1 in | -8% | 35th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Ford models
Other manufacturers
Models with similar horsepower

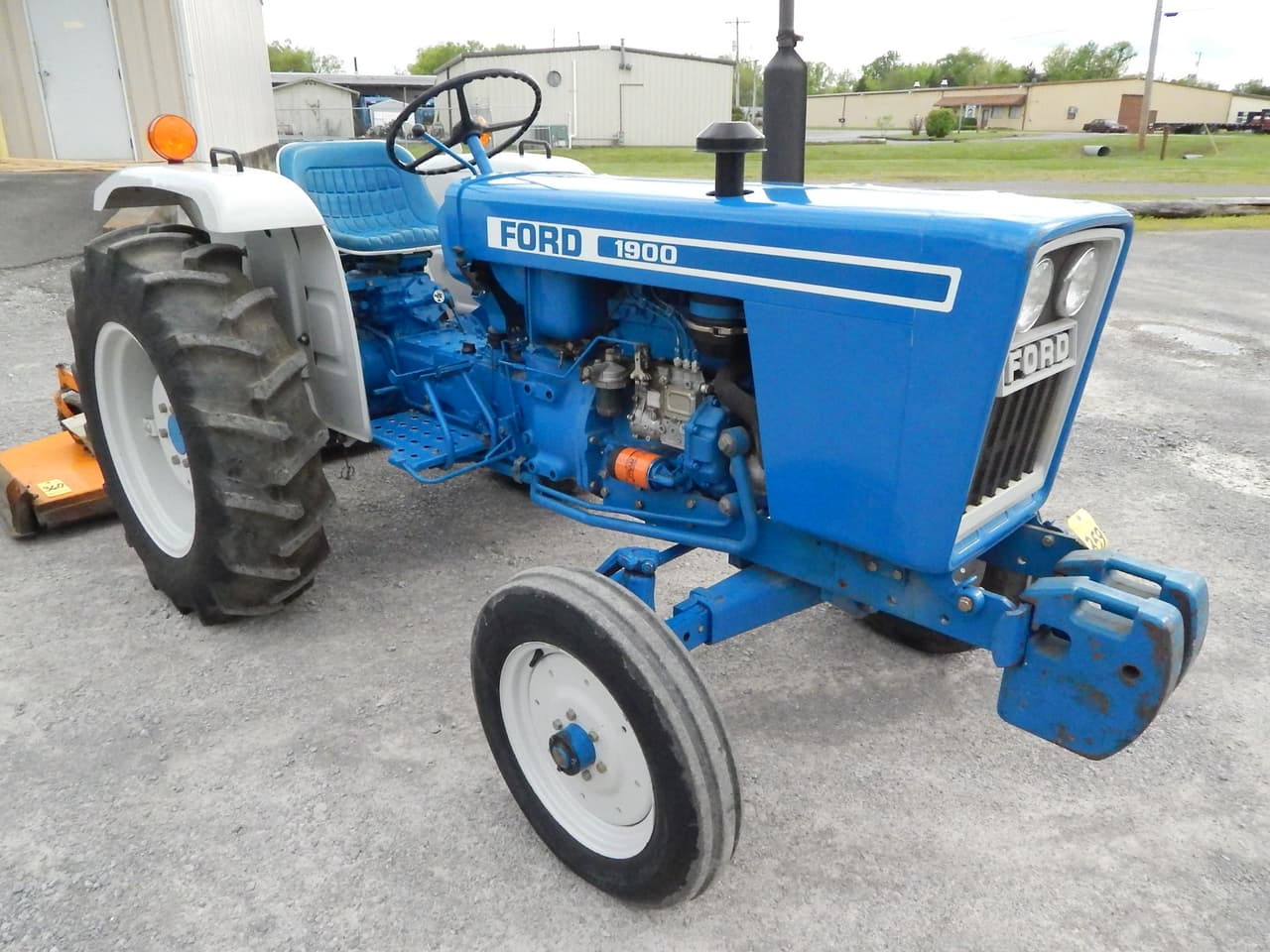

Gallery
Ford 1900 photos
FAQ
Frequently asked questions
When was the Ford 1900 in production?
Ford 1900 production started in 1979 and ended in 1983.
What transmission is in the Ford 1900?
Transmission on the Ford 1900 is Gear shift, with 12 forward speeds.
What hydraulics does the Ford 1900 have?
The Ford 1900 uses an Open center hydraulic system.
How much horsepower does the Ford 1900 have?
The Ford 1900 produces 30 hp from its 3-cylinder engine. Engine displacement is 87.2 ci.
How much does the Ford 1900 weigh?
The Ford 1900 weighs about 2,689 lb in operating condition.
What maintenance does the Ford 1900 require?
The Ford 1900 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
