UtilityPerformance profile

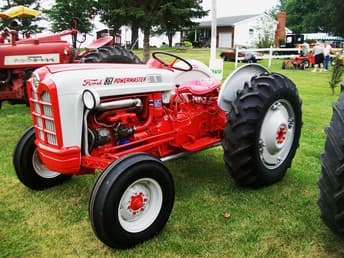

Ford 861 Powermaster
The Ford 861 Powermaster is a utility tractor that was made from 1958 to 1962. It's a 2WD tractor with a manual steering system and a 5-speed transmission. This tractor is built for farm work and can handle many tasks. Under the hood, the 861 Powermaster has a Ford EAF engine. It's a 4-cylinder gasoline engine that's liquid-cooled. The engine has average displacement at 172 ci and can produce 62.6 hp, which is above average for tractors of its time. It has a live PTO that spins at 540 rpm, making it useful for running farm equipment. The tractor weighs 3,439 lb and can lift up to 1,250 lb with its hitch, which is about average for its class. It has an open operator station and runs on agricultural tires, with different sizes for the front and back.
ManufacturerFordPower62.6 hpEngine4-cylTransUnsynchronized Gear
Quick specs
- Category
- Utility
- Engine Power Output
- 63hp
- Operating Weight
- 3,439 lb
- Transmission
- Unsynchronized Gear
At a glance
How the 861 Powermaster compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
62.6 hp · 56th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 861 Powermaster ranks at the 56th percentile for engine power among recorded utility tractors.
Overview
About the Ford 861 Powermaster
The Ford 861 Powermaster is a utility tractor that was made from 1958 to 1962. It's a 2WD tractor with a manual steering system and a 5-speed transmission. This tractor is built for farm work and can handle many tasks. Under the hood, the 861 Powermaster has a Ford EAF engine. It's a 4-cylinder gasoline engine that's liquid-cooled. The engine has average displacement at 172 ci and can produce 62.6 hp, which is above average for tractors of its time. It has a live PTO that spins at 540 rpm, making it useful for running farm equipment. The tractor weighs 3,439 lb and can lift up to 1,250 lb with its hitch, which is about average for its class. It has an open operator station and runs on agricultural tires, with different sizes for the front and back.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | 861 Powermaster |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1958–1962 |
| Operating weight | 3,439lb |
Engine
| Make | Ford |
|---|---|
| Model | EAF |
| Power | 62.6hp |
| Cylinders | 4 |
| Displacement | 172ci |
| Bore | 3.9in |
| Stroke | 3.58in |
Transmission
| Type | Unsynchronized Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential Mechanical Expanding Shoe |
| Cab | Open |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Live PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 120.5in |
|---|---|
| Width | 63.8in |
| Height | 57.1in |
| Operating weight | 3,439lb |
Capacities
| Cooling system | 3.75gal |
|---|
Head to head
861 Powermaster vs. Utility median
How the Ford 861 Powermaster compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 62.6 hp | 55 hp | +14% | 56th |
| Engine Displacement | 172 ci | 183 ci | -6% | 46th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 5 | 12 | -58% | 6th |
| Operating Weight | 3,439 lb | 5,303 lb | -35% | 29th |
| Length | 121 in | 137 in | -12% | 27th |
| Width | 63.8 in | 66 in | -3% | 44th |
| Height | 57.1 in | 94.1 in | -39% | 8th |
| 3-Point Hitch Capacity | 1,250 lb | 3,197 lb | -61% | 9th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Barreiros R-500 B | 60 hp | — | — | Compare → |
Explore
Ford siblings
Explore
Similar-spec models
Gallery
Ford 861 Powermaster photos
FAQ
Common questions
When was the Ford 861 Powermaster in production?
Ford 861 Powermaster production started in 1958 and ended in 1962.
How much does the Ford 861 Powermaster weigh?
The Ford 861 Powermaster weighs about 3,439 lb in operating condition.
What transmission is in the Ford 861 Powermaster?
Transmission on the Ford 861 Powermaster is Unsynchronized Gear, with 5 forward speeds.
What type of hydraulic system does the Ford 861 Powermaster use?
Hydraulics on the Ford 861 Powermaster are Open Center.
How much horsepower does the Ford 861 Powermaster have?
The Ford 861 Powermaster produces 62.6 hp from its 4-cylinder engine. Engine displacement is 172 ci.
What maintenance does the Ford 861 Powermaster require?
Like any tractor, the Ford 861 Powermaster needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
