Row CropPerformance profile
Ford TW-5
The Ford TW-5 is a powerful row crop tractor built from 1983 to 1986. It has a 2-wheel drive system and a strong 6-cylinder diesel engine made by Ford. This engine can produce 125 horsepower, which is good for many farming tasks. The tractor has a liquid-cooled system to keep the engine running smoothly. One of the best things about the TW-5 is its transmission. It has 16 forward gears and 4 reverse gears, giving farmers lots of options for different jobs. The tractor also has a rear hitch that can lift up to 7,150 pounds, which is above average for its class. This makes it great for pulling heavy farm equipment. The TW-5 has both 540 and 1000 rpm PTO speeds, so it can work with many types of attachments. It also has power steering and hydraulic brakes, making it easier and safer to use. The Ford TW-5 is a big tractor, weighing 13,200 pounds. It's 163.2 inches long, 83.6 inches wide, and 112.7 inches tall. It has a two-post ROPS for safety and uses big agricultural tires. The tractor has some extra features like a hydraulic rear differential lock, which helps when working in muddy fields. Overall, the Ford TW-5 is a solid, versatile tractor that can handle many farm jobs with ease.
ManufacturerFordPower125 hpEngine6-cylTransPartial power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 125hp
- Operating Weight
- 13,200 lb
- Transmission
- Partial power shift
At a glance
How the TW-5 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
125 hp · 42nd
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The TW-5 ranks at the 42nd percentile for engine power among recorded row crop tractors.
Overview
About the Ford TW-5
The Ford TW-5 is a powerful row crop tractor built from 1983 to 1986. It has a 2-wheel drive system and a strong 6-cylinder diesel engine made by Ford. This engine can produce 125 horsepower, which is good for many farming tasks. The tractor has a liquid-cooled system to keep the engine running smoothly. One of the best things about the TW-5 is its transmission. It has 16 forward gears and 4 reverse gears, giving farmers lots of options for different jobs. The tractor also has a rear hitch that can lift up to 7,150 pounds, which is above average for its class. This makes it great for pulling heavy farm equipment. The TW-5 has both 540 and 1000 rpm PTO speeds, so it can work with many types of attachments. It also has power steering and hydraulic brakes, making it easier and safer to use. The Ford TW-5 is a big tractor, weighing 13,200 pounds. It's 163.2 inches long, 83.6 inches wide, and 112.7 inches tall. It has a two-post ROPS for safety and uses big agricultural tires. The tractor has some extra features like a hydraulic rear differential lock, which helps when working in muddy fields. Overall, the Ford TW-5 is a solid, versatile tractor that can handle many farm jobs with ease.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | TW-5 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1983–1986 |
| Operating weight | 13,200lb |
Engine
| Make | Ford |
|---|---|
| Model | Ford |
| Power | 125hp |
| Cylinders | 6 |
| Displacement | 401ci |
| Bore | 4.41in |
| Stroke | 4.41in |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Differential hydraulic wet disc |
| Cab | Two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 163.2in |
|---|---|
| Width | 83.6in |
| Height | 112.7in |
| Operating weight | 13,200lb |
Capacities
| Cooling system | 5.25gal |
|---|
Head to head
TW-5 vs. Row Crop median
How the Ford TW-5 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 125 hp | 138 hp | -9% | 42nd |
| Engine Displacement | 401 ci | 391 ci | +3% | 51st |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 13,200 lb | 12,307 lb | +7% | 57th |
| Length | 163 in | 180 in | -9% | 28th |
| Width | 83.6 in | 91.2 in | -8% | 33rd |
| Height | 113 in | 114 in | -1% | 47th |
| 3-Point Hitch Capacity | 7,150 lb | 11,023 lb | -35% | 24th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 279–1,417 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ford TW-10 | 123 hp | 12,865 lb | 1979–1983 | Compare → |
| Ford 8000 | 115.5 hp | 9,980 lb | 1968–1972 | Compare → |
| Ford 8100 | 115 hp | 9,078 lb | 1978–1981 | Compare → |
| Ford 6500 | 112 hp | — | — | Compare → |
| Ford TW-15 | 140 hp | 11,355 lb | 1983–1990 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 7020 | 123.79 hp | 11,770 lb | 1977–1981 | Compare → |
| Allis Chalmers HD11AG Series B | 126.5 hp | 25,000 lb | — | Compare → |
| AGCO RT100 | 128 hp | 15,055 lb | — | Compare → |
| AGCO RT115 | 121.4 hp | 12,900 lb | — | Compare → |
| Allis Chalmers D21 Series II | 121 hp | 9,502 lb | 1965–1969 | Compare → |
Explore
Ford siblings
Explore
Similar-spec models

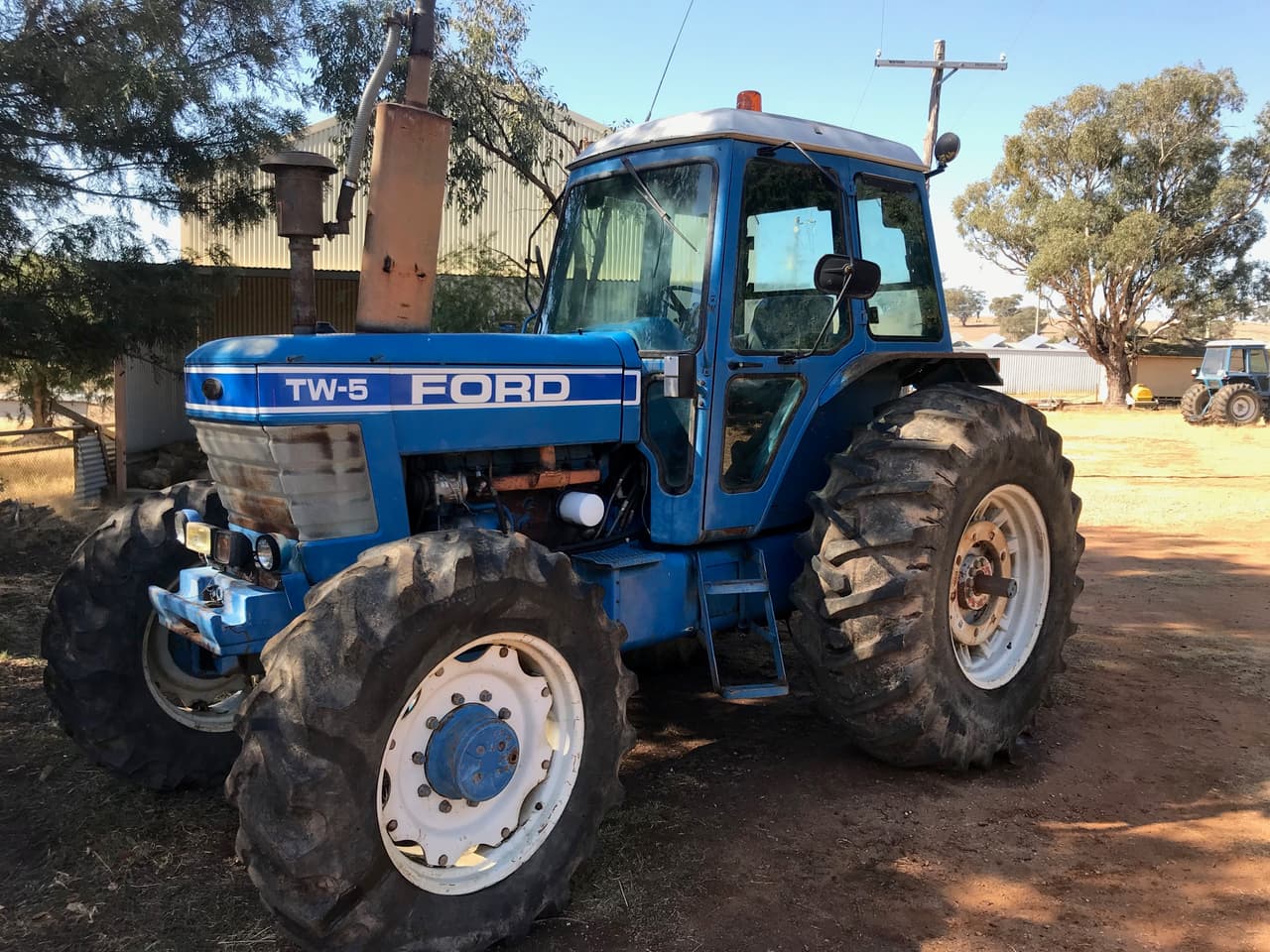

Gallery
Ford TW-5 photos
FAQ
Common questions
What years was the Ford TW-5 manufactured?
Production of the Ford TW-5 ran from 1983 through 1986.
How powerful is the Ford TW-5?
The Ford TW-5 has an engine power output of 125 hp. It is powered by a 6-cylinder engine displacing 401 ci.
What is the working weight of the Ford TW-5?
The operating weight of the Ford TW-5 is approximately 13,200 lb.
What type of transmission does the Ford TW-5 have?
The Ford TW-5 uses a Partial power shift transmission offering 16 forward gears.
What type of hydraulic system does the Ford TW-5 use?
Hydraulics on the Ford TW-5 are Open center.
What hitch category is the Ford TW-5?
The Ford TW-5 uses a Category II hitch with a lift capacity of 7,150 lb.
What routine service does the Ford TW-5 need?
Regular maintenance for the Ford TW-5 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
