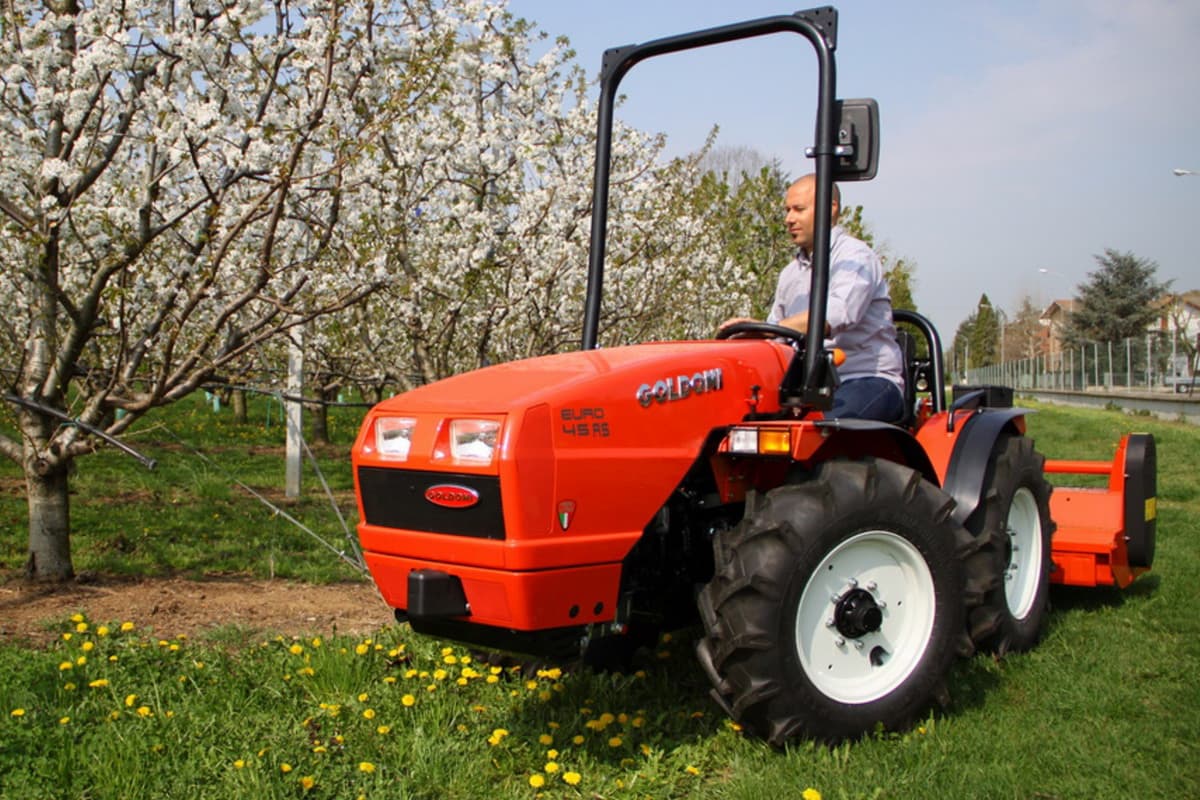

Goldini 45A

Last Updated: June 2024

Overview

The Goldini 45A is an articulated four-wheel-drive Orchard/Vineyard tractor designed to provide agility and maneuverability in tight spaces commonly found in orchards and vineyards. It comes with a six-speed manual transmission, offering six forward and three reverse gears, suggesting good control over varying terrain. The tractor is powered by a Lombardini CHD 1603 diesel engine that delivers 38 horsepower at a rated RPM of 2800 and utilizes a liquid-cooling system to manage engine temperatures. The 3-cylinder engine has a displacement of 100.7 cubic inches and features a dry air cleaner. Furthermore, this model includes an electric starter and operates on 12 volts. The detailed information about this tractor ensures that owners understand their equipment's capabilities and specifications, enabling them to optimize its use in agricultural settings.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 38

Transmission: Manual

Drive Type: 4WD

Fuel Type: Diesel

Goldini 45A vs. Similar Tractors

Power Output
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
Lombardini
Model
CHD 1603
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
100.7
Bore (in)
3.46
Stroke (in)
3.54
Rated RPM
2800
Power Output (hp)
38

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
