UtilityPerformance profile

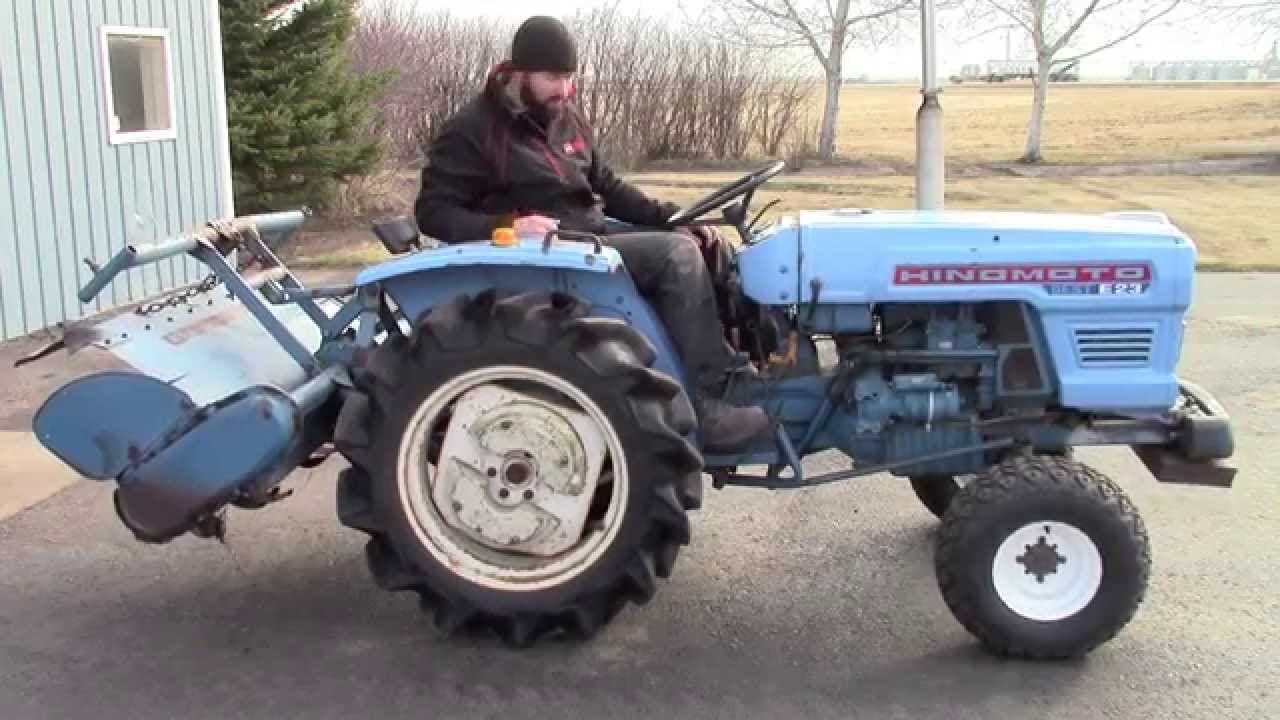

Hinomoto E23
The Hinomoto E23 is a compact utility tractor designed for small farms and light-duty work. It's a 2WD model with a mechanical steering system, making it easy to handle in tight spaces. The tractor measures 101 inches long, 48 inches wide, and 52 inches tall, with a weight of 2048 lb. This small size makes it perfect for working in orchards or small fields. Under the hood, the E23 has a Toyosha P126 diesel engine with two cylinders. The engine is liquid-cooled and naturally aspirated, providing 23 hp of power. While the engine size and power are below average compared to other tractors, they're well-suited for the E23's compact design. The tractor features a gear transmission with 12 forward and 3 reverse speeds, giving operators plenty of options for different tasks. It also has a rear PTO with three speed settings: 547, 875, and 1000 rpm. The E23 comes with a Category 1 three-point hitch at the rear, allowing it to use various attachments for different jobs around the farm.
ManufacturerHinomotoPower23 hpEngine2-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 23hp
- Operating Weight
- 2,048 lb
- Transmission
- Gear
At a glance
How the E23 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
23 hp · 12th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The E23 ranks at the 12th percentile for engine power among recorded utility tractors.
Overview
About the Hinomoto E23
The Hinomoto E23 is a compact utility tractor designed for small farms and light-duty work. It's a 2WD model with a mechanical steering system, making it easy to handle in tight spaces. The tractor measures 101 inches long, 48 inches wide, and 52 inches tall, with a weight of 2048 lb. This small size makes it perfect for working in orchards or small fields. Under the hood, the E23 has a Toyosha P126 diesel engine with two cylinders. The engine is liquid-cooled and naturally aspirated, providing 23 hp of power. While the engine size and power are below average compared to other tractors, they're well-suited for the E23's compact design. The tractor features a gear transmission with 12 forward and 3 reverse speeds, giving operators plenty of options for different tasks. It also has a rear PTO with three speed settings: 547, 875, and 1000 rpm. The E23 comes with a Category 1 three-point hitch at the rear, allowing it to use various attachments for different jobs around the farm.
Full specifications
Every recorded spec
General
| Manufacturer | Hinomoto |
|---|---|
| Model | E23 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 2,048lb |
Engine
| Make | Toyosha |
|---|---|
| Model | P126 |
| Power | 23hp |
| Cylinders | 2 |
| Displacement | 77.1ci |
| Bore | 3.62in |
| Stroke | 3.74in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Mechanical |
| Brakes | Mechanical Drum and Shoe |
| Cab | Open |
Power take-off
| Rear PTO | Rear |
|---|---|
| PTO speed | 547rpm |
Dimensions
| Length | 101in |
|---|---|
| Width | 48in |
| Height | 52in |
| Operating weight | 2,048lb |
Head to head
E23 vs. Utility median
How the Hinomoto E23 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23 hp | 55 hp | -58% | 12th |
| Engine Displacement | 77.1 ci | 183 ci | -58% | 11th |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,048 lb | 5,303 lb | -61% | 13th |
| Length | 101 in | 137 in | -26% | 9th |
| Width | 48 in | 66 in | -27% | 14th |
| Height | 52 in | 94.1 in | -45% | 4th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Hinomoto tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hinomoto 9523 | 23 hp | 1,825 lb | 1978–1983 | Compare → |
| Hinomoto E2304 | 22.7 hp | 2,253 lb | — | Compare → |
| Hinomoto NX240 | 23.7 hp | 2,436 lb | — | Compare → |
| Hinomoto E2204 | 22 hp | — | — | Compare → |
| Hinomoto E224 | 21.7 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
Explore
Hinomoto siblings
Explore
Similar-spec models
Gallery
Hinomoto E23 photos
FAQ
Common questions
What is the engine power output of the Hinomoto E23?
Rated engine output for the Hinomoto E23 is 23 hp, delivered by a 2-cylinder engine. The engine displaces 77.1 ci.
Which transmission does the Hinomoto E23 use?
The Hinomoto E23 is equipped with a Gear transmission with 12 forward gears.
What three-point hitch category does the Hinomoto E23 use?
The Hinomoto E23 has a Category Category 1 three-point hitch.
What is the operating weight of the Hinomoto E23?
In working trim, the Hinomoto E23 comes in at roughly 2,048 lb.
How do I maintain a Hinomoto E23?
Routine service for the Hinomoto E23 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
