AgriculturalPerformance profile
Hurlimann H-4105 Elite
The Hurlimann H-4105 Elite is a powerful 2WD tractor designed for serious farm work. It features a SAME diesel engine with 4 cylinders and 103 horsepower. This engine packs a punch, delivering 265.5 lb-ft of torque at 1250 RPM, which means it can handle tough jobs with ease. One of the standout features of this tractor is its impressive transmission. With 40 forward gears and 40 reverse gears, giving a total of 80 gears, farmers have plenty of options to find the perfect speed for any task. The H-4105 Elite also comes with hydrostatic power steering, making it easy to control despite its size. At 160.63 inches long and 103.15 inches tall, with a weight of 8,246 pounds, this is a substantial machine. It's equipped with agricultural tires both front and rear, and features a Category 3 hitch, allowing it to work with a wide range of farm implements.
ManufacturerHurlimannPower103 hpEngine4-cyl
Quick specs
- Category
- Agricultural
- Engine Power Output
- 103hp
- Operating Weight
- 8,246 lb
At a glance
How the H-4105 Elite compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
103 hp · 47th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The H-4105 Elite ranks at the 47th percentile for engine power among recorded agricultural tractors.
Overview
About the Hurlimann H-4105 Elite
The Hurlimann H-4105 Elite is a powerful 2WD tractor designed for serious farm work. It features a SAME diesel engine with 4 cylinders and 103 horsepower. This engine packs a punch, delivering 265.5 lb-ft of torque at 1250 RPM, which means it can handle tough jobs with ease. One of the standout features of this tractor is its impressive transmission. With 40 forward gears and 40 reverse gears, giving a total of 80 gears, farmers have plenty of options to find the perfect speed for any task. The H-4105 Elite also comes with hydrostatic power steering, making it easy to control despite its size. At 160.63 inches long and 103.15 inches tall, with a weight of 8,246 pounds, this is a substantial machine. It's equipped with agricultural tires both front and rear, and features a Category 3 hitch, allowing it to work with a wide range of farm implements.
Full specifications
Every recorded spec
General
| Manufacturer | Hurlimann |
|---|---|
| Model | H-4105 Elite |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 8,246lb |
Engine
| Make | SAME |
|---|---|
| Power | 103hp |
| Cylinders | 4 |
| Displacement | 244.08ci |
| Bore | 4.13in |
| Stroke | 4.55in |
Transmission
| Forward gears | 40 |
|---|---|
| Reverse gears | 40 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 160.63in |
|---|---|
| Height | 103.15in |
| Operating weight | 8,246lb |
Head to head
H-4105 Elite vs. Agricultural median
How the Hurlimann H-4105 Elite compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 103 hp | 110 hp | -6% | 47th |
| Engine Displacement | 244 ci | 336 ci | -27% | 27th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 40 | 16 | +150% | 96th |
| Operating Weight | 8,246 lb | 10,914 lb | -24% | 33rd |
| Length | 161 in | 173 in | -7% | 39th |
| Height | 103 in | 111 in | -7% | 32nd |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Hurlimann tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hurlimann 910.4 XT | 103 hp | 8,775 lb | — | Compare → |
| Hurlimann 910.6 XT | 105 hp | 9,459 lb | — | Compare → |
| Hurlimann H-5116 | 110 hp | 11,245 lb | — | Compare → |
| Hurlimann 909 XT | 95 hp | 8,555 lb | — | Compare → |
| Hurlimann H-496 | 95 hp | 8,511 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| Belarus 1052 | 105 hp | 7,209 lb | — | Compare → |
| Allis Chalmers 7010 | 105.77 hp | 11,260 lb | 1980–1981 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
Explore
Hurlimann siblings
Explore
Similar-spec models
Gallery

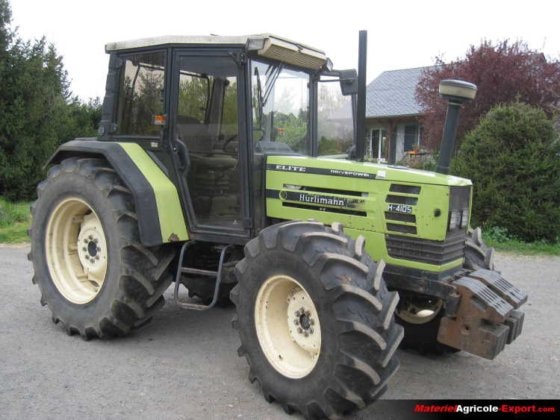

Hurlimann H-4105 Elite photos
FAQ
Common questions
How powerful is the Hurlimann H-4105 Elite?
The Hurlimann H-4105 Elite has an engine power output of 103 hp. It is powered by a 4-cylinder engine displacing 244.08 ci.
What is the working weight of the Hurlimann H-4105 Elite?
The operating weight of the Hurlimann H-4105 Elite is approximately 8,246 lb.
What three-point hitch category does the Hurlimann H-4105 Elite use?
The Hurlimann H-4105 Elite has a Category Category 3 three-point hitch.
What routine service does the Hurlimann H-4105 Elite need?
Regular maintenance for the Hurlimann H-4105 Elite includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
