Iseki TK538
The Iseki TK538 is a compact but powerful tractor designed for various farming tasks. It features a 40.5 hp diesel engine made by Iseki, with three cylinders and turbocharging for extra power. The engine is liquid-cooled, which helps it run smoothly in different weather conditions. With a displacement of 91.4 cubic inches, this tractor offers good performance for its size. This tractor comes with power steering, making it easy to control in tight spaces. It has a mechanical shuttle transmission with 16 forward and 16 reverse gears, giving the driver lots of options for different jobs. The TK538 is built to last, with a sturdy frame and agricultural tires on both front and back. It measures 118.9 inches long, 53.4 inches wide, and 57.1 inches high, making it compact enough for small farms but strong enough for bigger tasks. The tractor weighs 2,679 pounds and has a Category I hitch at the back for attaching various tools and implements.
ManufacturerIsekiPower40.5 hpEngine3-cylTransMechanical Shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 41hp
- Operating Weight
- 2,679 lb
- Transmission
- Mechanical Shuttle
At a glance
How the TK538 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
40.5 hp · 77th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The TK538 ranks at the 77th percentile for engine power among recorded sub-compact tractors.
Overview
About the Iseki TK538
The Iseki TK538 is a compact but powerful tractor designed for various farming tasks. It features a 40.5 hp diesel engine made by Iseki, with three cylinders and turbocharging for extra power. The engine is liquid-cooled, which helps it run smoothly in different weather conditions. With a displacement of 91.4 cubic inches, this tractor offers good performance for its size. This tractor comes with power steering, making it easy to control in tight spaces. It has a mechanical shuttle transmission with 16 forward and 16 reverse gears, giving the driver lots of options for different jobs. The TK538 is built to last, with a sturdy frame and agricultural tires on both front and back. It measures 118.9 inches long, 53.4 inches wide, and 57.1 inches high, making it compact enough for small farms but strong enough for bigger tasks. The tractor weighs 2,679 pounds and has a Category I hitch at the back for attaching various tools and implements.
Full specifications
Every recorded spec
General
| Manufacturer | Iseki |
|---|---|
| Model | TK538 |
| Category | Sub-Compact tractor |
| Operating weight | 2,679lb |
Engine
| Make | Iseki |
|---|---|
| Model | E3CD |
| Power | 40.5hp |
| Cylinders | 3 |
| Displacement | 91.4ci |
| Bore | 3.43in |
| Stroke | 3.31in |
Transmission
| Type | Mechanical Shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Steering | Power |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 118.9in |
|---|---|
| Width | 53.4in |
| Height | 57.1in |
| Operating weight | 2,679lb |
Head to head
TK538 vs. Sub-Compact median
How the Iseki TK538 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40.5 hp | 26.9 hp | +51% | 77th |
| Engine Displacement | 91.4 ci | 91.4 ci | at median | 50th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 16 | 9 | +78% | 89th |
| Operating Weight | 2,679 lb | 2,700 lb | -1% | 50th |
| Length | 119 in | 113 in | +5% | 58th |
| Width | 53.4 in | 50.7 in | +5% | 56th |
| Height | 57.1 in | 78.4 in | -27% | 18th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Iseki tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Iseki TA417 | 40.4 hp | 3,814 lb | — | Compare → |
| Iseki TS4010 | 41 hp | — | — | Compare → |
| Iseki TA437 | 42.4 hp | 3,428 lb | — | Compare → |
| Iseki TG6405 | 38.5 hp | — | — | Compare → |
| Iseki TA370 | 37 hp | 3,439 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
Explore
Iseki siblings
Explore
Similar-spec models
Gallery

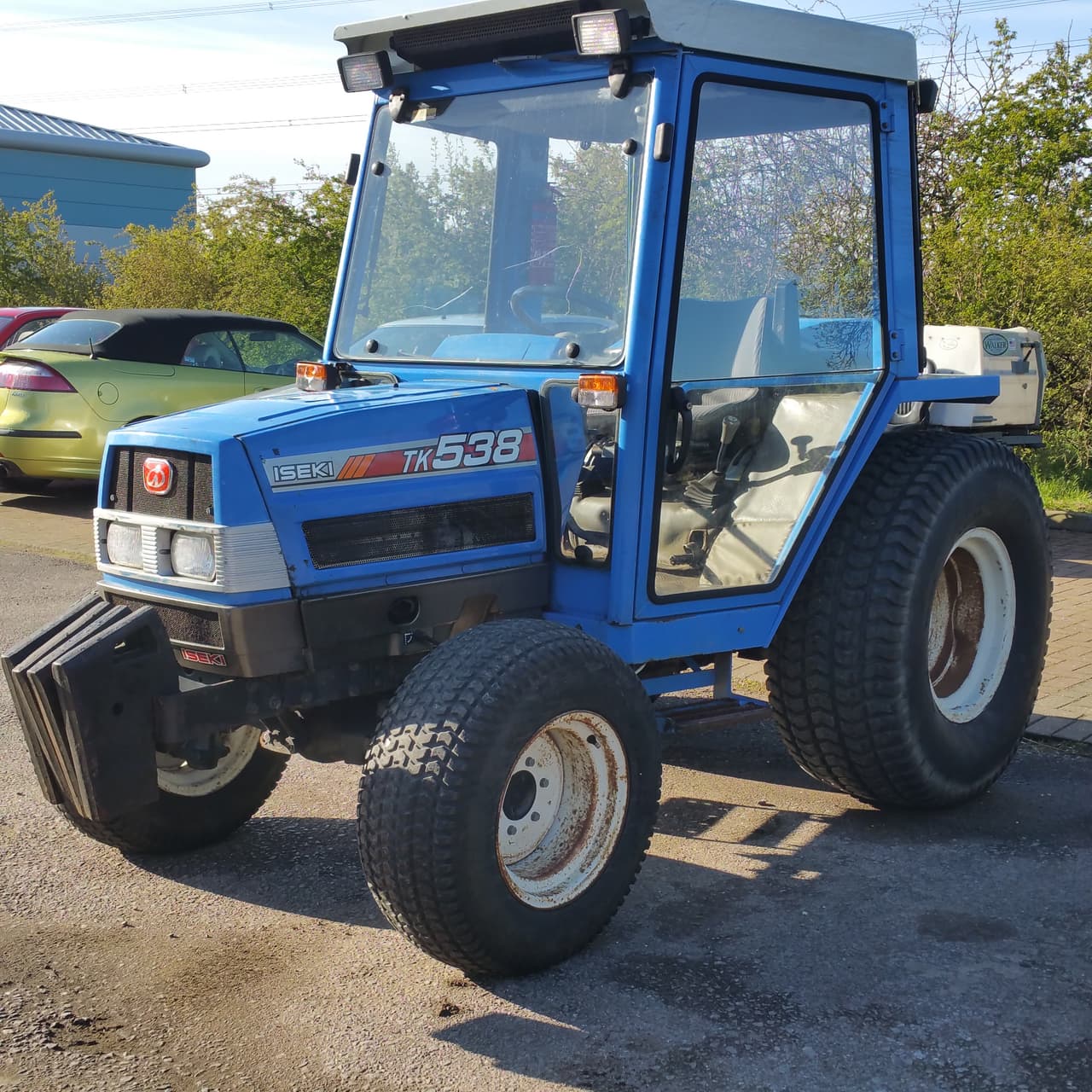

Iseki TK538 photos
FAQ
Common questions
How powerful is the Iseki TK538?
The Iseki TK538 has an engine power output of 40.5 hp. It is powered by a 3-cylinder engine displacing 91.4 ci.
What type of hydraulic system does the Iseki TK538 use?
Hydraulics on the Iseki TK538 are Open Center.
What is the working weight of the Iseki TK538?
The operating weight of the Iseki TK538 is approximately 2,679 lb.
What type of transmission does the Iseki TK538 have?
The Iseki TK538 uses a Mechanical Shuttle transmission offering 16 forward gears.
What routine service does the Iseki TK538 need?
Regular maintenance for the Iseki TK538 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
