Utility tractorsSpec sheet
John Deere 1030
The John Deere 1030 is a utility tractor built for everyday farm work. It has a 2WD drive system and a gear transmission with 16 forward and 8 reverse speeds. This tractor is powered by a John Deere diesel engine with 3 cylinders and liquid cooling. The engine has an average displacement of 164.4 ci and can produce 48.3 hp at 2500 rpm, which is also average for its class. This tractor is compact but sturdy, measuring 133 inches long, 65.9 inches wide, and 90.9 inches tall. It weighs 5954 lb, which is above average for similar tractors. The John Deere 1030 features a closed center hydraulic system and an electric starter for easy operation. It has a Category II/I hitch, making it versatile for different attachments. With its balanced mix of power and size, this tractor is well-suited for various farm tasks.
Key specifications
- Category
- Utility
- Engine power
- 48hp
- Operating weight
- 5,954 lb
- Transmission
- Gear
Category comparison
1030 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
48.3 hp · 43rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1030 ranks at the 43rd percentile for engine power among recorded utility tractors.
Overview
About the John Deere 1030
The John Deere 1030 is a utility tractor built for everyday farm work. It has a 2WD drive system and a gear transmission with 16 forward and 8 reverse speeds. This tractor is powered by a John Deere diesel engine with 3 cylinders and liquid cooling. The engine has an average displacement of 164.4 ci and can produce 48.3 hp at 2500 rpm, which is also average for its class. This tractor is compact but sturdy, measuring 133 inches long, 65.9 inches wide, and 90.9 inches tall. It weighs 5954 lb, which is above average for similar tractors. The John Deere 1030 features a closed center hydraulic system and an electric starter for easy operation. It has a Category II/I hitch, making it versatile for different attachments. With its balanced mix of power and size, this tractor is well-suited for various farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 1030 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,954lb(2,701 kg) |
Engine
| Make | John Deere |
|---|---|
| Power | 48.3hp(36.02 kW) |
| Cylinders | 3 |
| Displacement | 164.4ci(2.69 L) |
| Bore | 4.02in(102.1 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Hydraulics
| Type | Closed center |
|---|
Dimensions
| Length | 133in(3,378 mm) |
|---|---|
| Width | 65.9in(1,674 mm) |
| Height | 90.9in(2,309 mm) |
| Operating weight | 5,954lb(2,701 kg) |
Capacities
| Cooling system | 2.75gal(10.41 L) |
|---|
Closest alternatives
1030 compared with the nearest models by horsepower
The closest utility models to the John Deere 1030 by rated horsepower are the Massey Ferguson 1749 and the New Holland TN60A. The Massey Ferguson 1749 matches it on rated power and weighs 2,040 lb less, carrying 81 lb per horsepower against 123 lb. The New Holland TN60A matches it on rated power and weighs 170 lb less. Of the 3 models, the 1030 has the highest weight per horsepower at 123 lb per hp.
| Spec | John Deere 1030 | Massey Ferguson 1749 | New Holland TN60A |
|---|---|---|---|
| Engine power | 48.3 hp36 kW | 48.3 hp36 kW | 48.3 hp36 kW |
| Operating weight | 5,954 lb2,701 kg | 3,913 lb1,775 kg | 5,785 lb2,624 kg |
| Weight per hp | 123 lb/hp75 kg/kW | 81 lb/hp49 kg/kW | 120 lb/hp73 kg/kW |
| Displacement | 164.4 ci2.69 L | 101 ci1.66 L | 179 ci2.93 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | Power shuttle | Constant mesh with mechanical shuttle |
| Drive | 2WD | 4WD | 4x2 2WD |
| Years built | - | 2013-2018 | 2004-2008 |
Calculators
Calculators for the 1030
PTO power
About 40 to 43 PTO hp
Estimated from the 48.3 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 48.3 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
143 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
48.3 hp is 36.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 1030
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 1030 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- John Deere 1030 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- John Deere 1030 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
1030 vs. Utility median
John Deere 1030 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 48.3 hp | 55 hp | -12% | 43rd |
| Engine Displacement | 164 ci | 183 ci | -10% | 43rd |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 5,954 lb | 5,303 lb | +12% | 56th |
| Length | 133 in | 137 in | -3% | 45th |
| Width | 65.9 in | 66 in | 0% | 50th |
| Height | 90.9 in | 94.1 in | -3% | 42nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

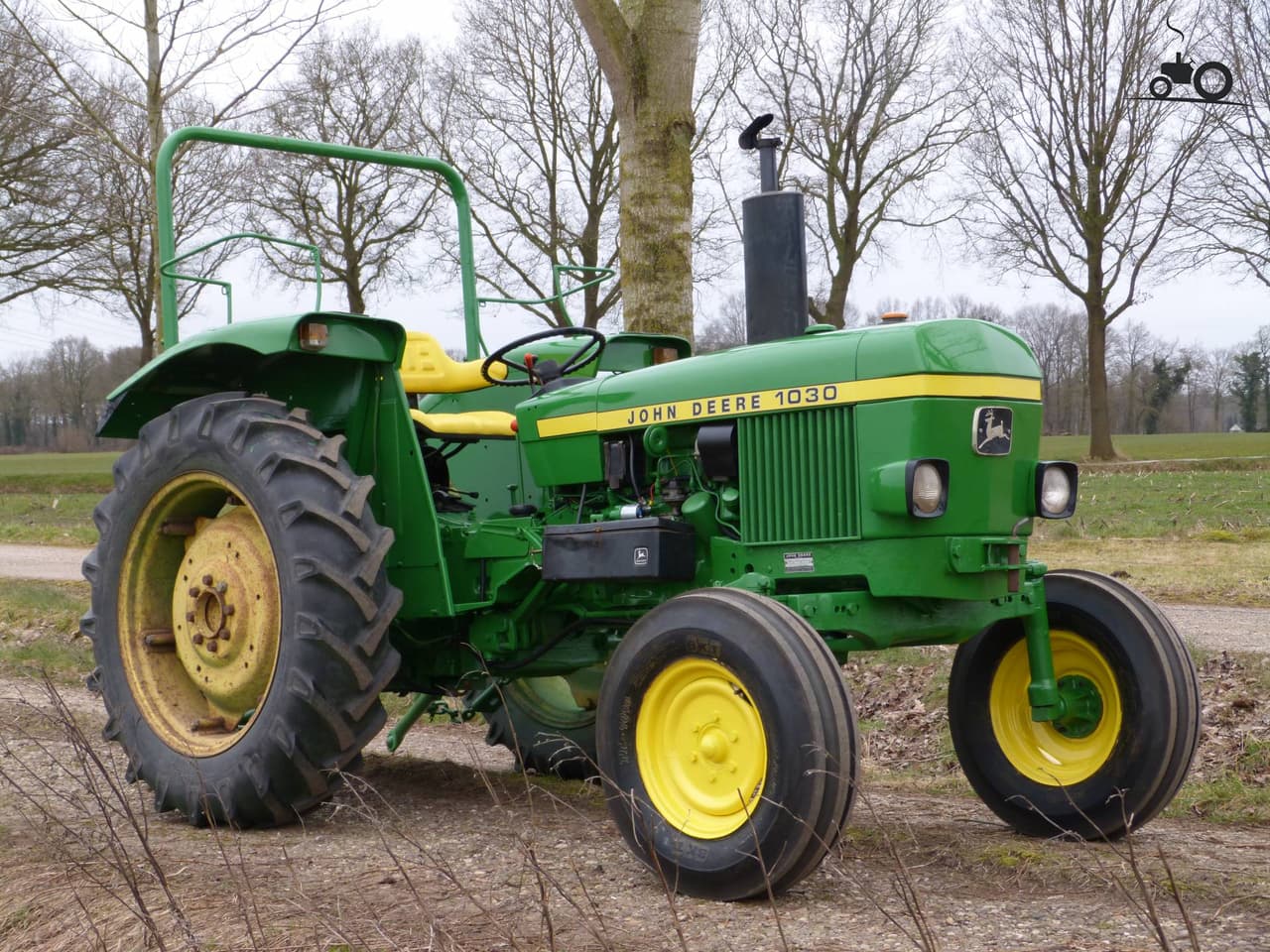

John Deere 1030 photos
FAQ
Frequently asked questions
How powerful is the John Deere 1030?
The John Deere 1030 has an engine power output of 48.3 hp. It is powered by a 3-cylinder engine displacing 164.4 ci.
What is the working weight of the John Deere 1030?
The operating weight of the John Deere 1030 is approximately 5,954 lb.
What type of transmission does the John Deere 1030 have?
The John Deere 1030 uses a Gear transmission offering 16 forward gears.
What hydraulics does the John Deere 1030 have?
The John Deere 1030 uses a Closed center hydraulic system.
What three-point hitch category does the John Deere 1030 use?
The John Deere 1030 has a Category II/I three-point hitch.
What routine service does the John Deere 1030 need?
Regular maintenance for the John Deere 1030 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
