UtilityPerformance profile
John Deere 2630
The John Deere 2630 is a utility tractor that was made from 1974 to 1975. It's a 2WD tractor with power steering, which makes it easy to drive. The tractor has a partial power shift transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed. This tractor has a strong diesel engine made by John Deere. The engine has 4 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It can produce 78 horsepower, which is above average for tractors of its time. The engine is liquid-cooled and has a very high displacement of 276 cubic inches. The tractor weighs 5,800 pounds, which is about average. It has a Category 3 hitch and an independent PTO with two speeds: 540 rpm and 1000 rpm. This makes the John Deere 2630 versatile for different farm tasks.
ManufacturerJohn DeerePower78 hpEngine4-cylTransPartial power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 78hp
- Operating Weight
- 5,800 lb
- Transmission
- Partial power shift
At a glance
How the 2630 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
78 hp · 70th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 2630 ranks at the 70th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 2630
The John Deere 2630 is a utility tractor that was made from 1974 to 1975. It's a 2WD tractor with power steering, which makes it easy to drive. The tractor has a partial power shift transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed. This tractor has a strong diesel engine made by John Deere. The engine has 4 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It can produce 78 horsepower, which is above average for tractors of its time. The engine is liquid-cooled and has a very high displacement of 276 cubic inches. The tractor weighs 5,800 pounds, which is about average. It has a Category 3 hitch and an independent PTO with two speeds: 540 rpm and 1000 rpm. This makes the John Deere 2630 versatile for different farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 2630 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1974–1975 |
| Operating weight | 5,800lb |
Engine
| Make | John Deere |
|---|---|
| Power | 78hp |
| Cylinders | 4 |
| Displacement | 276ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power assist |
| Brakes | Differential hydraulic wet disc |
| Cab | Open |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Operating weight | 5,800lb |
|---|
Capacities
| Cooling system | 3gal |
|---|
Head to head
2630 vs. Utility median
How the John Deere 2630 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 78 hp | 55 hp | +42% | 70th |
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,800 lb | 5,303 lb | +9% | 55th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,941–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 2650 | 78 hp | 7,694 lb | — | Compare → |
| John Deere 3330 | 78.6 hp | 10,430 lb | 1977–1980 | Compare → |
| John Deere 5090E | 76.78 hp | 8,150 lb | — | Compare → |
| John Deere 2141 | 76.4 hp | 7,800 lb | — | Compare → |
| John Deere 5080G | 80 hp | 6,724 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models

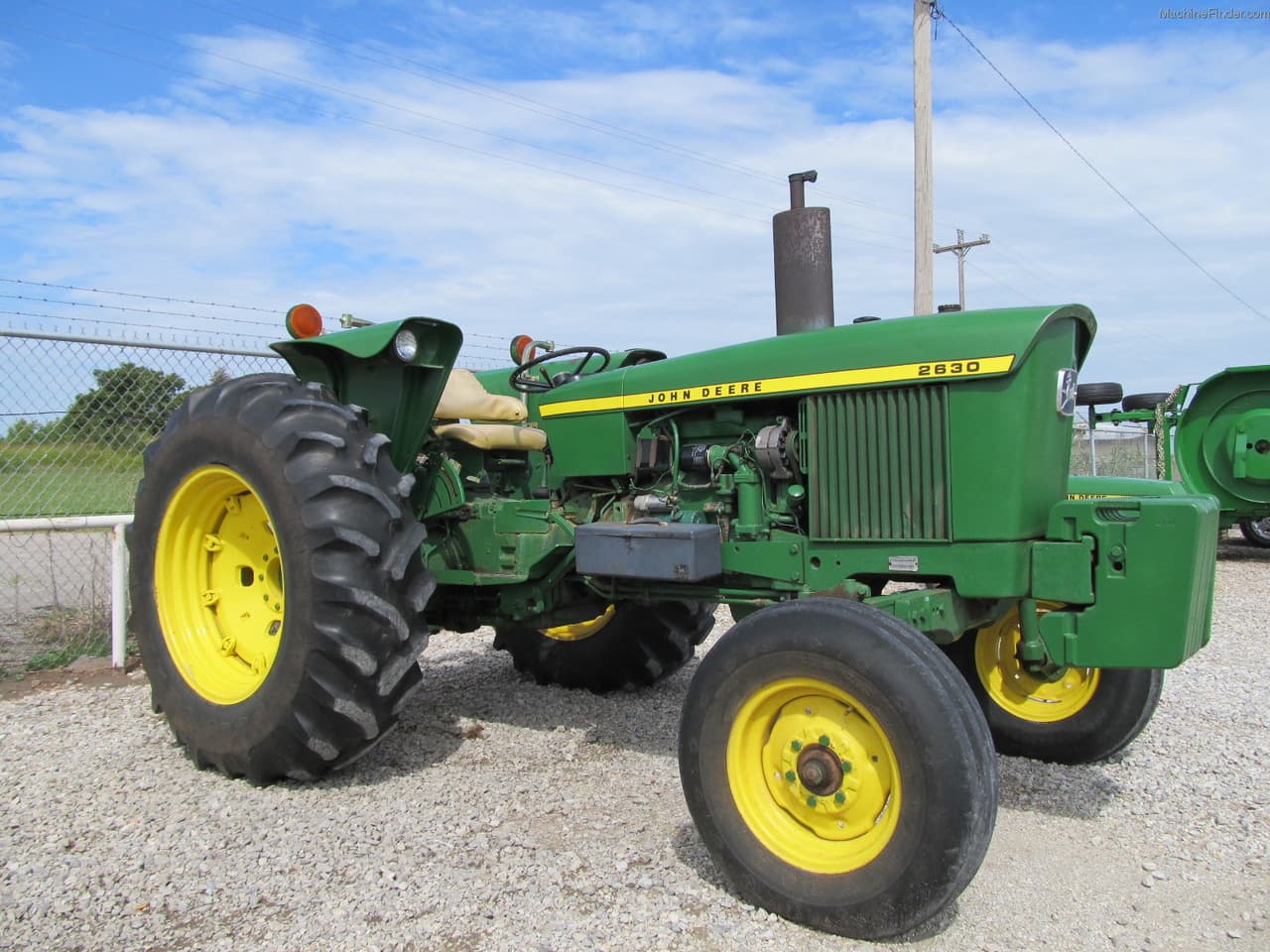

Gallery
John Deere 2630 photos
FAQ
Common questions
When was the John Deere 2630 made?
The John Deere 2630 was manufactured from 1974 to 1975.
What hitch category is the John Deere 2630?
The John Deere 2630 uses a Category Category 3 hitch.
What is the engine power output of the John Deere 2630?
Rated engine output for the John Deere 2630 is 78 hp, delivered by a 4-cylinder engine. The engine displaces 276 ci.
What is the operating weight of the John Deere 2630?
In working trim, the John Deere 2630 comes in at roughly 5,800 lb.
Which transmission does the John Deere 2630 use?
The John Deere 2630 is equipped with a Partial power shift transmission with 8 forward gears.
What type of hydraulic system does the John Deere 2630 use?
Hydraulics on the John Deere 2630 are Closed center.
How do I maintain a John Deere 2630?
Routine service for the John Deere 2630 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
