John Deere 350C
The John Deere 350C is a crawler tractor that was made from 1975 to 1985. It's a tough machine built for heavy work on farms and construction sites. This tractor has tracks instead of wheels, which helps it move well on rough ground. The 350C has a strong diesel engine made by John Deere. It has 3 cylinders and can produce 46 horsepower. The engine is cooled by liquid to keep it running smoothly. The tractor has a shuttle transmission with 4 forward and 4 reverse gears, making it easy to change direction. It also has a clutch-brake system for steering. The 350C is big and heavy, weighing 10,150 pounds. It's about 11 feet long and 7.5 feet tall. Farmers can add a PTO that spins at 540 rpm for using different tools. The tractor comes with a canopy to protect the driver, and a cab is available for extra comfort.
ManufacturerJohn DeerePower46 hp(34.3 kW)Class40–60 HP tractors →Engine3-cylinderTransmissionShuttle with wet disc clutch
Key specifications
- Category
- Crawler
- Engine power
- 46hp
- Operating weight
- 10,150 lb
- Transmission
- Shuttle with wet disc clutch
Category comparison
350C compared with its category
vs. Crawler medianDistribution
Engine Power (hp)
All recorded Crawler tractors
46 hp · 26th
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The 350C ranks at the 26th percentile for engine power among recorded crawler tractors.
Overview
About the John Deere 350C
The John Deere 350C is a crawler tractor that was made from 1975 to 1985. It's a tough machine built for heavy work on farms and construction sites. This tractor has tracks instead of wheels, which helps it move well on rough ground. The 350C has a strong diesel engine made by John Deere. It has 3 cylinders and can produce 46 horsepower. The engine is cooled by liquid to keep it running smoothly. The tractor has a shuttle transmission with 4 forward and 4 reverse gears, making it easy to change direction. It also has a clutch-brake system for steering. The 350C is big and heavy, weighing 10,150 pounds. It's about 11 feet long and 7.5 feet tall. Farmers can add a PTO that spins at 540 rpm for using different tools. The tractor comes with a canopy to protect the driver, and a cab is available for extra comfort.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 350C |
| Category | Crawler tractor |
| Type | Crawler |
| Years built | 1975–1985 |
| Operating weight | 10,150lb(4,604 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | John Deere |
| Power | 46hp(34.3 kW) |
| Cylinders | 3 |
| Displacement | 152ci(2.49 L) |
| Bore | 3.86in(98.04 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Shuttle with wet disc clutch |
|---|---|
| Forward gears | 4 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | Crawler |
|---|---|
| Steering | Clutch-brake system |
| Cab | Four-post ROPS with canopy or cab (optional) |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Optional |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 131.9in(3,350 mm) |
|---|---|
| Width | 14in(355.6 mm) |
| Height | 90.9in(2,309 mm) |
| Operating weight | 10,150lb(4,604 kg) |
Capacities
| Cooling system | 3.25gal(12.3 L) |
|---|
Closest alternatives
350C compared with the nearest models by horsepower
The closest crawler models to the John Deere 350C by rated horsepower are the John Deere 350B and the John Deere 350 Loader. The John Deere 350B matches it on rated power and weighs 1,780 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 1970, 5 years before the 350C. The John Deere 350 Loader matches it on rated power and weighs 1,420 lb more, at 252 lb per horsepower against 221 lb. It entered production in 1965, 10 years before the 350C. Of the 3 models, the 350C has the lowest weight per horsepower at 221 lb per hp.
| Spec | John Deere 350C | John Deere 350B | John Deere 350 Loader |
|---|---|---|---|
| Engine power | 46 hp34.3 kW | 46 hp34.3 kW | 46 hp34.3 kW |
| Operating weight | 10,150 lb4,604 kg | 11,927 lb5,410 kg | 11,570 lb5,248 kg |
| Weight per hp | 221 lb/hp134 kg/kW | 259 lb/hp158 kg/kW | 252 lb/hp153 kg/kW |
| Displacement | 152 ci2.49 L | 152 ci2.49 L | 152 ci2.49 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Shuttle with wet disc clutch | Gear type | Gear type/Shuttle |
| Years built | 1975-1985 | 1970-1974 | 1965-1970 |
Calculators
Calculators for the 350C
PTO power
About 38 to 41 PTO hp
Estimated from the 46 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 46 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
257 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
46 hp is 34.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 350C
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John DeereAmazon
Fits the John Deere 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 350C service and repair manualseManualOnline
Digital manuals. Built 1975 to 1985. Check the serial number range on the listing.
- John Deere 350C operator's manualAmazon
Printed and reprint manuals. Built 1975 to 1985. Check the serial number range on the listing.
- John Deere 350C service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
350C vs. Crawler median
John Deere 350C compared with other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 46 hp | 200 hp | -77% | 26th |
| Engine Displacement | 152 ci | 468 ci | -68% | 20th |
| Cylinders | 3 | 6 | -50% | 10th |
| Forward Gears | 4 | 10 | -60% | 16th |
| Operating Weight | 10,150 lb | 23,320 lb | -56% | 32nd |
| Length | 132 in | 146 in | -10% | 40th |
| Width | 14 in | 79.5 in | -82% | 1st |
| Height | 90.9 in | 90.6 in | 0% | 50th |
Medians and percentiles are calculated from the crawler tractors in the database that have a recorded value for each specification (sample size 134–192 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

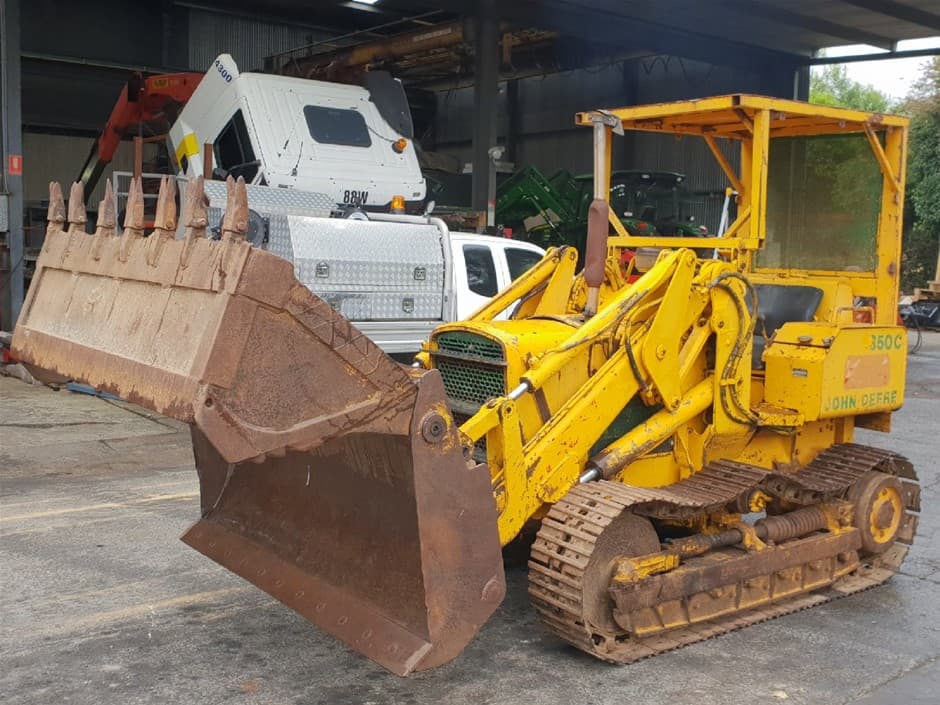

John Deere 350C photos
FAQ
Frequently asked questions
When was the John Deere 350C made?
The John Deere 350C was manufactured from 1975 to 1985.
What type of hydraulic system does the John Deere 350C use?
Hydraulics on the John Deere 350C are Open center.
What is the engine power output of the John Deere 350C?
Rated engine output for the John Deere 350C is 46 hp, delivered by a 3-cylinder engine. The engine displaces 152 ci.
What is the operating weight of the John Deere 350C?
The John Deere 350C has an operating weight of about 10,150 lb.
Which transmission does the John Deere 350C use?
The John Deere 350C is equipped with a Shuttle with wet disc clutch transmission with 4 forward gears.
How do I maintain a John Deere 350C?
Routine service for the John Deere 350C covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
