CrawlerPerformance profile
John Deere 2010C
The John Deere 2010C is a crawler tractor made from 1960 to 1965. It's a tracked machine, which means it can work well in tough ground conditions. This tractor has a gasoline engine with 4 cylinders and 47.5 horsepower. The engine is smaller than most other tractors, but it runs at a very high speed of 2500 rpm. The 2010C is quite compact, measuring 112.6 inches long, 61.25 inches wide, and 54.1 inches tall. It weighs 9550 pounds, which is about average for its size. The tractor has a manual transmission with 8 forward gears and 4 reverse gears. It also has two PTO speeds: 540 rpm and 1000 rpm. The open operator station means the driver sits outside without a cab. This tractor uses electric starting and has contracting band brakes. It's a good choice for farmers who need a reliable crawler tractor for various tasks.
ManufacturerJohn DeerePower47.5 hpEngine4-cylTransManual
Quick specs
- Category
- Crawler
- Engine Power Output
- 48hp
- Operating Weight
- 9,550 lb
- Transmission
- Manual
At a glance
How the 2010C compares
vs. Crawler medianDistribution
Engine Power (hp)
Across all Crawler tractors
47.5 hp · 27th
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The 2010C ranks at the 27th percentile for engine power among recorded crawler tractors.
Overview
About the John Deere 2010C
The John Deere 2010C is a crawler tractor made from 1960 to 1965. It's a tracked machine, which means it can work well in tough ground conditions. This tractor has a gasoline engine with 4 cylinders and 47.5 horsepower. The engine is smaller than most other tractors, but it runs at a very high speed of 2500 rpm. The 2010C is quite compact, measuring 112.6 inches long, 61.25 inches wide, and 54.1 inches tall. It weighs 9550 pounds, which is about average for its size. The tractor has a manual transmission with 8 forward gears and 4 reverse gears. It also has two PTO speeds: 540 rpm and 1000 rpm. The open operator station means the driver sits outside without a cab. This tractor uses electric starting and has contracting band brakes. It's a good choice for farmers who need a reliable crawler tractor for various tasks.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 2010C |
| Category | Crawler tractor |
| Type | Tracks |
| Years built | 1960–1965 |
| Operating weight | 9,550lb |
Engine
| Make | John Deere |
|---|---|
| Model | 2.4L 4-cyl gasoline |
| Power | 47.5hp |
| Cylinders | 4 |
| Displacement | 144.5ci |
| Bore | 3.62in |
| Stroke | 3.5in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | Tracks |
|---|---|
| Drive | 2WD |
| Steering | Multiple disc clutches |
| Brakes | Contracting band |
| Cab | Open |
Power take-off
| PTO speed | 540rpm |
|---|
Dimensions
| Length | 112.6in |
|---|---|
| Width | 61.25in |
| Height | 54.1in |
| Operating weight | 9,550lb |
Head to head
2010C vs. Crawler median
How the John Deere 2010C compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 47.5 hp | 200 hp | -76% | 27th |
| Engine Displacement | 145 ci | 468 ci | -69% | 19th |
| Cylinders | 4 | 6 | -33% | 33rd |
| Forward Gears | 8 | 10 | -20% | 41st |
| Operating Weight | 9,550 lb | 23,320 lb | -59% | 32nd |
| Length | 113 in | 146 in | -23% | 18th |
| Width | 61.3 in | 79.5 in | -23% | 33rd |
| Height | 54.1 in | 90.6 in | -40% | 7th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 134–192 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 350 Loader | 46 hp | 11,570 lb | 1965–1970 | Compare → |
| John Deere 350B | 46 hp | 11,927 lb | 1970–1974 | Compare → |
| John Deere 350C | 46 hp | 10,150 lb | 1975–1985 | Compare → |
| John Deere MC | 20.33 hp | 4,145 lb | 1949–1952 | Compare → |
| John Deere 420C | — | 4,700 lb | 1956–1958 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 5800 | 48 hp | — | — | Compare → |
| AGCO ST60A | 46.4 hp | 4,078 lb | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

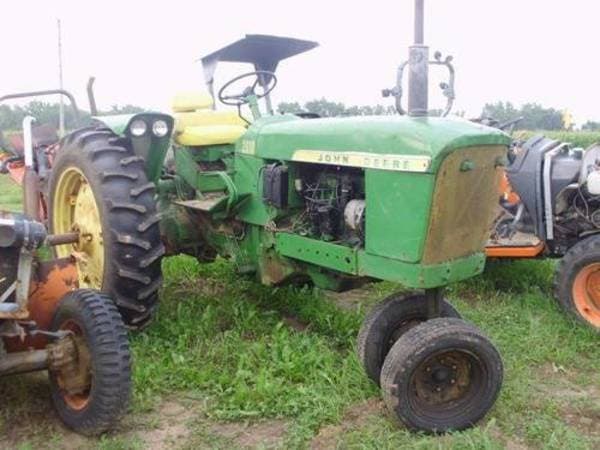

John Deere 2010C photos
FAQ
Common questions
What years was the John Deere 2010C manufactured?
Production of the John Deere 2010C ran from 1960 through 1965.
What type of transmission does the John Deere 2010C have?
The John Deere 2010C uses a Manual transmission offering 8 forward gears.
How powerful is the John Deere 2010C?
The John Deere 2010C has an engine power output of 47.5 hp. It is powered by a 4-cylinder engine displacing 144.5 ci.
What is the working weight of the John Deere 2010C?
The operating weight of the John Deere 2010C is approximately 9,550 lb.
What routine service does the John Deere 2010C need?
Regular maintenance for the John Deere 2010C includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
