Sub-CompactPerformance profile
John Deere 4500
The John Deere 4500 is a compact tractor built from 1998 to 2001. It's a 2WD model with power steering, making it easy to handle. This tractor is powered by a Yanmar 4TNE84 diesel engine with 4 cylinders. The engine is liquid-cooled and naturally aspirated, producing 39 hp at 2600 rpm. It has a displacement of 122 ci, which is average for tractors in its class. The 4500 features an unsynchronized gear transmission with 9 forward and 3 reverse gears. It has an independent PTO with two speeds: 540 rpm and 2100 rpm. The hydraulic system is open center type, and the tractor is equipped with wet disc brakes. The operator station has a two-post ROPS for safety. This John Deere model measures 134.6 inches long, 61.8 inches wide, and 97.2 inches high. It has an operating weight of 3450 lb, making it sturdy yet manageable for various farm tasks.
ManufacturerJohn DeerePower39 hpEngine4-cylTransUnsynchronized gear with dry disc clutch
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 39hp
- Operating Weight
- 3,450 lb
- Transmission
- Unsynchronized gear with dry disc clutch
At a glance
How the 4500 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
39 hp · 73rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 4500 ranks at the 73rd percentile for engine power among recorded sub-compact tractors.
Overview
About the John Deere 4500
The John Deere 4500 is a compact tractor built from 1998 to 2001. It's a 2WD model with power steering, making it easy to handle. This tractor is powered by a Yanmar 4TNE84 diesel engine with 4 cylinders. The engine is liquid-cooled and naturally aspirated, producing 39 hp at 2600 rpm. It has a displacement of 122 ci, which is average for tractors in its class. The 4500 features an unsynchronized gear transmission with 9 forward and 3 reverse gears. It has an independent PTO with two speeds: 540 rpm and 2100 rpm. The hydraulic system is open center type, and the tractor is equipped with wet disc brakes. The operator station has a two-post ROPS for safety. This John Deere model measures 134.6 inches long, 61.8 inches wide, and 97.2 inches high. It has an operating weight of 3450 lb, making it sturdy yet manageable for various farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 4500 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Years built | 1998–2001 |
| Operating weight | 3,450lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 4TNE84 |
| Power | 39hp |
| Cylinders | 4 |
| Displacement | 122ci |
| Bore | 3.31in |
| Stroke | 3.54in |
Transmission
| Type | Unsynchronized gear with dry disc clutch |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Wet disc |
| Cab | Two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 134.6in |
|---|---|
| Width | 61.8in |
| Height | 97.2in |
| Operating weight | 3,450lb |
Capacities
| Cooling system | 1.8gal |
|---|
Head to head
4500 vs. Sub-Compact median
How the John Deere 4500 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 39 hp | 26.9 hp | +45% | 73rd |
| Engine Displacement | 122 ci | 91.4 ci | +33% | 70th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 9 | 9 | at median | 50th |
| Operating Weight | 3,450 lb | 2,700 lb | +28% | 65th |
| Length | 135 in | 113 in | +19% | 87th |
| Width | 61.8 in | 50.7 in | +22% | 79th |
| Height | 97.2 in | 78.4 in | +24% | 94th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5039C | 39 hp | 3,814 lb | 2003+ | Compare → |
| John Deere 5038D | 38 hp | — | — | Compare → |
| John Deere 5103E | 37.5 hp | 3,946 lb | — | Compare → |
| John Deere 1046 | 37 hp | 2,469 lb | — | Compare → |
| John Deere 5036C | 36 hp | 3,814 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

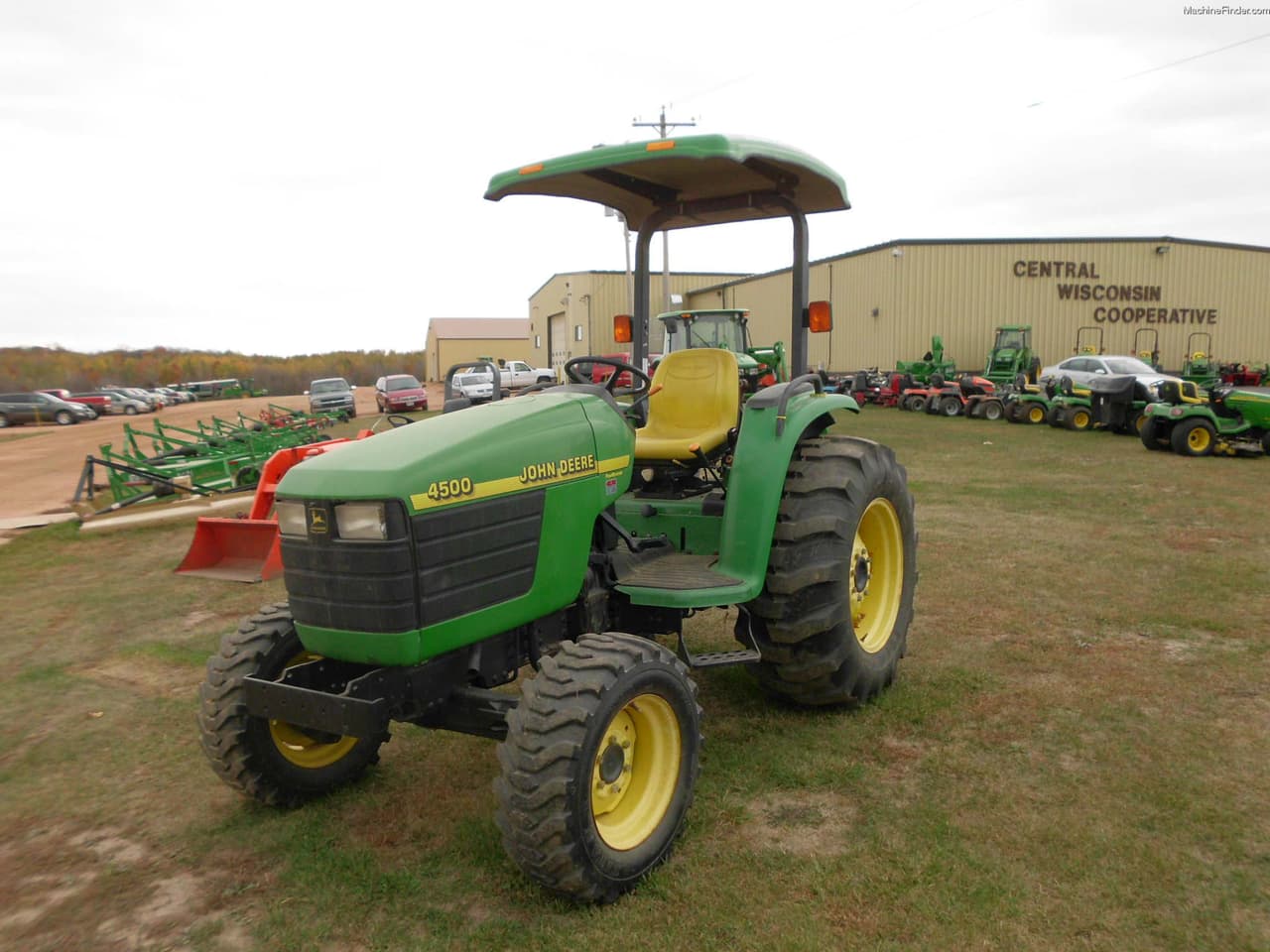

John Deere 4500 photos
FAQ
Common questions
When was the John Deere 4500 in production?
John Deere 4500 production started in 1998 and ended in 2001.
What type of hydraulic system does the John Deere 4500 use?
Hydraulics on the John Deere 4500 are Open center.
How much horsepower does the John Deere 4500 have?
The John Deere 4500 produces 39 hp from its 4-cylinder engine. Engine displacement is 122 ci.
How much does the John Deere 4500 weigh?
The John Deere 4500 weighs about 3,450 lb in operating condition.
What transmission is in the John Deere 4500?
Transmission on the John Deere 4500 is Unsynchronized gear with dry disc clutch, with 9 forward speeds.
What maintenance does the John Deere 4500 require?
Like any tractor, the John Deere 4500 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
