Sub-CompactPerformance profile
John Deere 5103E
The John Deere 5103E is a compact and versatile tractor designed for various farming tasks. It features a 2WD drive system with manual steering, making it easy to maneuver in tight spaces. The tractor is powered by a John Deere diesel engine with 3 cylinders and a displacement of 179 cubic inches. This engine delivers 37.5 horsepower at 2300 RPM, providing enough power for most small to medium-sized farm operations. The 5103E comes with a collar shift gear transmission, offering 8 forward and 4 reverse gears. This gives operators plenty of options for different tasks and speeds. The tractor has agricultural tires on both front and rear, ensuring good traction in various field conditions. With a length of 131.3 inches and a width of 65 inches, it's compact enough to work in smaller areas while still being sturdy. The operating weight of 3946 pounds helps with stability during operation. The tractor also features a category II hitch, allowing it to work with a wide range of implements.
ManufacturerJohn DeerePower37.5 hpEngine3-cylTransCollar Shift Gear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 38hp
- Operating Weight
- 3,946 lb
- Transmission
- Collar Shift Gear
At a glance
How the 5103E compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
37.5 hp · 70th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 5103E ranks at the 70th percentile for engine power among recorded sub-compact tractors.
Overview
About the John Deere 5103E
The John Deere 5103E is a compact and versatile tractor designed for various farming tasks. It features a 2WD drive system with manual steering, making it easy to maneuver in tight spaces. The tractor is powered by a John Deere diesel engine with 3 cylinders and a displacement of 179 cubic inches. This engine delivers 37.5 horsepower at 2300 RPM, providing enough power for most small to medium-sized farm operations. The 5103E comes with a collar shift gear transmission, offering 8 forward and 4 reverse gears. This gives operators plenty of options for different tasks and speeds. The tractor has agricultural tires on both front and rear, ensuring good traction in various field conditions. With a length of 131.3 inches and a width of 65 inches, it's compact enough to work in smaller areas while still being sturdy. The operating weight of 3946 pounds helps with stability during operation. The tractor also features a category II hitch, allowing it to work with a wide range of implements.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 5103E |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 3,946lb |
Engine
| Make | John Deere |
|---|---|
| Power | 37.5hp |
| Cylinders | 3 |
| Displacement | 179ci |
| Bore | 4.19in |
| Stroke | 4.33in |
Transmission
| Type | Collar Shift Gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 131.3in |
|---|---|
| Width | 65in |
| Operating weight | 3,946lb |
Head to head
5103E vs. Sub-Compact median
How the John Deere 5103E compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 37.5 hp | 26.9 hp | +40% | 70th |
| Engine Displacement | 179 ci | 91.4 ci | +96% | 92nd |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 8 | 9 | -11% | 40th |
| Operating Weight | 3,946 lb | 2,700 lb | +46% | 78th |
| Length | 131 in | 113 in | +16% | 82nd |
| Width | 65 in | 50.7 in | +28% | 86th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 1046 | 37 hp | 2,469 lb | — | Compare → |
| John Deere 5038D | 38 hp | — | — | Compare → |
| John Deere 4500 | 39 hp | 3,450 lb | 1998–2001 | Compare → |
| John Deere 5036C | 36 hp | 3,814 lb | — | Compare → |
| John Deere 5039C | 39 hp | 3,814 lb | 2003+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models

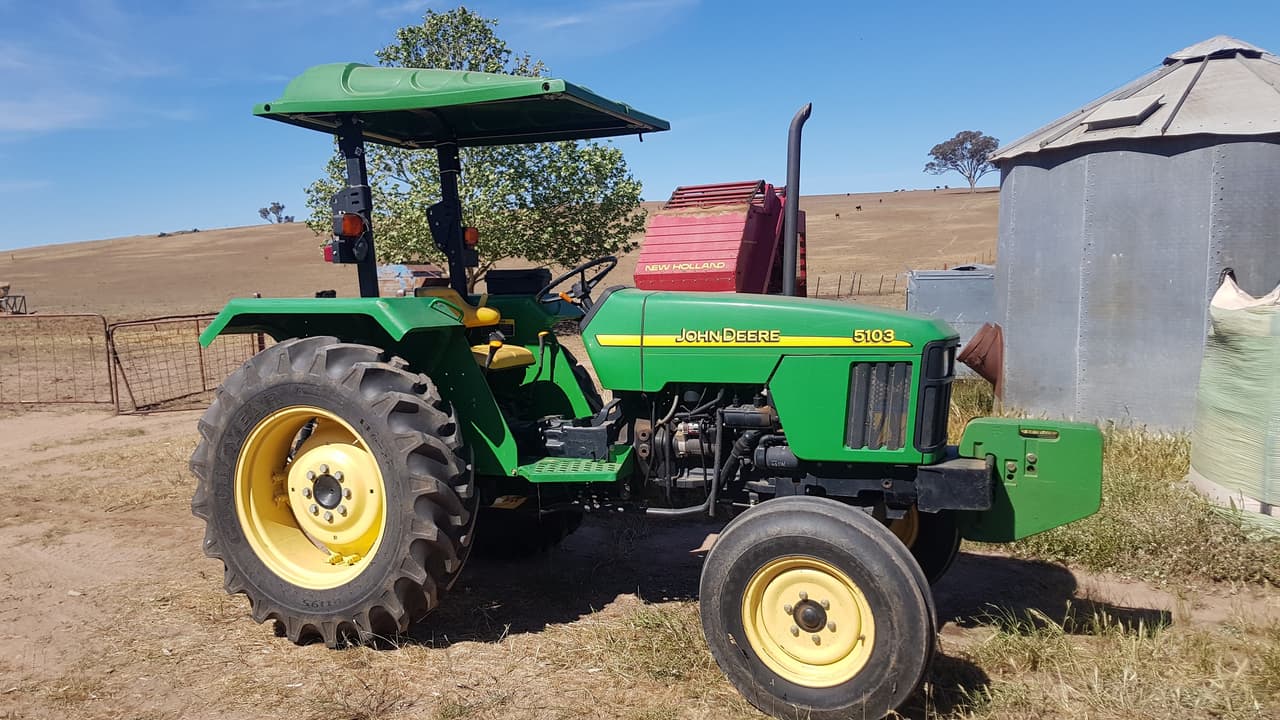

Gallery
John Deere 5103E photos
FAQ
Common questions
What is the engine power output of the John Deere 5103E?
Rated engine output for the John Deere 5103E is 37.5 hp, delivered by a 3-cylinder engine. The engine displaces 179 ci.
What hydraulics does the John Deere 5103E have?
The John Deere 5103E uses an Open Center hydraulic system.
What three-point hitch category does the John Deere 5103E use?
The John Deere 5103E has a Category II three-point hitch.
What is the operating weight of the John Deere 5103E?
In working trim, the John Deere 5103E comes in at roughly 3,946 lb.
Which transmission does the John Deere 5103E use?
The John Deere 5103E is equipped with a Collar Shift Gear transmission with 8 forward gears.
How do I maintain a John Deere 5103E?
Routine service for the John Deere 5103E covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
