Brand siblingJohn Deere 45R
The John Deere 45R is a compact tractor designed for orchards and vineyards. It's also great for general farm work. This 4-wheel drive tractor has a manual transmission with 6 forward gears and 3 reverse gears, giving you good control in tight spaces. Under the hood, you'll find a Lombardini CHD 1603 engine. It's a 3-cylinder diesel engine that's liquid-cooled for better performance. The engine puts out 35 horsepower, which is on the lower end compared to other tractors. But don't worry - it still has enough power for most orchard and vineyard tasks. The engine runs at a very high 2800 RPM, which means it can work hard when you need it to. It also has an electric starter, making it easy to get going in the morning. The John Deere 45R comes with some handy features. It has a dry air cleaner to keep the engine running smoothly. The clutch is a mechanical dry disc type, which is simple and reliable. The tractor runs on a 12-volt electrical system, which is standard for most farm equipment. With its Category 3 hitch, you can attach a wide range of tools and implements to get your work done.

Quick specs
- Category
- Agricultural
- Engine Power Output
- 35hp
- Transmission
- Manual
At a glance
How the 45R compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
This model
The 45R ranks at the 5th percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 45R
The John Deere 45R is a compact tractor designed for orchards and vineyards. It's also great for general farm work. This 4-wheel drive tractor has a manual transmission with 6 forward gears and 3 reverse gears, giving you good control in tight spaces. Under the hood, you'll find a Lombardini CHD 1603 engine. It's a 3-cylinder diesel engine that's liquid-cooled for better performance. The engine puts out 35 horsepower, which is on the lower end compared to other tractors. But don't worry - it still has enough power for most orchard and vineyard tasks. The engine runs at a very high 2800 RPM, which means it can work hard when you need it to. It also has an electric starter, making it easy to get going in the morning. The John Deere 45R comes with some handy features. It has a dry air cleaner to keep the engine running smoothly. The clutch is a mechanical dry disc type, which is simple and reliable. The tractor runs on a 12-volt electrical system, which is standard for most farm equipment. With its Category 3 hitch, you can attach a wide range of tools and implements to get your work done.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 45R |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
Engine
| Make | Lombardini |
|---|---|
| Model | CHD 1603 |
| Power | 35hp |
| Cylinders | 3 |
| Displacement | 100.7ci |
| Bore | 3.46in |
| Stroke | 3.54in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 6 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Head to head
45R vs. Agricultural median
How the John Deere 45R compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35 hp | 110 hp | -68% | 5th |
| Engine Displacement | 101 ci | 336 ci | -70% | 2nd |
| Cylinders | 3 | 5.5 | -45% | 8th |
| Forward Gears | 6 | 16 | -62% | 11th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 972–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 820 | 32 hp | 8,600 lb | — | Compare → |
| John Deere D | 30 hp | — | — | Compare → |
| John Deere G | 29.82 hp | — | — | Compare → |
| John Deere 930VU | 40.2 hp | — | — | Compare → |
| John Deere 1445F | 41.4 hp | 4,057 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

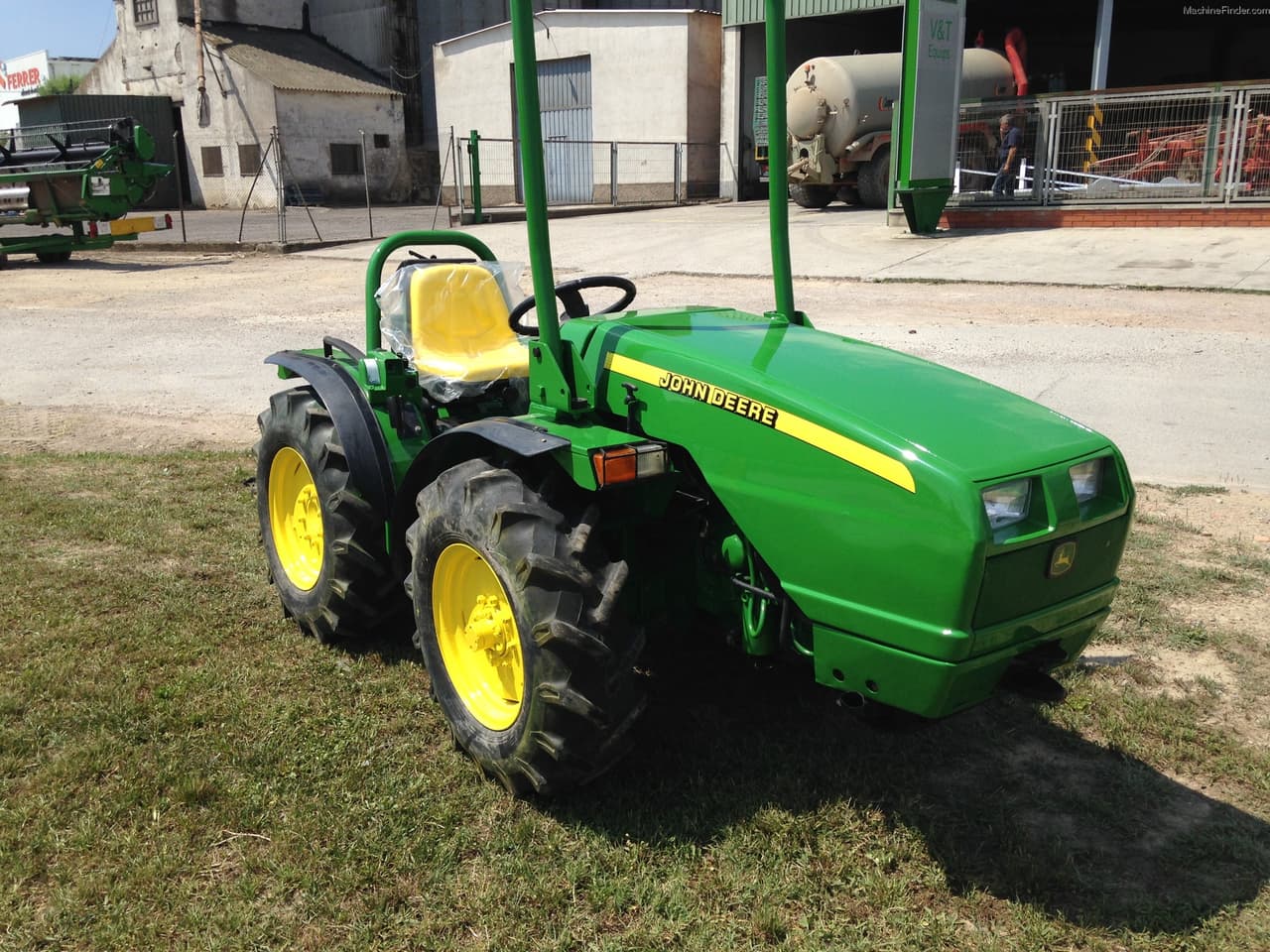

John Deere 45R photos



FAQ
Common questions
How powerful is the John Deere 45R?
The John Deere 45R has an engine power output of 35 hp. It is powered by a 3-cylinder engine displacing 100.7 ci.
What hitch category is the John Deere 45R?
The John Deere 45R uses a Category Category 3 hitch.
What type of transmission does the John Deere 45R have?
The John Deere 45R uses a Manual transmission offering 6 forward gears.
What routine service does the John Deere 45R need?
Regular maintenance for the John Deere 45R includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
