UtilityPerformance profile
John Deere 5101E Limited
The John Deere 5101E Limited is a powerful tractor designed for farm work. It has a strong engine made by John Deere that can produce 90.42 hp. This engine has 4 cylinders and is turbocharged, which means it can work hard without getting tired. The tractor uses a PowrReverser transmission with 12 forward and 12 reverse gears, making it easy to change speeds and direction. This tractor is built to handle tough jobs. It weighs 7,515 lb and has big tires - 12.4-24 in the front and 18.4-30 in the back. These tires help it move well on different types of ground. The tractor can lift heavy things too, with a hitch that can handle up to 3,213 lb. It also has a good hydraulic system that can pump 17.3 gallons of fluid per minute, which is helpful for using tools. The PTO (power take-off) can provide 82 hp to run other farm equipment. John Deere is known for making reliable tractors, and this model is no exception.
ManufacturerJohn DeerePower90.42 hpEngine4-cylTransPowrReverser
Quick specs
- Category
- Utility
- Engine Power Output
- 90hp
- Operating Weight
- 7,515 lb
- Transmission
- PowrReverser
At a glance
How the 5101E Limited compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
90.42 hp · 78th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5101E Limited ranks at the 78th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 5101E Limited
The John Deere 5101E Limited is a powerful tractor designed for farm work. It has a strong engine made by John Deere that can produce 90.42 hp. This engine has 4 cylinders and is turbocharged, which means it can work hard without getting tired. The tractor uses a PowrReverser transmission with 12 forward and 12 reverse gears, making it easy to change speeds and direction. This tractor is built to handle tough jobs. It weighs 7,515 lb and has big tires - 12.4-24 in the front and 18.4-30 in the back. These tires help it move well on different types of ground. The tractor can lift heavy things too, with a hitch that can handle up to 3,213 lb. It also has a good hydraulic system that can pump 17.3 gallons of fluid per minute, which is helpful for using tools. The PTO (power take-off) can provide 82 hp to run other farm equipment. John Deere is known for making reliable tractors, and this model is no exception.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 5101E Limited |
| Category | Utility tractor |
| Operating weight | 7,515lb |
Engine
| Make | John Deere |
|---|---|
| Model | PE4045L857425 |
| Power | 90.42hp |
| Cylinders | 4 |
| Displacement | 276ci |
Transmission
| Type | PowrReverser |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Dimensions
| Operating weight | 7,515lb |
|---|
Tires
| Front | 12.4-24 |
|---|---|
| Rear | 18.4-30 |
Head to head
5101E Limited vs. Utility median
How the John Deere 5101E Limited compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 90.4 hp | 55 hp | +64% | 78th |
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,515 lb | 5,303 lb | +42% | 72nd |
| 3-Point Hitch Capacity | 3,213 lb | 3,197 lb | +1% | 50th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5615 | 90.5 hp | 5,732 lb | — | Compare → |
| John Deere 3050 | 90.7 hp | 10,714 lb | — | Compare → |
| John Deere 6400 | 90.1 hp | 9,985 lb | 1992–1998 | Compare → |
| John Deere 5090G | 90 hp | 6,724 lb | — | Compare → |
| John Deere 5090R (2009-2016) | 90 hp | 8,157 lb | 2009–2016 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 6080 | 93 hp | 6,500 lb | 1980–1985 | Compare → |
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

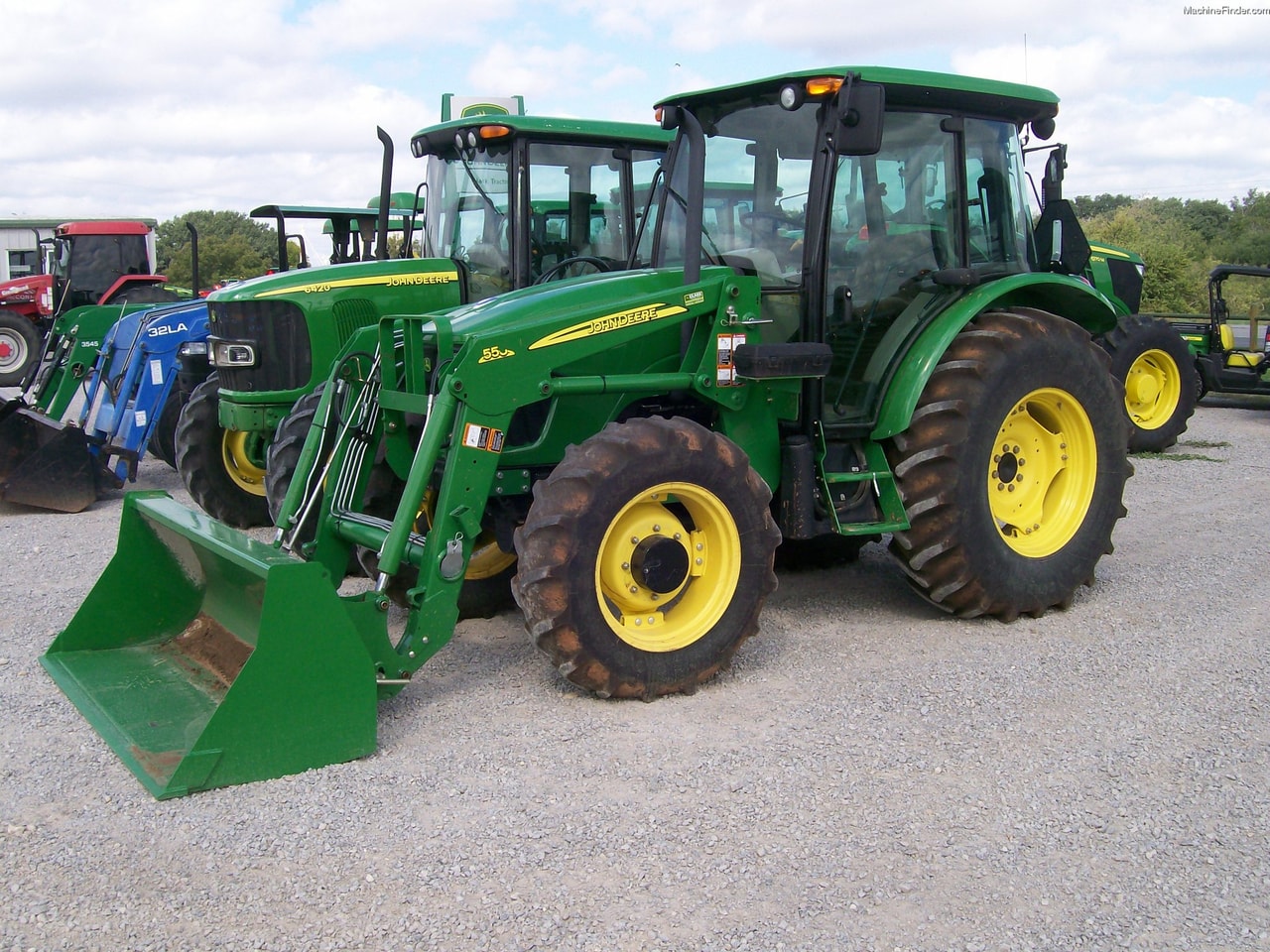

John Deere 5101E Limited photos
FAQ
Common questions
How powerful is the John Deere 5101E Limited?
The John Deere 5101E Limited has an engine power output of 90.42 hp. It is powered by a 4-cylinder engine displacing 276 ci.
What hitch category is the John Deere 5101E Limited?
The John Deere 5101E Limited uses a Category II hitch with a lift capacity of 3,213 lb.
What is the working weight of the John Deere 5101E Limited?
The operating weight of the John Deere 5101E Limited is approximately 7,515 lb.
What type of transmission does the John Deere 5101E Limited have?
The John Deere 5101E Limited uses a PowrReverser transmission offering 12 forward gears.
What size tires does the John Deere 5101E Limited use?
Factory rubber for the John Deere 5101E Limited is 12.4-24 front tires and 18.4-30 rear tires.
What routine service does the John Deere 5101E Limited need?
Regular maintenance for the John Deere 5101E Limited includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
