John Deere 510C

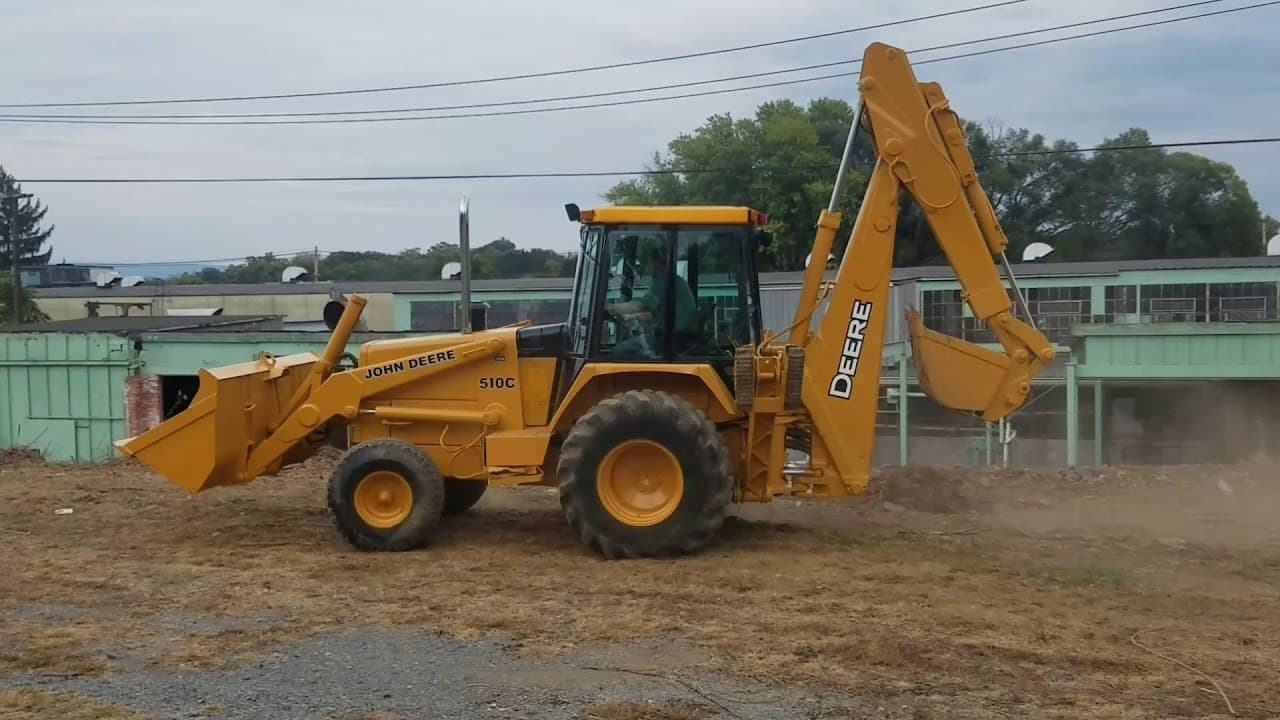

The John Deere 510C is a specialized backhoe loader tractor built from 1986 to 1991. It's a 2WD machine with a 4x2 chassis and hydrostatic power steering, making it easy to control. The tractor has 4 forward and 4 reverse gears, giving the operator good speed options for different tasks. Under the hood, the 510C has a John Deere 4045T engine. This is a 4-cylinder, turbocharged diesel engine that's liquid-cooled. It has 276 cubic inches of displacement and puts out 90 horsepower at 2200 RPM. The engine has a bore of 4.17 inches and a stroke of 5 inches. This powerful engine helps the tractor handle tough jobs on the farm or construction site. The 510C is a big machine, measuring 279.9 inches long and 91.7 inches wide. It weighs 15,399 pounds, which gives it good stability for heavy work.
ManufacturerJohn DeerePower90 hpEngine4-cyl
Quick specs
- Category
- Specialized
- Engine Power Output
- 90hp
- Operating Weight
- 15,399 lb
At a glance
How the 510C compares
vs. Specialized medianDistribution
Engine Power (hp)
Across all Specialized tractors
90 hp · 88th
This model
15
Median 62 hp
85
This modelSpecialized tractorsMediann = 55
The 510C ranks at the 88th percentile for engine power among recorded specialized tractors.
Overview
About the John Deere 510C
The John Deere 510C is a specialized backhoe loader tractor built from 1986 to 1991. It's a 2WD machine with a 4x2 chassis and hydrostatic power steering, making it easy to control. The tractor has 4 forward and 4 reverse gears, giving the operator good speed options for different tasks. Under the hood, the 510C has a John Deere 4045T engine. This is a 4-cylinder, turbocharged diesel engine that's liquid-cooled. It has 276 cubic inches of displacement and puts out 90 horsepower at 2200 RPM. The engine has a bore of 4.17 inches and a stroke of 5 inches. This powerful engine helps the tractor handle tough jobs on the farm or construction site. The 510C is a big machine, measuring 279.9 inches long and 91.7 inches wide. It weighs 15,399 pounds, which gives it good stability for heavy work.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 510C |
| Category | Specialized tractor |
| Type | 4x2 2WD |
| Years built | 1986–1991 |
| Operating weight | 15,399lb |
Engine
| Make | John Deere |
|---|---|
| Model | 4045T |
| Power | 90hp |
| Cylinders | 4 |
| Displacement | 276ci |
| Bore | 4.17in |
| Stroke | 5in |
Transmission
| Forward gears | 4 |
|---|---|
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
| Brakes | Differential Hydraulic Wet Disc |
| Cab | Four-post ROPS |
Hydraulics
| Type | Closed Center |
|---|
Dimensions
| Length | 279.9in |
|---|---|
| Width | 91.7in |
| Operating weight | 15,399lb |
Capacities
| Cooling system | 4.25gal |
|---|
Head to head
510C vs. Specialized median
How the John Deere 510C compares to other Specialized tractors
| Spec | This model | Specialized median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 90 hp | 62 hp | +45% | 88th |
| Engine Displacement | 276 ci | 239 ci | +15% | 82nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 4 | at median | 50th |
| Operating Weight | 15,399 lb | 12,600 lb | +22% | 83rd |
| Length | 280 in | 274 in | +2% | 74th |
| Width | 91.7 in | 83.9 in | +9% | 86th |
Medians and percentiles are computed from the specialized tractors in our database with a recorded value for each spec (sample sizes 43–58 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 410E | 90 hp | — | 1997–2001 | Compare → |
| John Deere 310SG | 91 hp | 13,490 lb | 2001–2007 | Compare → |
| John Deere 310K | 88 hp | — | 2012–2019 | Compare → |
| John Deere 310SJ | 93 hp | 17,040 lb | 2007–2017 | Compare → |
| John Deere 410D | 85 hp | 15,609 lb | 1991–1997 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 6080 | 93 hp | 6,500 lb | 1980–1985 | Compare → |
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery
John Deere 510C photos
FAQ
Common questions
When was the John Deere 510C in production?
John Deere 510C production started in 1986 and ended in 1991.
How much horsepower does the John Deere 510C have?
The John Deere 510C produces 90 hp from its 4-cylinder engine. Engine displacement is 276 ci.
How much does the John Deere 510C weigh?
The John Deere 510C weighs about 15,399 lb in operating condition.
What type of hydraulic system does the John Deere 510C use?
Hydraulics on the John Deere 510C are Closed Center.
What maintenance does the John Deere 510C require?
Like any tractor, the John Deere 510C needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
