Brand siblingAgriculturalPerformance profile
John Deere 6900
The John Deere 6900 is a powerful tractor designed for serious farm work. It has a strong diesel engine made by John Deere, with 6 cylinders and 130 horsepower. This engine is turbocharged and liquid-cooled, which helps it run smoothly and efficiently. The tractor has a 20-speed transmission, giving the driver lots of options for different tasks. This tractor is big and sturdy, measuring 196.5 inches long, 93 inches wide, and 113.4 inches tall. It weighs 11,885 pounds, which helps it handle tough jobs. The 6900 has large agricultural tires, with a 28-inch front rim and a 38-inch rear rim. It comes with a comfortable cab for the driver and uses an electric starter. The hydraulic system is closed-center, which is good for precise control. The hitch is category II/IIIN, making it versatile for attaching different farm tools.
ManufacturerJohn DeerePower130 hpEngine6-cylTransPartial Power Shift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 130hp
- Operating Weight
- 11,885 lb
- Transmission
- Partial Power Shift
At a glance
How the 6900 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
130 hp · 61st
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 6900 ranks at the 61st percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 6900
The John Deere 6900 is a powerful tractor designed for serious farm work. It has a strong diesel engine made by John Deere, with 6 cylinders and 130 horsepower. This engine is turbocharged and liquid-cooled, which helps it run smoothly and efficiently. The tractor has a 20-speed transmission, giving the driver lots of options for different tasks. This tractor is big and sturdy, measuring 196.5 inches long, 93 inches wide, and 113.4 inches tall. It weighs 11,885 pounds, which helps it handle tough jobs. The 6900 has large agricultural tires, with a 28-inch front rim and a 38-inch rear rim. It comes with a comfortable cab for the driver and uses an electric starter. The hydraulic system is closed-center, which is good for precise control. The hitch is category II/IIIN, making it versatile for attaching different farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6900 |
| Category | Agricultural tractor |
| Operating weight | 11,885lb |
Engine
| Make | John Deere |
|---|---|
| Model | 6068 |
| Power | 130hp |
| Cylinders | 6 |
| Displacement | 414ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 20 |
| Reverse gears | 20 |
Chassis & drive
| Cab | Cab |
|---|
Hydraulics
| Type | Closed Center |
|---|
Dimensions
| Length | 196.5in |
|---|---|
| Width | 93in |
| Height | 113.4in |
| Operating weight | 11,885lb |
Head to head
6900 vs. Agricultural median
How the John Deere 6900 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 130 hp | 110 hp | +18% | 61st |
| Engine Displacement | 414 ci | 336 ci | +23% | 70th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 20 | 16 | +25% | 74th |
| Operating Weight | 11,885 lb | 10,914 lb | +9% | 55th |
| Length | 197 in | 173 in | +14% | 75th |
| Width | 93 in | 79.5 in | +17% | 71st |
| Height | 113 in | 111 in | +3% | 59th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 6630 | 126 hp | 11,390 lb | — | Compare → |
| John Deere 6820 | 135 hp | — | — | Compare → |
| John Deere 5120M | 120 hp | — | — | Compare → |
| John Deere 6800 | 120 hp | 11,000 lb | — | Compare → |
| John Deere 5125ML | 118.68 hp | 8,625 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers HD11AG | 130 hp | 23,000 lb | — | Compare → |
| Belarus 1221 | 130 hp | 10,230 lb | — | Compare → |
| Belarus 1221 MIG | 130 hp | 11,350 lb | — | Compare → |
| Allis Chalmers 7030 | 131.09 hp | 12,430 lb | 1973–1974 | Compare → |
| AGCO RT100 | 128 hp | 15,055 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

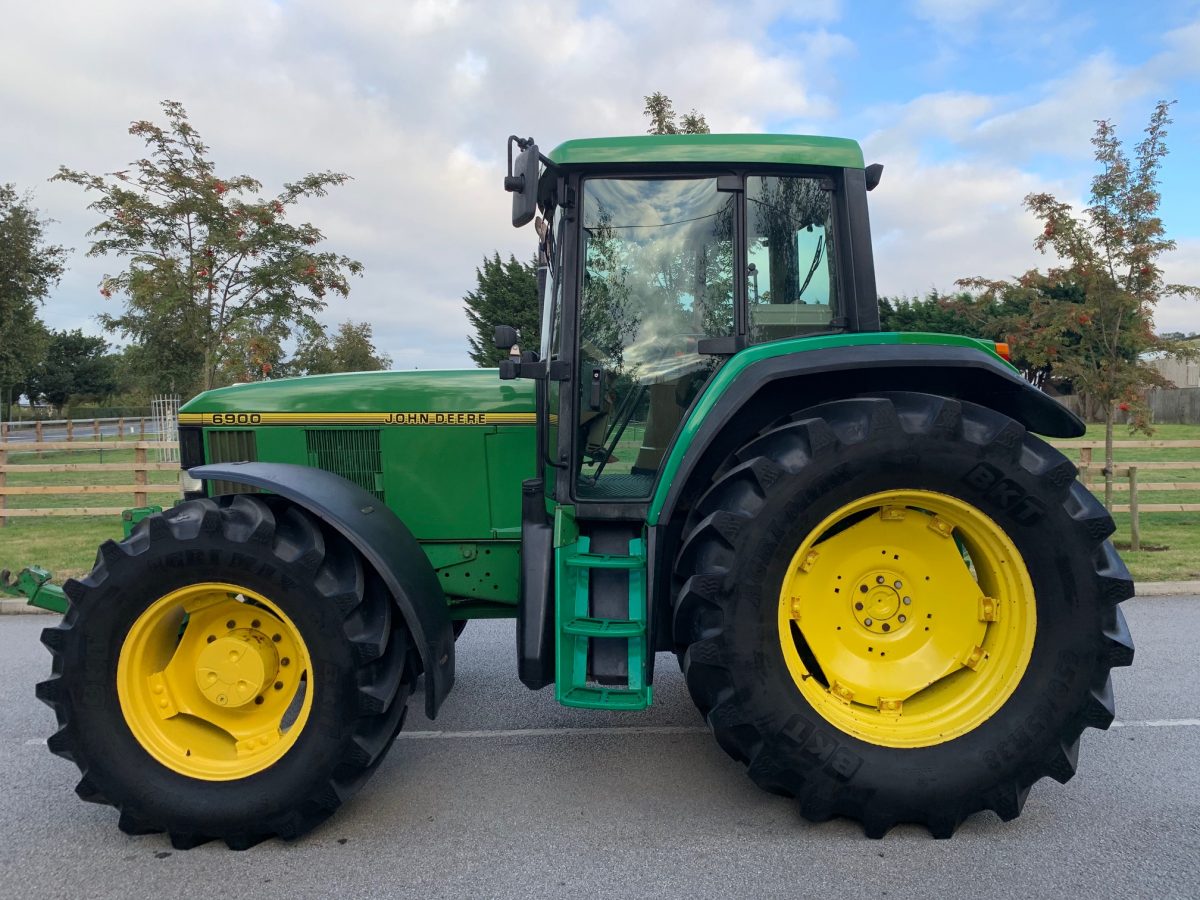

John Deere 6900 photos
FAQ
Common questions
How much horsepower does the John Deere 6900 have?
The John Deere 6900 produces 130 hp from its 6-cylinder engine. Engine displacement is 414 ci.
What transmission is in the John Deere 6900?
Transmission on the John Deere 6900 is Partial Power Shift, with 20 forward speeds.
What type of hydraulic system does the John Deere 6900 use?
Hydraulics on the John Deere 6900 are Closed Center.
What hitch category is the John Deere 6900?
The John Deere 6900 uses a Category II/IIIN hitch.
How much does the John Deere 6900 weigh?
The John Deere 6900 weighs about 11,885 lb in operating condition.
What maintenance does the John Deere 6900 require?
Like any tractor, the John Deere 6900 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
