AgriculturalPerformance profile
John Deere 6800
The John Deere 6800 is a powerful and versatile tractor designed for serious farm work. It features a John Deere 6068 engine, which is a 6-cylinder, turbocharged diesel engine that produces 120 horsepower. This liquid-cooled engine has a displacement of 414 cubic inches, making it strong enough for most farming tasks. The tractor uses a partial power shift transmission with 20 forward and 20 reverse gears, giving farmers plenty of options for different jobs. This tractor is built to handle tough conditions. It has a three-point hitch at the rear, which can be used to attach various farm tools. The hydraulic system is a closed center type, which helps the tractor work efficiently with different attachments. The John Deere 6800 is quite large, measuring 179.5 inches long, 93 inches wide, and 110.6 inches tall. It weighs 11,000 pounds, making it sturdy and stable for field work. The tractor comes with a comfortable cab for the operator and uses agricultural tires for good traction in farm conditions. With its mix of power, versatility, and comfort, the John Deere 6800 is a reliable choice for many farming operations.
ManufacturerJohn DeerePower120 hpEngine6-cylTranspartial power shift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 120hp
- Operating Weight
- 11,000 lb
- Transmission
- partial power shift
At a glance
How the 6800 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
120 hp · 57th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 6800 ranks at the 57th percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 6800
The John Deere 6800 is a powerful and versatile tractor designed for serious farm work. It features a John Deere 6068 engine, which is a 6-cylinder, turbocharged diesel engine that produces 120 horsepower. This liquid-cooled engine has a displacement of 414 cubic inches, making it strong enough for most farming tasks. The tractor uses a partial power shift transmission with 20 forward and 20 reverse gears, giving farmers plenty of options for different jobs. This tractor is built to handle tough conditions. It has a three-point hitch at the rear, which can be used to attach various farm tools. The hydraulic system is a closed center type, which helps the tractor work efficiently with different attachments. The John Deere 6800 is quite large, measuring 179.5 inches long, 93 inches wide, and 110.6 inches tall. It weighs 11,000 pounds, making it sturdy and stable for field work. The tractor comes with a comfortable cab for the operator and uses agricultural tires for good traction in farm conditions. With its mix of power, versatility, and comfort, the John Deere 6800 is a reliable choice for many farming operations.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6800 |
| Category | Agricultural tractor |
| Operating weight | 11,000lb |
Engine
| Make | John Deere |
|---|---|
| Model | 6068 |
| Power | 120hp |
| Cylinders | 6 |
| Displacement | 414ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | partial power shift |
|---|---|
| Forward gears | 20 |
| Reverse gears | 20 |
Chassis & drive
| Cab | Cab |
|---|
Hydraulics
| Type | closed center |
|---|
Dimensions
| Length | 179.5in |
|---|---|
| Width | 93in |
| Height | 110.6in |
| Operating weight | 11,000lb |
Head to head
6800 vs. Agricultural median
How the John Deere 6800 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 120 hp | 110 hp | +9% | 57th |
| Engine Displacement | 414 ci | 336 ci | +23% | 70th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 20 | 16 | +25% | 74th |
| Operating Weight | 11,000 lb | 10,914 lb | +1% | 50th |
| Length | 180 in | 173 in | +4% | 57th |
| Width | 93 in | 79.5 in | +17% | 71st |
| Height | 111 in | 111 in | at median | 50th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5120M | 120 hp | — | — | Compare → |
| John Deere 5125ML | 118.68 hp | 8,625 lb | — | Compare → |
| John Deere 5115ML | 115 hp | 7,950 lb | — | Compare → |
| John Deere 6500L | 114 hp | 7,740 lb | — | Compare → |
| John Deere 6510L | 114 hp | 7,740 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agrinar T-120 | 119.3 hp | 4,580 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
| Allis Chalmers D21 Series II | 121 hp | 9,502 lb | 1965–1969 | Compare → |
| AGCO RT115 | 121.4 hp | 12,900 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

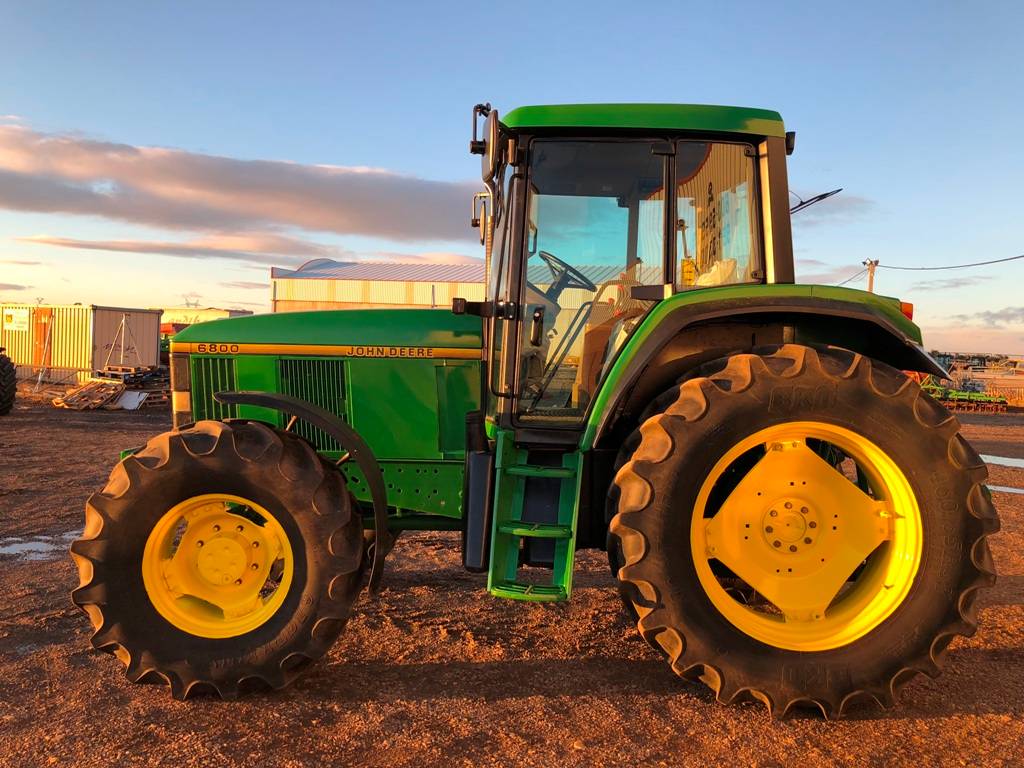

John Deere 6800 photos
FAQ
Common questions
What is the engine power output of the John Deere 6800?
Rated engine output for the John Deere 6800 is 120 hp, delivered by a 6-cylinder engine. The engine displaces 414 ci.
What hydraulics does the John Deere 6800 have?
The John Deere 6800 uses a closed center hydraulic system.
What three-point hitch category does the John Deere 6800 use?
The John Deere 6800 has a Category II/IIIN three-point hitch.
What is the operating weight of the John Deere 6800?
In working trim, the John Deere 6800 comes in at roughly 11,000 lb.
Which transmission does the John Deere 6800 use?
The John Deere 6800 is equipped with a partial power shift transmission with 20 forward gears.
How do I maintain a John Deere 6800?
Routine service for the John Deere 6800 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
