John Deere 9400T
The John Deere 9400T is a powerful crawler tractor built for tough jobs. It has a strong diesel engine with 6 cylinders and 346.53 hp. This engine is very big for its class, with a displacement of 765 ci. The tractor weighs 42,620 lb, which is quite heavy compared to other tractors. This tractor uses tracks instead of wheels, which helps it move well on different types of ground. It has a partial power shift transmission with 24 forward gears and 6 reverse gears. The 9400T has a three-point hitch at the back, which can lift very heavy tools. It also has a power take-off (PTO) that spins at 1000 rpm, useful for running other farm equipment. The tractor's hydraulic system can pump a lot of fluid, making it good for using big tools that need hydraulic power.
ManufacturerJohn DeerePower346.53 hpEngine6-cylTransPartial power shift
Quick specs
- Category
- Crawler
- Engine Power Output
- 347hp
- Operating Weight
- 42,620 lb
- Transmission
- Partial power shift
At a glance
How the 9400T compares
vs. Crawler medianDistribution
Engine Power (hp)
Across all Crawler tractors
346.53 hp · 71st
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The 9400T ranks at the 71st percentile for engine power among recorded crawler tractors.
Overview
About the John Deere 9400T
The John Deere 9400T is a powerful crawler tractor built for tough jobs. It has a strong diesel engine with 6 cylinders and 346.53 hp. This engine is very big for its class, with a displacement of 765 ci. The tractor weighs 42,620 lb, which is quite heavy compared to other tractors. This tractor uses tracks instead of wheels, which helps it move well on different types of ground. It has a partial power shift transmission with 24 forward gears and 6 reverse gears. The 9400T has a three-point hitch at the back, which can lift very heavy tools. It also has a power take-off (PTO) that spins at 1000 rpm, useful for running other farm equipment. The tractor's hydraulic system can pump a lot of fluid, making it good for using big tools that need hydraulic power.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 9400T |
| Category | Crawler tractor |
| Type | Track |
| Operating weight | 42,620lb |
Engine
| Make | John Deere |
|---|---|
| Power | 346.53hp |
| Cylinders | 6 |
| Displacement | 765ci |
| Bore | 5in |
| Stroke | 6.5in |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 6 |
Chassis & drive
| Drive | Track |
|---|---|
| Steering | Electro-hydraulic |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 1,000rpm |
Dimensions
| Operating weight | 42,620lb |
|---|
Head to head
9400T vs. Crawler median
How the John Deere 9400T compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 347 hp | 200 hp | +73% | 71st |
| Engine Displacement | 765 ci | 468 ci | +63% | 78th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 24 | 10 | +140% | 94th |
| Operating Weight | 42,620 lb | 23,320 lb | +83% | 82nd |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 142–192 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 8360RT | 339.86 hp | 35,605 lb | — | Compare → |
| John Deere 8430T | 335 hp | 28,790 lb | — | Compare → |
| John Deere 8370RT | 359.53 hp | — | — | Compare → |
| John Deere 9520T | 333 hp | 43,585 lb | — | Compare → |
| John Deere 8345RT | 329.11 hp | 34,670 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Magnum 315 | 347 hp | 27,800 lb | — | Compare → |
| Big Bud HN350 | 350 hp | 40,000 lb | — | Compare → |
| Big Bud KT350 | 350 hp | 40,000 lb | — | Compare → |
| CaseIH Magnum 340 | 340 hp | 28,230 lb | — | Compare → |
| CaseIH 9170 | 335 hp | — | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

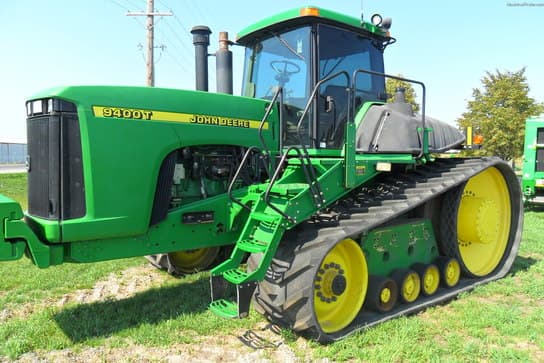

John Deere 9400T photos
FAQ
Common questions
How powerful is the John Deere 9400T?
The John Deere 9400T has an engine power output of 346.53 hp. It is powered by a 6-cylinder engine displacing 765 ci.
What hitch category is the John Deere 9400T?
The John Deere 9400T uses a Category Category 3 hitch.
What is the working weight of the John Deere 9400T?
The operating weight of the John Deere 9400T is approximately 42,620 lb.
What type of transmission does the John Deere 9400T have?
The John Deere 9400T uses a Partial power shift transmission offering 24 forward gears.
What routine service does the John Deere 9400T need?
Regular maintenance for the John Deere 9400T includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
