John Deere 9560R Scraper Special
The John Deere 9560R Scraper Special is a powerful tractor built for heavy-duty work. It has a strong diesel engine with six cylinders and a displacement of 824 ci. This engine is turbocharged and can produce an impressive 560 hp at 2100 rpm. The tractor has a large fuel tank that can hold 350.1 gallons, allowing for long work hours without frequent refueling. This tractor is designed for big jobs and has features to match. It has a long wheelbase of 11.5 ft, which helps with stability. The hydraulic system can pump 48.1 gpm, making it great for operating large attachments. It also has a category 3 hitch, which can handle heavy implements. The 9560R Scraper Special has a tight turning radius of 14.6 ft, making it easy to maneuver for its size. John Deere is known for making reliable farm equipment, and this tractor is no exception.
Key specifications
- Category
- Four-Wheel Drive
- Engine power
- 560hp
Category comparison
9560R Scraper Special compared with its category
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
All recorded Four-Wheel Drive tractors
560 hp · 86th
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The 9560R Scraper Special ranks at the 86th percentile for engine power among recorded four-wheel drive tractors.
Overview
About the John Deere 9560R Scraper Special
The John Deere 9560R Scraper Special is a powerful tractor built for heavy-duty work. It has a strong diesel engine with six cylinders and a displacement of 824 ci. This engine is turbocharged and can produce an impressive 560 hp at 2100 rpm. The tractor has a large fuel tank that can hold 350.1 gallons, allowing for long work hours without frequent refueling. This tractor is designed for big jobs and has features to match. It has a long wheelbase of 11.5 ft, which helps with stability. The hydraulic system can pump 48.1 gpm, making it great for operating large attachments. It also has a category 3 hitch, which can handle heavy implements. The 9560R Scraper Special has a tight turning radius of 14.6 ft, making it easy to maneuver for its size. John Deere is known for making reliable farm equipment, and this tractor is no exception.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 9560R Scraper Special |
| Category | Four-Wheel Drive tractor |
Engine
| Power | 560hp(417.6 kW) |
|---|---|
| Cylinders | 6 |
| Displacement | 824ci(13.5 L) |
Hydraulics
| Pump flow | 48.1gpm(182.1 L/min) |
|---|
Dimensions
| Wheelbase | 138in(3,505 mm) |
|---|
Capacities
| Fuel tank | 350.1gal(1,325 L) |
|---|
Closest alternatives
9560R Scraper Special compared with the nearest models by horsepower
The closest four-wheel drive models to the John Deere 9560R Scraper Special by rated horsepower are the John Deere 9560R and the John Deere 9570R. The John Deere 9560R matches it on rated power. The John Deere 9570R is rated 10 hp higher.
| Spec | John Deere 9560R Scraper Special | John Deere 9560R | John Deere 9570R |
|---|---|---|---|
| Engine power | 560 hp417.6 kW | 560 hp417.6 kW | 570 hp425 kW |
| Operating weight | - | 43,410 lb19,690 kg | 43,550 lb19,754 kg |
| Weight per hp | - | 78 lb/hp47 kg/kW | 76 lb/hp46 kg/kW |
| Displacement | 824 ci13.5 L | 826 ci13.54 L | 912 ci14.95 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | - | Selective gear fixed ratio with full range operator-controlled powershift | Full Power Shift |
Calculators
Calculators for the 9560R Scraper Special
PTO power
About 465 to 504 PTO hp
Estimated from the 560 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 560 hp tractor can run
Maximum size is about a 66.5 ft rotary cutter or a 57 ft tiller. The calculator also sizes discs, plows and balers.
Units
560 hp is 417.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
9560R Scraper Special vs. Four-Wheel Drive median
John Deere 9560R Scraper Special compared with other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 560 hp | 375 hp | +49% | 86th |
| Engine Displacement | 824 ci | 826 ci | 0% | 47th |
| Cylinders | 6 | 6 | at median | 50th |
Medians and percentiles are calculated from the four-wheel drive tractors in the database that have a recorded value for each specification (sample size 152–162 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

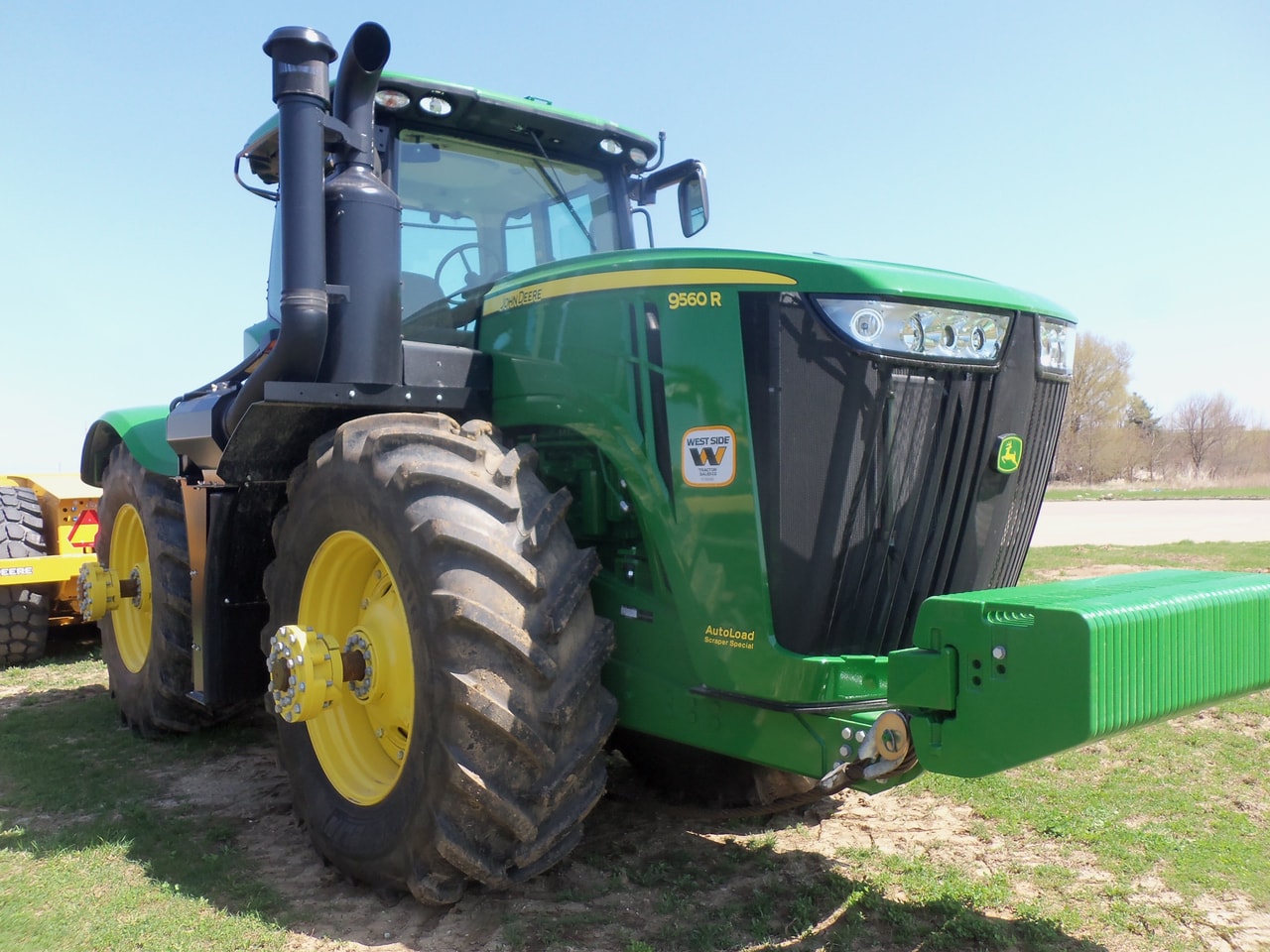

John Deere 9560R Scraper Special photos
FAQ
Frequently asked questions
What is the engine power output of the John Deere 9560R Scraper Special?
Rated engine output for the John Deere 9560R Scraper Special is 560 hp, delivered by a 6-cylinder engine. The engine displaces 824 ci.
What hitch category is the John Deere 9560R Scraper Special?
The John Deere 9560R Scraper Special uses a Category 3 hitch.
What is the fuel capacity of the John Deere 9560R Scraper Special?
The John Deere 9560R Scraper Special's fuel tank holds 350.1 gal.
How do I maintain a John Deere 9560R Scraper Special?
Routine service for the John Deere 9560R Scraper Special covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
