Four-Wheel Drive tractorsSpec sheet
John Deere 9R 540
The John Deere 9R 540 is a powerful tractor built for big farming jobs. It has a strong John Deere JD14 engine with 6 cylinders and 532.4 horsepower. This engine is turbocharged and uses diesel fuel. The tractor has a full power shift transmission with 18 forward gears and 6 reverse gears, giving the driver lots of control. This tractor is big and heavy, weighing 45,980 pounds. It's 312.8 inches long and 147.3 inches tall. The 9R 540 has a closed center hydraulic system and a Category 3 hitch, which means it can handle large implements. The tractor has a comfortable cab for the operator and uses an electric starter. With its size and power, the John Deere 9R 540 is perfect for large-scale farming operations that need a strong, reliable machine.
ManufacturerJohn DeerePower532.4 hp(397.0 kW)Class300+ HP tractors →Engine6-cylinderTransmissionFull power shift
Key specifications
- Category
- Four-Wheel Drive
- Engine power
- 532hp
- Operating weight
- 45,980 lb
- Transmission
- Full power shift
Category comparison
9R 540 compared with its category
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
All recorded Four-Wheel Drive tractors
532.4 hp · 82nd
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The 9R 540 ranks at the 82nd percentile for engine power among recorded four-wheel drive tractors.
Overview
About the John Deere 9R 540
The John Deere 9R 540 is a powerful tractor built for big farming jobs. It has a strong John Deere JD14 engine with 6 cylinders and 532.4 horsepower. This engine is turbocharged and uses diesel fuel. The tractor has a full power shift transmission with 18 forward gears and 6 reverse gears, giving the driver lots of control. This tractor is big and heavy, weighing 45,980 pounds. It's 312.8 inches long and 147.3 inches tall. The 9R 540 has a closed center hydraulic system and a Category 3 hitch, which means it can handle large implements. The tractor has a comfortable cab for the operator and uses an electric starter. With its size and power, the John Deere 9R 540 is perfect for large-scale farming operations that need a strong, reliable machine.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 9R 540 |
| Category | Four-Wheel Drive tractor |
| Operating weight | 45,980lb(20,860 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | JD14 |
| Power | 532.4hp(397 kW) |
| Cylinders | 6 |
| Displacement | 826.9ci(13.55 L) |
| Bore | 5.2in(132.1 mm) |
| Stroke | 6.5in(165.1 mm) |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Cab | Cab |
|---|
Hydraulics
| Type | Closed center pressure/flow compensated |
|---|
Dimensions
| Length | 312.8in(7,945 mm) |
|---|---|
| Height | 147.3in(3,741 mm) |
| Operating weight | 45,980lb(20,860 kg) |
Capacities
| Cooling system | 14.93gal(56.52 L) |
|---|
Closest alternatives
9R 540 compared with the nearest models by horsepower
The closest four-wheel drive models to the John Deere 9R 540 by rated horsepower are the Challenger MT865C and the New Holland TJ530. The Challenger MT865C makes 1.5 hp more and weighs 2,860 lb less. The New Holland TJ530 is rated 2.4 hp lower and weighs 8,020 lb more, at 102 lb per horsepower against 86 lb.
| Spec | John Deere 9R 540 | Challenger MT865C | New Holland TJ530 |
|---|---|---|---|
| Engine power | 532.4 hp397 kW | 533.9 hp398.1 kW | 530 hp395.2 kW |
| Operating weight | 45,980 lb20,856 kg | 43,125 lb19,561 kg | 54,000 lb24,494 kg |
| Weight per hp | 86 lb/hp53 kg/kW | 81 lb/hp49 kg/kW | 102 lb/hp62 kg/kW |
| Displacement | 826.9 ci13.55 L | 1,105 ci18.11 L | 912 ci14.95 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Full power shift | Caterpillar Powershift | Full power shift |
Calculators
Calculators for the 9R 540
PTO power
About 442 to 479 PTO hp
Estimated from the 532.4 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 532.4 hp tractor can run
Maximum size is about a 63 ft rotary cutter or a 54 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
100 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
532.4 hp is 397.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
9R 540 vs. Four-Wheel Drive median
John Deere 9R 540 compared with other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 532 hp | 375 hp | +42% | 82nd |
| Engine Displacement | 827 ci | 826 ci | 0% | 53rd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 18 | 16 | +13% | 86th |
| Operating Weight | 45,980 lb | 37,428 lb | +23% | 80th |
| Length | 313 in | 275 in | +14% | 83rd |
| Height | 147 in | 143 in | +3% | 66th |
Medians and percentiles are calculated from the four-wheel drive tractors in the database that have a recorded value for each specification (sample size 98–162 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

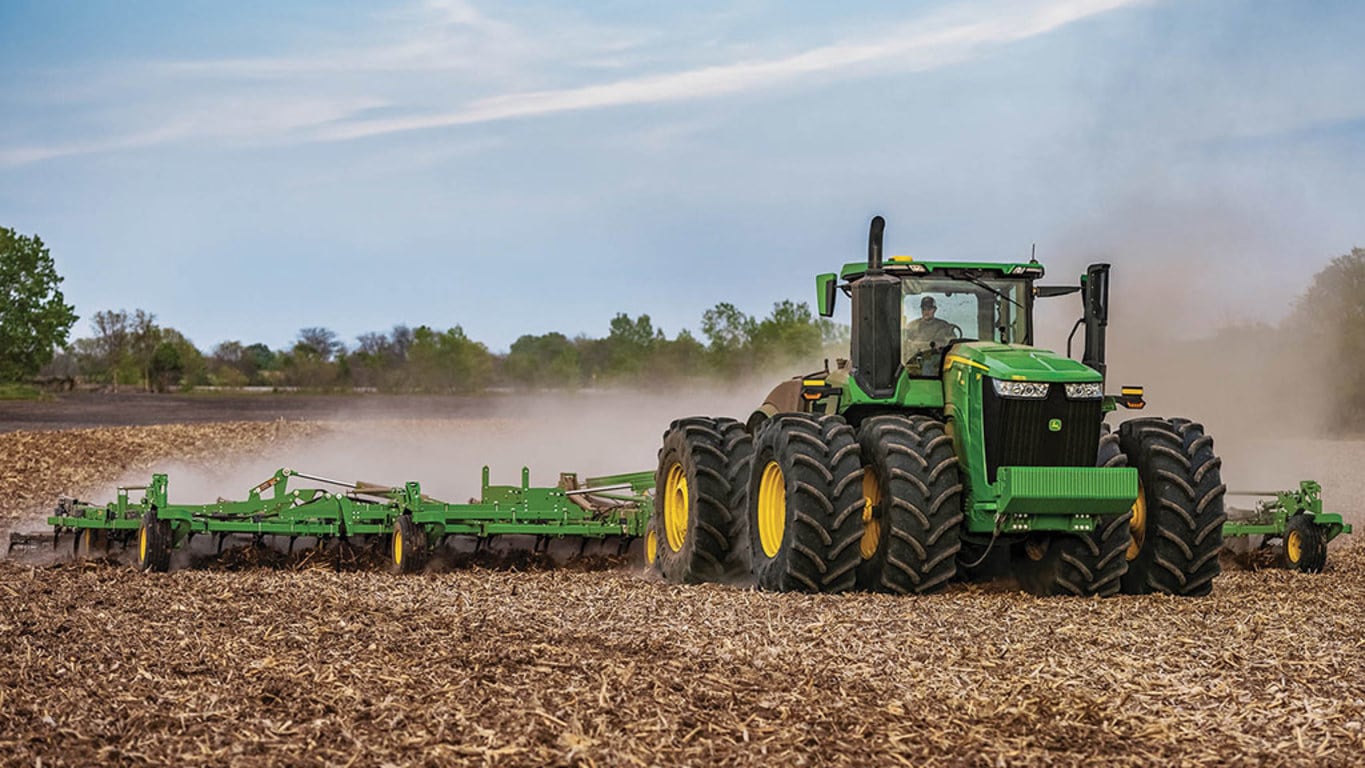

John Deere 9R 540 photos
FAQ
Frequently asked questions
How much horsepower does the John Deere 9R 540 have?
The John Deere 9R 540 produces 532.4 hp from its 6-cylinder engine. Engine displacement is 826.9 ci.
What hitch category is the John Deere 9R 540?
The John Deere 9R 540 uses a Category Category 3 hitch.
How much does the John Deere 9R 540 weigh?
The John Deere 9R 540 weighs about 45,980 lb in operating condition.
What transmission is in the John Deere 9R 540?
Transmission on the John Deere 9R 540 is Full power shift, with 18 forward speeds.
What type of hydraulic system does the John Deere 9R 540 use?
Hydraulics on the John Deere 9R 540 are Closed center pressure/flow compensated.
What maintenance does the John Deere 9R 540 require?
The John Deere 9R 540 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
