UtilityPerformance profile
Kubota B1-16
The Kubota B1-16 is a small utility tractor made from 1985 to 1988. It's a 2WD tractor, which means it has two wheels that drive it forward. The tractor has a manual steering system and a simple gear transmission with 12 forward speeds and 4 reverse speeds. This tractor is powered by a Kubota D950 diesel engine. The engine has 3 cylinders and is cooled by liquid. It can produce 16.5 horsepower, which is on the lower end compared to other tractors. The engine runs at 2600 RPM, which is above average speed. The B1-16 is quite small, measuring 91.3 inches long, 45.3 inches wide, and 48.6 inches tall. It weighs 1422 pounds, making it very light for a tractor. It has an open operator station, which means there's no cabin, and it starts with an electric starter.
ManufacturerKubotaPower16.5 hpEngine3-cylTransUnsynchronized gear
Quick specs
- Category
- Utility
- Engine Power Output
- 17hp
- Operating Weight
- 1,422 lb
- Transmission
- Unsynchronized gear
At a glance
How the B1-16 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
16.5 hp · 4th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The B1-16 ranks at the 4th percentile for engine power among recorded utility tractors.
Overview
About the Kubota B1-16
The Kubota B1-16 is a small utility tractor made from 1985 to 1988. It's a 2WD tractor, which means it has two wheels that drive it forward. The tractor has a manual steering system and a simple gear transmission with 12 forward speeds and 4 reverse speeds. This tractor is powered by a Kubota D950 diesel engine. The engine has 3 cylinders and is cooled by liquid. It can produce 16.5 horsepower, which is on the lower end compared to other tractors. The engine runs at 2600 RPM, which is above average speed. The B1-16 is quite small, measuring 91.3 inches long, 45.3 inches wide, and 48.6 inches tall. It weighs 1422 pounds, making it very light for a tractor. It has an open operator station, which means there's no cabin, and it starts with an electric starter.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | B1-16 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1985–1988 |
| Operating weight | 1,422lb |
Engine
| Make | Kubota |
|---|---|
| Model | D950 |
| Power | 16.5hp |
| Cylinders | 3 |
| Displacement | 56.57ci |
| Bore | 2.95in |
| Stroke | 2.76in |
Transmission
| Type | Unsynchronized gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Dimensions
| Length | 91.3in |
|---|---|
| Width | 45.3in |
| Height | 48.6in |
| Operating weight | 1,422lb |
Head to head
B1-16 vs. Utility median
How the Kubota B1-16 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 16.5 hp | 55 hp | -70% | 4th |
| Engine Displacement | 56.6 ci | 183 ci | -69% | 4th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 1,422 lb | 5,303 lb | -73% | 4th |
| Length | 91.3 in | 137 in | -33% | 5th |
| Width | 45.3 in | 66 in | -31% | 10th |
| Height | 48.6 in | 94.1 in | -48% | 2nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota A-17 | 16.8 hp | 1,455 lb | 1988–1992 | Compare → |
| Kubota B17X | 16.8 hp | 1,268 lb | 2015+ | Compare → |
| Kubota B72 | 16.2 hp | 1,257 lb | 1998–2001 | Compare → |
| Kubota GB170 | 16.8 hp | 1,246 lb | 2002–2003 | Compare → |
| Kubota GB175 | 16.8 hp | 1,246 lb | 2004–2006 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 616 | 16.5 hp | 1,499 lb | 1972–1973 | Compare → |
| Agria Hispania 7100 | 16 hp | — | — | Compare → |
| Ariens GT17 | 17 hp | 926 lb | 1979–1987 | Compare → |
| Bolens G172 | 17 hp | 1,056 lb | — | Compare → |
| Bolens G174 | 17 hp | 1,144 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

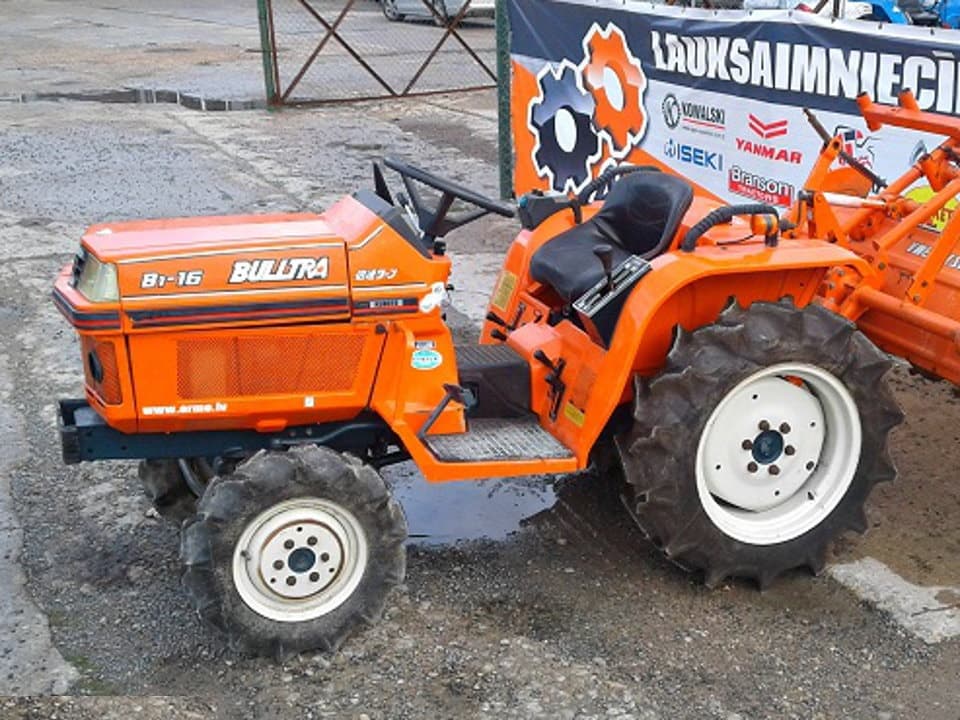

Kubota B1-16 photos
FAQ
Common questions
When was the Kubota B1-16 made?
The Kubota B1-16 was manufactured from 1985 to 1988.
What is the operating weight of the Kubota B1-16?
In working trim, the Kubota B1-16 comes in at roughly 1,422 lb.
Which transmission does the Kubota B1-16 use?
The Kubota B1-16 is equipped with an Unsynchronized gear transmission with 12 forward gears.
What is the engine power output of the Kubota B1-16?
Rated engine output for the Kubota B1-16 is 16.5 hp, delivered by a 3-cylinder engine. The engine displaces 56.57 ci.
How do I maintain a Kubota B1-16?
Routine service for the Kubota B1-16 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
