UtilityPerformance profile
Kubota GB175
The Kubota GB175 is a small but capable utility tractor. It's part of the sub-compact category, which means it's great for tight spaces and light work. This tractor has four-wheel drive, making it good on different types of ground. It has a gear transmission with 6 forward gears and 2 reverse gears, giving you options for different tasks. Under the hood, the GB175 has a Kubota D1005 engine. This engine is diesel-powered and has 3 cylinders. It's liquid-cooled, which helps keep it running smoothly. The engine puts out 16.8 horsepower, which is on the lower end for tractors but good for its size. It has agricultural tires on both front and back, perfect for farm work. The tractor is compact, measuring 80.5 inches long, 42.1 inches wide, and 72.2 inches tall. It weighs 1,246 pounds, which is quite light for a tractor. Kubota made this model from 2004 to 2006. It's a good choice for small farms or big gardens. The power steering makes it easy to handle, and its small size lets it work in tight spots where bigger tractors can't go. While it's not the most powerful tractor out there, it's a reliable helper for lighter farm tasks.
ManufacturerKubotaPower16.8 hpEngine3-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 17hp
- Operating Weight
- 1,246 lb
- Transmission
- Gear
At a glance
How the GB175 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
16.8 hp · 4th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The GB175 ranks at the 4th percentile for engine power among recorded utility tractors.
Overview
About the Kubota GB175
The Kubota GB175 is a small but capable utility tractor. It's part of the sub-compact category, which means it's great for tight spaces and light work. This tractor has four-wheel drive, making it good on different types of ground. It has a gear transmission with 6 forward gears and 2 reverse gears, giving you options for different tasks. Under the hood, the GB175 has a Kubota D1005 engine. This engine is diesel-powered and has 3 cylinders. It's liquid-cooled, which helps keep it running smoothly. The engine puts out 16.8 horsepower, which is on the lower end for tractors but good for its size. It has agricultural tires on both front and back, perfect for farm work. The tractor is compact, measuring 80.5 inches long, 42.1 inches wide, and 72.2 inches tall. It weighs 1,246 pounds, which is quite light for a tractor. Kubota made this model from 2004 to 2006. It's a good choice for small farms or big gardens. The power steering makes it easy to handle, and its small size lets it work in tight spots where bigger tractors can't go. While it's not the most powerful tractor out there, it's a reliable helper for lighter farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | GB175 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2004–2006 |
| Operating weight | 1,246lb |
Engine
| Make | Kubota |
|---|---|
| Model | D1005 |
| Power | 16.8hp |
| Cylinders | 3 |
| Displacement | 61.1ci |
| Bore | 2.99in |
| Stroke | 2.9in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 80.5in |
|---|---|
| Width | 42.1in |
| Height | 72.2in |
| Operating weight | 1,246lb |
Head to head
GB175 vs. Utility median
How the Kubota GB175 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 16.8 hp | 55 hp | -69% | 4th |
| Engine Displacement | 61.1 ci | 183 ci | -67% | 6th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 1,246 lb | 5,303 lb | -77% | 2nd |
| Length | 80.5 in | 137 in | -41% | 2nd |
| Width | 42.1 in | 66 in | -36% | 5th |
| Height | 72.2 in | 94.1 in | -23% | 17th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota A-17 | 16.8 hp | 1,455 lb | 1988–1992 | Compare → |
| Kubota B17X | 16.8 hp | 1,268 lb | 2015+ | Compare → |
| Kubota GB170 | 16.8 hp | 1,246 lb | 2002–2003 | Compare → |
| Kubota JB17X | 16.8 hp | 1,268 lb | 2009–2019 | Compare → |
| Kubota KB17X | 16.8 hp | 1,521 lb | 2009–2014 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ariens GT17 | 17 hp | 926 lb | 1979–1987 | Compare → |
| Bolens G172 | 17 hp | 1,056 lb | — | Compare → |
| Bolens G174 | 17 hp | 1,144 lb | — | Compare → |
| Bolens H1704 | 17 hp | 1,268 lb | — | Compare → |
| Allis Chalmers 616 | 16.5 hp | 1,499 lb | 1972–1973 | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

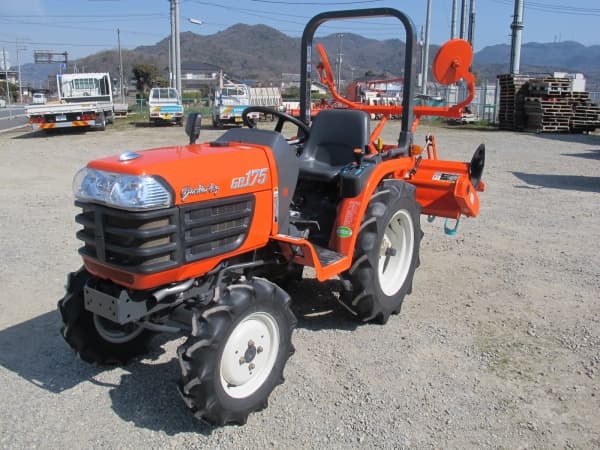

Kubota GB175 photos
FAQ
Common questions
When was the Kubota GB175 made?
The Kubota GB175 was manufactured from 2004 to 2006.
What is the operating weight of the Kubota GB175?
In working trim, the Kubota GB175 comes in at roughly 1,246 lb.
Which transmission does the Kubota GB175 use?
The Kubota GB175 is equipped with a Gear transmission with 6 forward gears.
What hitch category is the Kubota GB175?
The Kubota GB175 uses a Category Category 3 hitch.
What is the engine power output of the Kubota GB175?
Rated engine output for the Kubota GB175 is 16.8 hp, delivered by a 3-cylinder engine. The engine displaces 61.1 ci.
How do I maintain a Kubota GB175?
Routine service for the Kubota GB175 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
