Sub-CompactPerformance profile
Kubota B7510DTN
The Kubota B7510DTN is a compact tractor that packs a punch. It's powered by a Kubota D1005-E-D16 engine, which is a liquid-cooled, 3-cylinder powerhouse. This engine puts out 21 hp at 2600 rpm, making it strong enough for many farm tasks. The tractor has a gear transmission with 6 forward gears and 2 reverse gears, giving you good control over your speed. This tractor is built to be tough but not too big. It's 90 inches long and 36 inches wide, so it can fit in tight spaces. It weighs 1322.8 lb, which helps it stay stable during work. The B7510DTN has a Three-Point Hitch at the back, which can lift up to 1300.8 lb. This makes it great for attaching and using different tools. It can turn in a small space, with a turning radius of just 6.6 feet. The tractor can also move pretty fast, with a top speed of 8.3 miles per hour.
ManufacturerKubotaPower21 hpEngine3-cylTransgear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 21hp
- Operating Weight
- 1,322.8 lb
- Transmission
- gear
At a glance
How the B7510DTN compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
21 hp · 28th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The B7510DTN ranks at the 28th percentile for engine power among recorded sub-compact tractors.
Overview
About the Kubota B7510DTN
The Kubota B7510DTN is a compact tractor that packs a punch. It's powered by a Kubota D1005-E-D16 engine, which is a liquid-cooled, 3-cylinder powerhouse. This engine puts out 21 hp at 2600 rpm, making it strong enough for many farm tasks. The tractor has a gear transmission with 6 forward gears and 2 reverse gears, giving you good control over your speed. This tractor is built to be tough but not too big. It's 90 inches long and 36 inches wide, so it can fit in tight spaces. It weighs 1322.8 lb, which helps it stay stable during work. The B7510DTN has a Three-Point Hitch at the back, which can lift up to 1300.8 lb. This makes it great for attaching and using different tools. It can turn in a small space, with a turning radius of just 6.6 feet. The tractor can also move pretty fast, with a top speed of 8.3 miles per hour.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | B7510DTN |
| Category | Sub-Compact tractor |
| Operating weight | 1,322.8lb |
Engine
| Make | Kubota |
|---|---|
| Model | D1005-E-D16 |
| Power | 21hp |
| Cylinders | 3 |
| Displacement | 61.1ci |
Transmission
| Type | gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Dimensions
| Length | 90in |
|---|---|
| Width | 36in |
| Operating weight | 1,322.8lb |
Capacities
| Cooling system | 1.1gal |
|---|
Head to head
B7510DTN vs. Sub-Compact median
How the Kubota B7510DTN compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21 hp | 26.9 hp | -22% | 28th |
| Engine Displacement | 61.1 ci | 91.4 ci | -33% | 21st |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 1,323 lb | 2,700 lb | -51% | 13th |
| Length | 90 in | 113 in | -21% | 16th |
| Width | 36 in | 50.7 in | -29% | 3rd |
| 3-Point Hitch Capacity | 1,301 lb | 1,433 lb | -9% | 37th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 97–816 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota B2320N | 20.9 hp | 1,335 lb | 2008–2015 | Compare → |
| Kubota KB21X | 20.7 hp | 1,609 lb | 2009–2014 | Compare → |
| Kubota KB205 | 20.3 hp | — | 2008–2009 | Compare → |
| Kubota B1600 | 20 hp | 1,410 lb | 1979–1982 | Compare → |
| Kubota B1702 | 22 hp | 1,422 lb | 1981–1985 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT120 | 21 hp | 2,055 lb | 2008–2010 | Compare → |
| Bolens G212 G2102 | 21 hp | 1,588 lb | — | Compare → |
| Bolens G214 G2104 | 21 hp | 1,676 lb | — | Compare → |
| Branson 2100 | 21 hp | 1,891 lb | — | Compare → |
| Bobcat CT1021 | 21.1 hp | 1,488 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

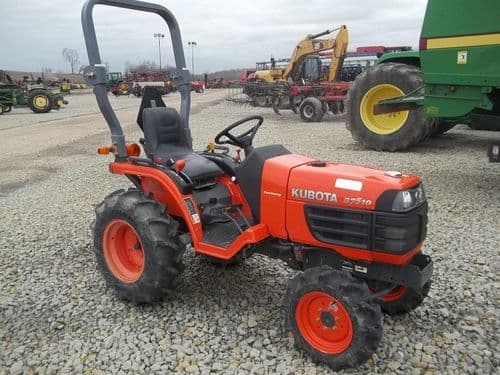

Kubota B7510DTN photos
FAQ
Common questions
How much horsepower does the Kubota B7510DTN have?
The Kubota B7510DTN produces 21 hp from its 3-cylinder engine. Engine displacement is 61.1 ci.
How much does the Kubota B7510DTN weigh?
The Kubota B7510DTN weighs about 1,322.8 lb in operating condition.
What transmission is in the Kubota B7510DTN?
Transmission on the Kubota B7510DTN is gear, with 6 forward speeds.
What three-point hitch category does the Kubota B7510DTN use?
The Kubota B7510DTN has a Category I three-point hitch rated to lift 1,300.8 lb.
What maintenance does the Kubota B7510DTN require?
Like any tractor, the Kubota B7510DTN needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
