Same brandLawn and Garden tractorsSpec sheet
Bolens G214 G2104

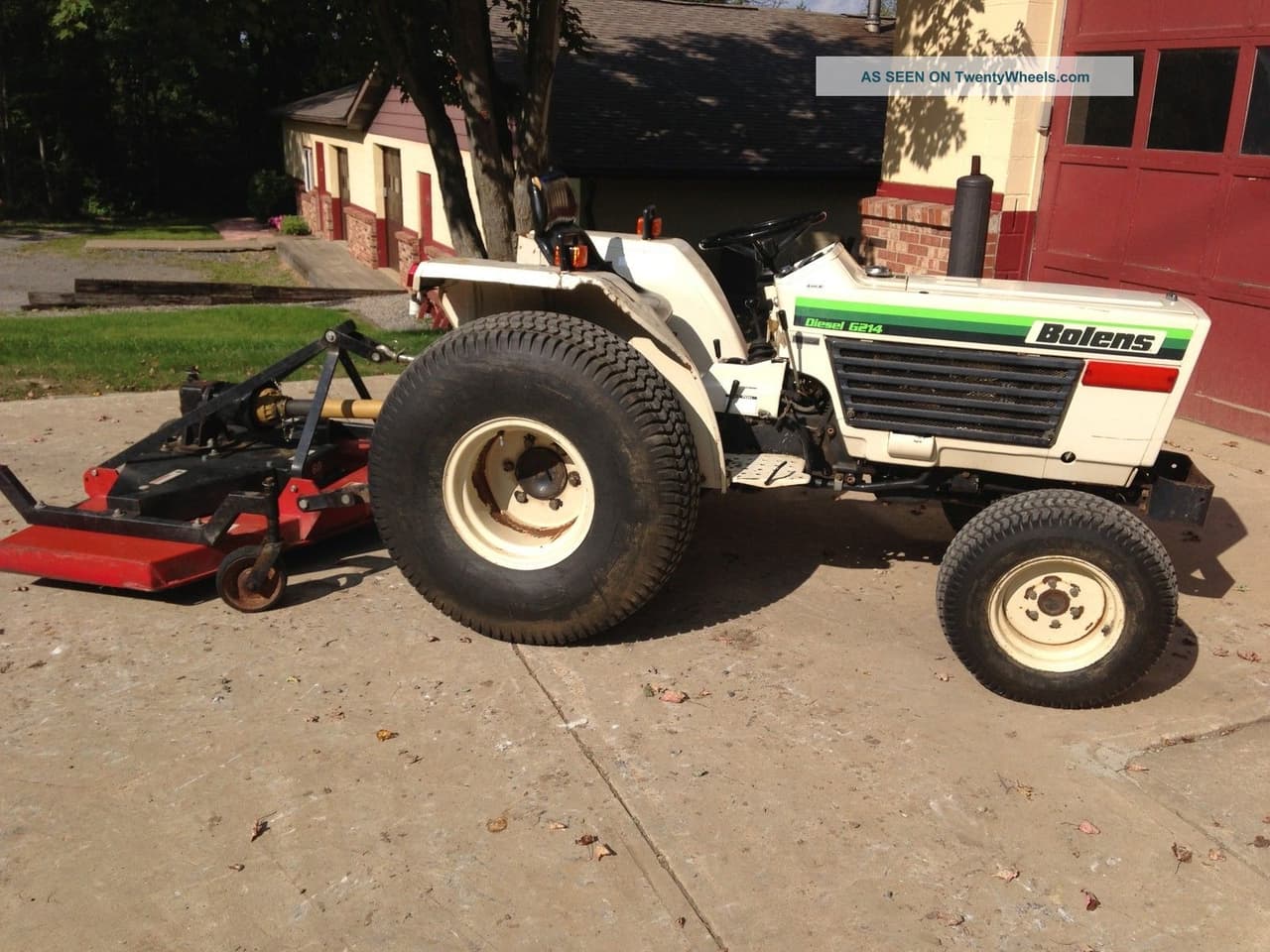

The Bolens G214 G2104 is a compact tractor built for farm work. It has a strong Isuzu diesel engine with three cylinders. This engine can produce 21 horsepower, which is good for its size. The tractor has a liquid-cooling system to keep the engine running smoothly. This Bolens model has a gear transmission with 12 forward gears and 4 reverse gears. This gives the driver lots of options for different tasks. The tractor is 105.5 inches long, 42.9 inches wide, and 75.2 inches tall. It weighs 1676 pounds, making it sturdy but not too heavy. The G214 G2104 has agricultural tires in the front and back, perfect for farm use. It also has an open operator station, allowing the driver to easily see their surroundings.
Key specifications
- Category
- Lawn and Garden
- Engine power
- 21hp
- Operating weight
- 1,676 lb
- Transmission
- Gear
Category comparison
G214 G2104 compared with its category
vs. Lawn and Garden medianDistribution
Engine Power (hp)
All recorded Lawn and Garden tractors
21 hp · 65th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The G214 G2104 ranks at the 65th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Bolens G214 G2104
The Bolens G214 G2104 is a compact tractor built for farm work. It has a strong Isuzu diesel engine with three cylinders. This engine can produce 21 horsepower, which is good for its size. The tractor has a liquid-cooling system to keep the engine running smoothly. This Bolens model has a gear transmission with 12 forward gears and 4 reverse gears. This gives the driver lots of options for different tasks. The tractor is 105.5 inches long, 42.9 inches wide, and 75.2 inches tall. It weighs 1676 pounds, making it sturdy but not too heavy. The G214 G2104 has agricultural tires in the front and back, perfect for farm use. It also has an open operator station, allowing the driver to easily see their surroundings.
Full specifications
Recorded specifications
General
| Manufacturer | Bolens |
|---|---|
| Model | G214 G2104 |
| Category | Lawn and Garden tractor |
| Operating weight | 1,676lb(760.2 kg) |
Engine
| Make | Isuzu |
|---|---|
| Model | E3AF1 |
| Power | 21hp(15.66 kW) |
| Cylinders | 3 |
| Displacement | 71.4ci(1.17 L) |
| Bore | 2.99in(75.95 mm) |
| Stroke | 3.39in(86.11 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Cab | Open |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 105.5in(2,680 mm) |
|---|---|
| Width | 42.9in(1,090 mm) |
| Height | 75.2in(1,910 mm) |
| Operating weight | 1,676lb(760.2 kg) |
Capacities
| Cooling system | 1.85gal(7 L) |
|---|
Closest alternatives
G214 G2104 compared with the nearest models by horsepower
The closest lawn and garden models to the Bolens G214 G2104 by rated horsepower are the Husqvarna YTH21K46 and the Simplicity Citation 21/48. The Husqvarna YTH21K46 matches it on rated power and weighs 1,240 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Simplicity Citation 21/48 matches it on rated power and weighs 710 lb less, carrying 46 lb per horsepower against 80 lb. Of the 3 models, the G214 G2104 has the highest weight per horsepower at 80 lb per hp.
| Spec | Bolens G214 G2104 | Husqvarna YTH21K46 | Simplicity Citation 21/48 |
|---|---|---|---|
| Engine power | 21 hp15.7 kW | 21 hp15.7 kW | 21 hp15.7 kW |
| Operating weight | 1,676 lb760 kg | 439 lb199 kg | 968 lb439 kg |
| Weight per hp | 80 lb/hp49 kg/kW | 21 lb/hp13 kg/kW | 46 lb/hp28 kg/kW |
| Displacement | 71.4 ci1.17 L | 36.4 ci0.6 L | 38.3 ci0.63 L |
| Cylinders | 3 | 1 | 2 |
| Transmission | Gear | Belt-driven hydrostatic | Hydrostatic |
| Drive | - | 2WD | 2WD |
| Years built | - | 2012+ | 2006-2009 |
Calculators
Calculators for the G214 G2104
PTO power
About 17 to 19 PTO hp
Estimated from the 21 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 21 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
93 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
21 hp is 15.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Bolens G214 G2104
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Isuzu E3AF1Amazon
Fits the Isuzu E3AF1 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Isuzu E3AF1Amazon
Fits the Isuzu E3AF1 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Isuzu E3AF1Amazon
Fits the Isuzu E3AF1 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Isuzu E3AF1Amazon
Fits the Isuzu E3AF1 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Bolens G214 G2104 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Bolens G214 G2104 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Bolens G214 G2104 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
G214 G2104 vs. Lawn and Garden median
Bolens G214 G2104 compared with other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21 hp | 18 hp | +17% | 65th |
| Engine Displacement | 71.4 ci | 41.1 ci | +74% | 87th |
| Cylinders | 3 | 2 | +50% | 87th |
| Forward Gears | 12 | 6 | +100% | 92nd |
| Operating Weight | 1,676 lb | 738 lb | +127% | 81st |
| Length | 106 in | 71.7 in | +47% | 90th |
| Width | 42.9 in | 43.3 in | -1% | 47th |
| Height | 75.2 in | 42.9 in | +75% | 92nd |
Medians and percentiles are calculated from the lawn and garden tractors in the database that have a recorded value for each specification (sample size 152–380 models).
Same manufacturer
Other Bolens models
Other manufacturers
Models with similar horsepower
Gallery
Bolens G214 G2104 photos
FAQ
Frequently asked questions
How powerful is the Bolens G214 G2104?
The Bolens G214 G2104 has an engine power output of 21 hp. It is powered by a 3-cylinder engine displacing 71.4 ci.
What type of hydraulic system does the Bolens G214 G2104 use?
Hydraulics on the Bolens G214 G2104 are Open Center.
What is the working weight of the Bolens G214 G2104?
The operating weight of the Bolens G214 G2104 is approximately 1,676 lb.
What type of transmission does the Bolens G214 G2104 have?
The Bolens G214 G2104 uses a Gear transmission offering 12 forward gears.
What routine service does the Bolens G214 G2104 need?
Regular maintenance for the Bolens G214 G2104 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
