UtilityPerformance profile
Kubota B7510HSD
The Kubota B7510HSD is a compact utility tractor designed for various farm and landscaping tasks. It's powered by a Kubota D1005-E-D16 engine, which is a 3-cylinder diesel engine with liquid cooling. This engine produces 21 hp at 2600 rpm, which is below average power for tractors but suitable for light to medium-duty work. The tractor has a hydrostatic transmission with 2 forward and 2 reverse gears, making it easy to operate. This Kubota model is quite small, measuring 91.2 inches long and 43.2 inches wide. It weighs 1366.9 lb, which is very light compared to other tractors. The B7510HSD features a Category 1 three-point hitch at the rear, capable of lifting 1058.3 lb. It has good maneuverability with a turn radius of 6.6 feet and can reach speeds up to 9.7 mph. The tractor also has a ground clearance of 12 inches, which helps when working on uneven terrain or over crops.
ManufacturerKubotaPower21 hpEngine3-cylTransHST (Hydrostatic Transmission) 2 range
Quick specs
- Category
- Utility
- Engine Power Output
- 21hp
- Operating Weight
- 1,366.9 lb
- Transmission
- HST (Hydrostatic Transmission) 2 range
At a glance
How the B7510HSD compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
21 hp · 9th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The B7510HSD ranks at the 9th percentile for engine power among recorded utility tractors.
Overview
About the Kubota B7510HSD
The Kubota B7510HSD is a compact utility tractor designed for various farm and landscaping tasks. It's powered by a Kubota D1005-E-D16 engine, which is a 3-cylinder diesel engine with liquid cooling. This engine produces 21 hp at 2600 rpm, which is below average power for tractors but suitable for light to medium-duty work. The tractor has a hydrostatic transmission with 2 forward and 2 reverse gears, making it easy to operate. This Kubota model is quite small, measuring 91.2 inches long and 43.2 inches wide. It weighs 1366.9 lb, which is very light compared to other tractors. The B7510HSD features a Category 1 three-point hitch at the rear, capable of lifting 1058.3 lb. It has good maneuverability with a turn radius of 6.6 feet and can reach speeds up to 9.7 mph. The tractor also has a ground clearance of 12 inches, which helps when working on uneven terrain or over crops.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | B7510HSD |
| Category | Utility tractor |
| Operating weight | 1,366.9lb |
Engine
| Make | Kubota |
|---|---|
| Model | D1005-E-D16 |
| Power | 21hp |
| Cylinders | 3 |
| Displacement | 61.1ci |
Transmission
| Type | HST (Hydrostatic Transmission) 2 range |
|---|---|
| Forward gears | 2 |
| Reverse gears | 2 |
Dimensions
| Length | 91.2in |
|---|---|
| Width | 43.2in |
| Operating weight | 1,366.9lb |
Capacities
| Cooling system | 1.1gal |
|---|
Head to head
B7510HSD vs. Utility median
How the Kubota B7510HSD compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21 hp | 55 hp | -62% | 9th |
| Engine Displacement | 61.1 ci | 183 ci | -67% | 6th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 2 | 12 | -83% | 1st |
| Operating Weight | 1,367 lb | 5,303 lb | -74% | 4th |
| Length | 91.2 in | 137 in | -33% | 5th |
| Width | 43.2 in | 66 in | -35% | 7th |
| 3-Point Hitch Capacity | 1,058 lb | 3,197 lb | -67% | 6th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota B2100 | 21 hp | 1,500 lb | 1995–1999 | Compare → |
| Kubota B2110 | 21 hp | 1,472 lb | 2000–2005 | Compare → |
| Kubota B7500 | 21 hp | 1,323 lb | 2000–2003 | Compare → |
| Kubota B7510 | 21 hp | 1,323 lb | 2004–2007 | Compare → |
| Kubota B7510DT | 21 hp | 1,322.8 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT120 | 21 hp | 2,055 lb | 2008–2010 | Compare → |
| Bolens G212 G2102 | 21 hp | 1,588 lb | — | Compare → |
| Bolens G214 G2104 | 21 hp | 1,676 lb | — | Compare → |
| Branson 2100 | 21 hp | 1,891 lb | — | Compare → |
| Bobcat CT1021 | 21.1 hp | 1,488 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models

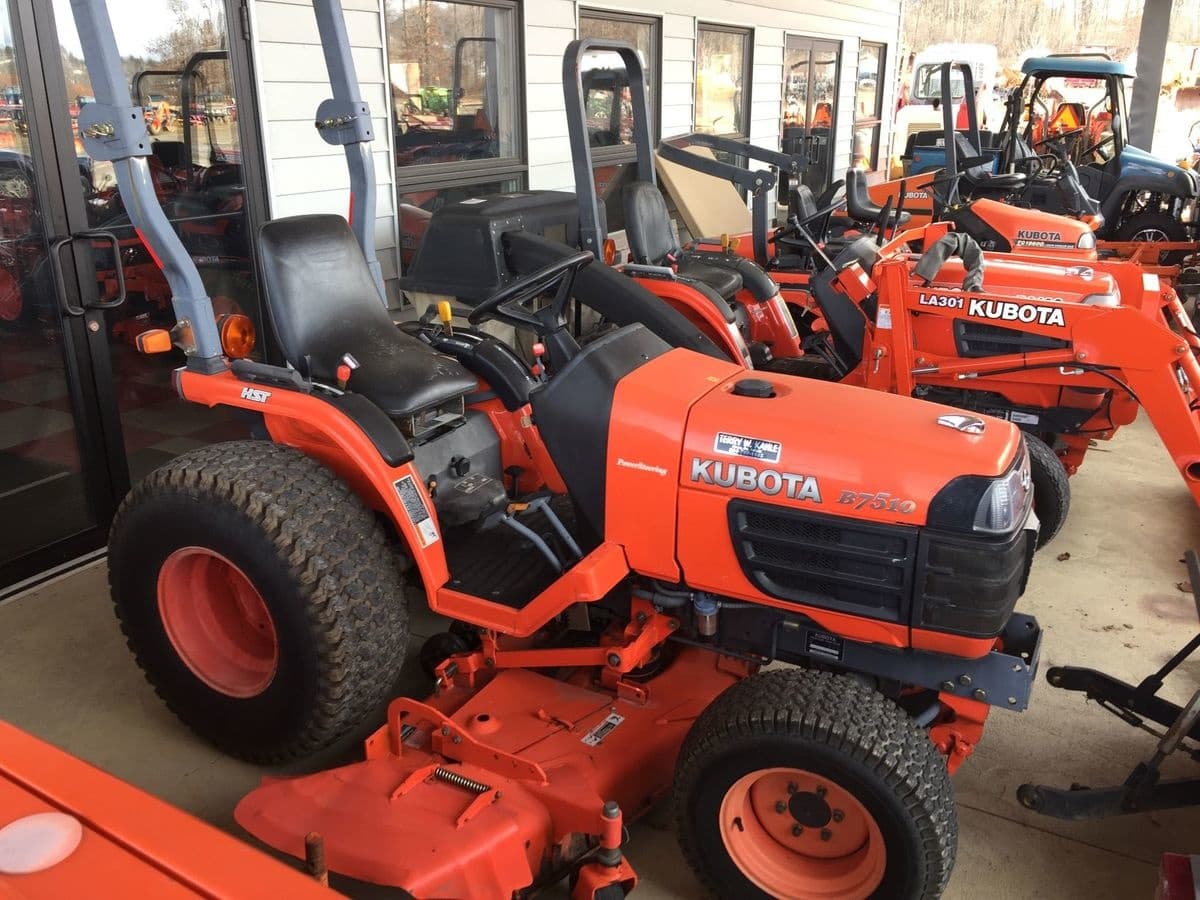

Gallery
Kubota B7510HSD photos
FAQ
Common questions
How powerful is the Kubota B7510HSD?
The Kubota B7510HSD has an engine power output of 21 hp. It is powered by a 3-cylinder engine displacing 61.1 ci.
What hitch category is the Kubota B7510HSD?
The Kubota B7510HSD uses a Category Category 1 hitch with a lift capacity of 1,058.3 lb.
What is the working weight of the Kubota B7510HSD?
The operating weight of the Kubota B7510HSD is approximately 1,366.9 lb.
What type of transmission does the Kubota B7510HSD have?
The Kubota B7510HSD uses a HST (Hydrostatic Transmission) 2 range transmission offering 2 forward gears.
What routine service does the Kubota B7510HSD need?
Regular maintenance for the Kubota B7510HSD includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
