Kubota L3560GSTRC
The Kubota L3560GSTRC is a utility tractor that packs a punch in a compact size. It's 115 inches long, 60 inches wide, and 98.4 inches tall, making it easy to maneuver in tight spaces. This tractor weighs 3,395.2 pounds, which is on the lighter side compared to many other tractors. Under the hood, you'll find a Kubota diesel engine with three cylinders. It has 37 horsepower, which is about average for its class. The engine is liquid-cooled and runs at 2,700 RPM, which is very high compared to most tractors. It has a GST transmission with 12 forward gears and 8 reverse gears, giving you plenty of options for different tasks. The tractor also has a three-point hitch at the back that can lift up to 2,645.6 pounds, which is above average. For powering attachments, it has a PTO (Power Take-Off) that can run at 540 or 2,000 RPM.
ManufacturerKubotaPower37 hpEngine3-cylTransGST
Quick specs
- Category
- Utility
- Engine Power Output
- 37hp
- Operating Weight
- 3,395.2 lb
- Transmission
- GST
At a glance
How the L3560GSTRC compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
37 hp · 30th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3560GSTRC ranks at the 30th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3560GSTRC
The Kubota L3560GSTRC is a utility tractor that packs a punch in a compact size. It's 115 inches long, 60 inches wide, and 98.4 inches tall, making it easy to maneuver in tight spaces. This tractor weighs 3,395.2 pounds, which is on the lighter side compared to many other tractors. Under the hood, you'll find a Kubota diesel engine with three cylinders. It has 37 horsepower, which is about average for its class. The engine is liquid-cooled and runs at 2,700 RPM, which is very high compared to most tractors. It has a GST transmission with 12 forward gears and 8 reverse gears, giving you plenty of options for different tasks. The tractor also has a three-point hitch at the back that can lift up to 2,645.6 pounds, which is above average. For powering attachments, it has a PTO (Power Take-Off) that can run at 540 or 2,000 RPM.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L3560GSTRC |
| Category | Utility tractor |
| Operating weight | 3,395.2lb |
Engine
| Make | Kubota |
|---|---|
| Model | L3560GSTRC |
| Power | 37hp |
| Cylinders | 3 |
| Displacement | 148.5ci |
| Bore | 3.5in |
| Stroke | 4.1in |
Transmission
| Type | GST |
|---|---|
| Forward gears | 12 |
| Reverse gears | 8 |
Chassis & drive
| Steering | Hydrostatic power |
|---|---|
| Brakes | Wet disc |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 115in |
|---|---|
| Width | 60in |
| Height | 98.4in |
| Operating weight | 3,395.2lb |
Head to head
L3560GSTRC vs. Utility median
How the Kubota L3560GSTRC compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 37 hp | 55 hp | -33% | 30th |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,395 lb | 5,303 lb | -36% | 28th |
| Length | 115 in | 137 in | -16% | 20th |
| Width | 60 in | 66 in | -9% | 37th |
| Height | 98.4 in | 94.1 in | +5% | 62nd |
| 3-Point Hitch Capacity | 2,646 lb | 3,197 lb | -17% | 35th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota KL38 | 37 hp | — | 1999–2005 | Compare → |
| Kubota L3540 | 37 hp | 3,395 lb | 2007–2013 | Compare → |
| Kubota L3540GST | 37 hp | 3,296 lb | — | Compare → |
| Kubota L3560DTRC | 37 hp | 3,351.1 lb | — | Compare → |
| Kubota L3560HSTRC | 37 hp | 3,494.4 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 18-36 | 36.4 hp | 9,250 lb | — | Compare → |
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

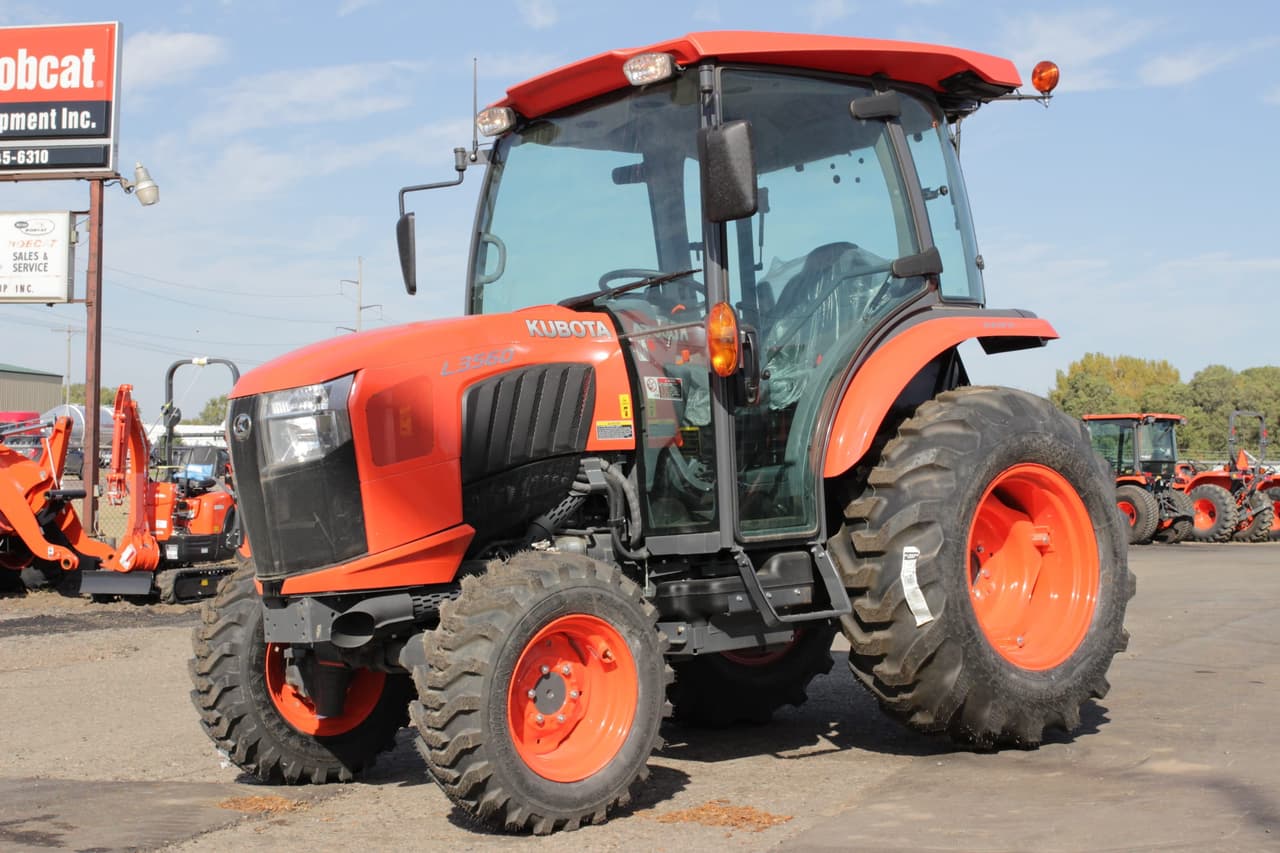

Kubota L3560GSTRC photos
FAQ
Common questions
How powerful is the Kubota L3560GSTRC?
The Kubota L3560GSTRC has an engine power output of 37 hp. It is powered by a 3-cylinder engine displacing 148.5 ci.
What three-point hitch category does the Kubota L3560GSTRC use?
The Kubota L3560GSTRC has a Category I three-point hitch rated to lift 2,645.6 lb.
What is the working weight of the Kubota L3560GSTRC?
The operating weight of the Kubota L3560GSTRC is approximately 3,395.2 lb.
What type of transmission does the Kubota L3560GSTRC have?
The Kubota L3560GSTRC uses a GST transmission offering 12 forward gears.
What routine service does the Kubota L3560GSTRC need?
Regular maintenance for the Kubota L3560GSTRC includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
