Utility tractorsSpec sheet
Kubota L3560HSTRC
The Kubota L3560HSTRC is a utility tractor built for tough jobs on the farm. It has a strong 37 hp diesel engine with three cylinders. This engine is liquid-cooled and runs at 2700 rpm, which is very fast compared to other tractors. The tractor uses a special transmission called HST Plus, which makes it easy to change speeds smoothly. This Kubota tractor is a 4-wheel drive machine, which helps it work well in different conditions. It's not too big, measuring 115 inches long, 60 inches wide, and 98.4 inches tall. The tractor weighs 3494.4 pounds, which is about average for its size. It has a three-point hitch that can lift up to 2645.6 pounds, which is more than many similar tractors. The tractor also has two PTO speeds: 540 rpm and 2000 rpm. This lets you use different tools with the tractor. One cool feature is its tight turning radius of 8.9 feet, making it easy to move around in small spaces.
ManufacturerKubotaPower37 hp(27.6 kW)Class25–40 HP tractors →Engine3-cylinderTransmissionHST Plus (Hydrostatic Transmission)
Key specifications
- Category
- Utility
- Engine power
- 37hp
- Operating weight
- 3,494.4 lb
- Transmission
- HST Plus (Hydrostatic Transmission)
Category comparison
L3560HSTRC compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
37 hp · 30th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3560HSTRC ranks at the 30th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3560HSTRC
The Kubota L3560HSTRC is a utility tractor built for tough jobs on the farm. It has a strong 37 hp diesel engine with three cylinders. This engine is liquid-cooled and runs at 2700 rpm, which is very fast compared to other tractors. The tractor uses a special transmission called HST Plus, which makes it easy to change speeds smoothly. This Kubota tractor is a 4-wheel drive machine, which helps it work well in different conditions. It's not too big, measuring 115 inches long, 60 inches wide, and 98.4 inches tall. The tractor weighs 3494.4 pounds, which is about average for its size. It has a three-point hitch that can lift up to 2645.6 pounds, which is more than many similar tractors. The tractor also has two PTO speeds: 540 rpm and 2000 rpm. This lets you use different tools with the tractor. One cool feature is its tight turning radius of 8.9 feet, making it easy to move around in small spaces.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L3560HSTRC |
| Category | Utility tractor |
| Type | 4WD |
| Operating weight | 3,494.4lb(1,585 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | L3560HSTRC |
| Power | 37hp(27.59 kW) |
| Cylinders | 3 |
| Displacement | 148.5ci(2.43 L) |
| Bore | 3.5in(88.9 mm) |
| Stroke | 4.1in(104.1 mm) |
Transmission
| Type | HST Plus (Hydrostatic Transmission) |
|---|---|
| Forward gears | 6 |
| Reverse gears | 6 |
Chassis & drive
| Drive | 4WD |
|---|---|
| Steering | Hydrostatic power |
| Brakes | Wet disc type |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 115in(2,921 mm) |
|---|---|
| Width | 60in(1,524 mm) |
| Height | 98.4in(2,499 mm) |
| Operating weight | 3,494.4lb(1,585 kg) |
Closest alternatives
L3560HSTRC compared with the nearest models by horsepower
Among utility tractors, the Kubota L3540 and the Kubota L3540GST are closest to the Kubota L3560HSTRC in rated horsepower. The Kubota L3540 matches it on rated power and weighs 100 lb less. The Kubota L3540GST matches it on rated power and weighs 200 lb less. Of the 3 models, the L3560HSTRC has the highest weight per horsepower at 94 lb per hp.
| Spec | Kubota L3560HSTRC | Kubota L3540 | Kubota L3540GST |
|---|---|---|---|
| Engine power | 37 hp27.6 kW | 37 hp27.6 kW | 37 hp27.6 kW |
| Operating weight | 3,494 lb1,585 kg | 3,395 lb1,540 kg | 3,296 lb1,495 kg |
| Weight per hp | 94 lb/hp57 kg/kW | 92 lb/hp56 kg/kW | 89 lb/hp54 kg/kW |
| Displacement | 148.5 ci2.43 L | 111.4 ci1.83 L | 111.4 ci1.83 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | HST Plus (Hydrostatic Transmission) | Hydrostatic | GST |
| Drive | 4WD | 4WD | - |
Calculators
Calculators for the L3560HSTRC
PTO power
About 31 to 33 PTO hp
Estimated from the 37 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 37 hp tractor can run
Maximum size is about a 4.5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
110 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
37 hp is 27.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L3560HSTRC vs. Utility median
Kubota L3560HSTRC compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 37 hp | 55 hp | -33% | 30th |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 3,494 lb | 5,303 lb | -34% | 29th |
| Length | 115 in | 137 in | -16% | 20th |
| Width | 60 in | 66 in | -9% | 37th |
| Height | 98.4 in | 94.1 in | +5% | 62nd |
| 3-Point Hitch Capacity | 2,646 lb | 3,197 lb | -17% | 35th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

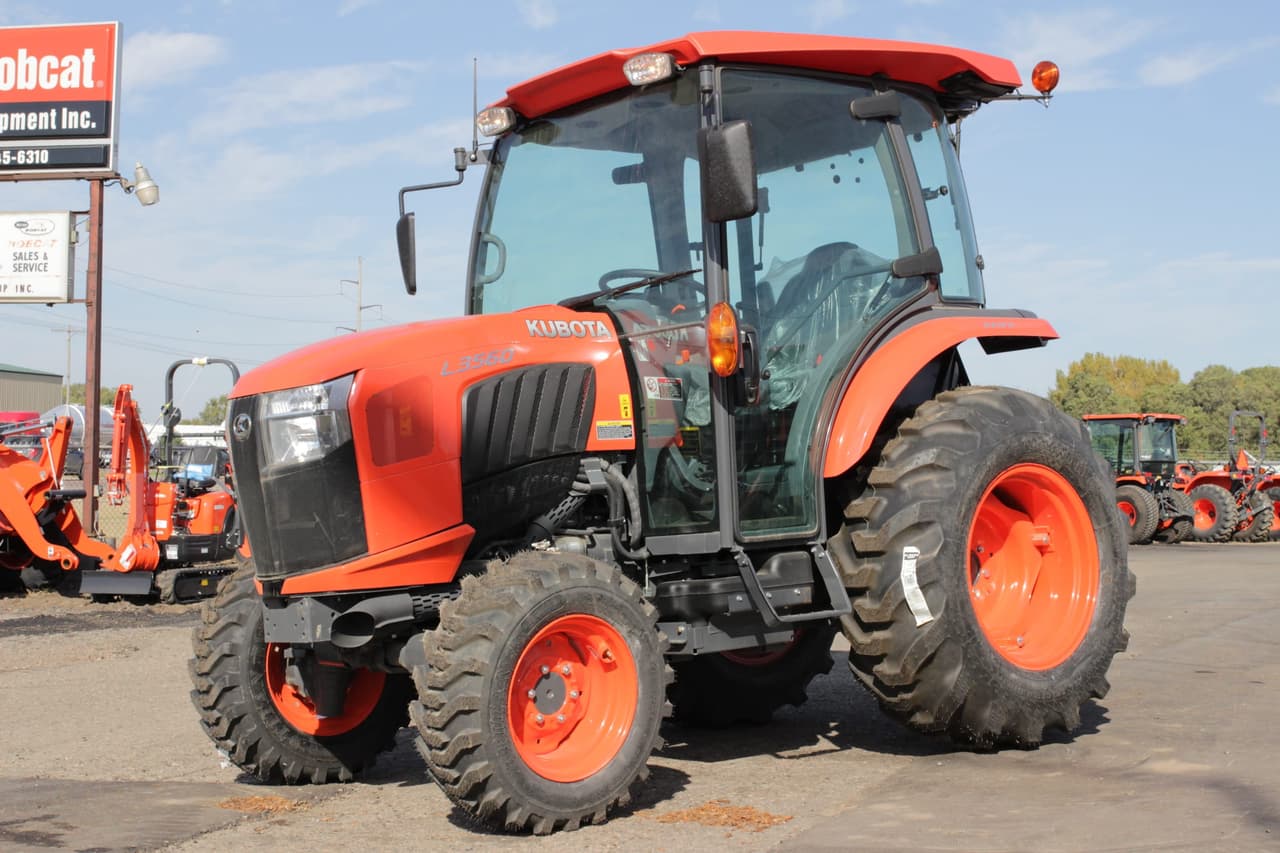

Kubota L3560HSTRC photos
FAQ
Frequently asked questions
What is the engine power output of the Kubota L3560HSTRC?
Rated engine output for the Kubota L3560HSTRC is 37 hp, delivered by a 3-cylinder engine. The engine displaces 148.5 ci.
Which transmission does the Kubota L3560HSTRC use?
The Kubota L3560HSTRC is equipped with a HST Plus (Hydrostatic Transmission) transmission with 6 forward gears.
What hitch category is the Kubota L3560HSTRC?
The Kubota L3560HSTRC uses a Category I hitch with a lift capacity of 2,645.6 lb.
What is the operating weight of the Kubota L3560HSTRC?
The Kubota L3560HSTRC has an operating weight of about 3,494.4 lb.
How do I maintain a Kubota L3560HSTRC?
Routine service for the Kubota L3560HSTRC covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
