Utility tractorsSpec sheet
Kubota L3830GST
The Kubota L3830GST is a versatile utility tractor designed for various farm tasks. It features a powerful 4-wheel drive system and a comfortable power steering setup. The tractor's GST transmission offers 12 forward and 8 reverse gears, giving operators plenty of options for different jobs. Under the hood, this Kubota model boasts a liquid-cooled, 3-cylinder diesel engine with E-TVCS indirect injection. The engine produces 37.4 hp at 2700 rpm, which is average for its class. While its 111.5 ci displacement is below average, the engine's high rpm rating suggests good performance. The L3830GST has a sturdy build, measuring 117.6 inches long, 67.2 inches wide, and 91.2 inches tall. It weighs 3273.9 lb, making it relatively light and easy to maneuver. The tractor's rear three-point hitch is Category I and can lift up to 2755.8 lb, which is above average for similar models.
Key specifications
- Category
- Utility
- Engine power
- 37hp
- Operating weight
- 3,273.9 lb
- Transmission
- GST
Category comparison
L3830GST compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
37.4 hp · 31st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3830GST ranks at the 31st percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3830GST
The Kubota L3830GST is a versatile utility tractor designed for various farm tasks. It features a powerful 4-wheel drive system and a comfortable power steering setup. The tractor's GST transmission offers 12 forward and 8 reverse gears, giving operators plenty of options for different jobs. Under the hood, this Kubota model boasts a liquid-cooled, 3-cylinder diesel engine with E-TVCS indirect injection. The engine produces 37.4 hp at 2700 rpm, which is average for its class. While its 111.5 ci displacement is below average, the engine's high rpm rating suggests good performance. The L3830GST has a sturdy build, measuring 117.6 inches long, 67.2 inches wide, and 91.2 inches tall. It weighs 3273.9 lb, making it relatively light and easy to maneuver. The tractor's rear three-point hitch is Category I and can lift up to 2755.8 lb, which is above average for similar models.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L3830GST |
| Category | Utility tractor |
| Type | 4x4 (4WD) |
| Operating weight | 3,273.9lb(1,485 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | L3830 GST |
| Power | 37.4hp(27.89 kW) |
| Cylinders | 3 |
| Displacement | 111.5ci(1.83 L) |
Transmission
| Type | GST |
|---|---|
| Forward gears | 12 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 (4WD) |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 117.6in(2,987 mm) |
|---|---|
| Width | 67.2in(1,707 mm) |
| Height | 91.2in(2,316 mm) |
| Operating weight | 3,273.9lb(1,485 kg) |
Closest alternatives
L3830GST compared with the nearest models by horsepower
The closest utility models to the Kubota L3830GST by rated horsepower are the Kubota L3800 and the Kubota KL385. The Kubota L3800 matches it on rated power and weighs 790 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Kubota KL385 matches it on rated power and weighs 80 lb more.
| Spec | Kubota L3830GST | Kubota L3800 | Kubota KL385 |
|---|---|---|---|
| Engine power | 37.4 hp27.9 kW | 37.4 hp27.9 kW | 37.4 hp27.9 kW |
| Operating weight | 3,274 lb1,485 kg | 2,480 lb1,125 kg | 3,351 lb1,520 kg |
| Weight per hp | 88 lb/hp53 kg/kW | 66 lb/hp40 kg/kW | 90 lb/hp55 kg/kW |
| Displacement | 111.5 ci1.83 L | 111.4 ci1.83 L | 134.1 ci2.2 L |
| Cylinders | 3 | 3 | 4 |
| Transmission | GST | Constant mesh gear | Manual |
| Drive | 4WD | - | 4WD |
| Years built | - | 2011-2014 | 2008-2009 |
Calculators
Calculators for the L3830GST
PTO power
About 31 to 34 PTO hp
Estimated from the 37.4 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 37.4 hp tractor can run
Maximum size is about a 4.5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
102 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
37.4 hp is 27.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L3830GST vs. Utility median
Kubota L3830GST compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 37.4 hp | 55 hp | -32% | 31st |
| Engine Displacement | 112 ci | 183 ci | -39% | 27th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,274 lb | 5,303 lb | -38% | 26th |
| Length | 118 in | 137 in | -14% | 24th |
| Width | 67.2 in | 66 in | +2% | 54th |
| Height | 91.2 in | 94.1 in | -3% | 43rd |
| 3-Point Hitch Capacity | 2,756 lb | 3,197 lb | -14% | 40th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

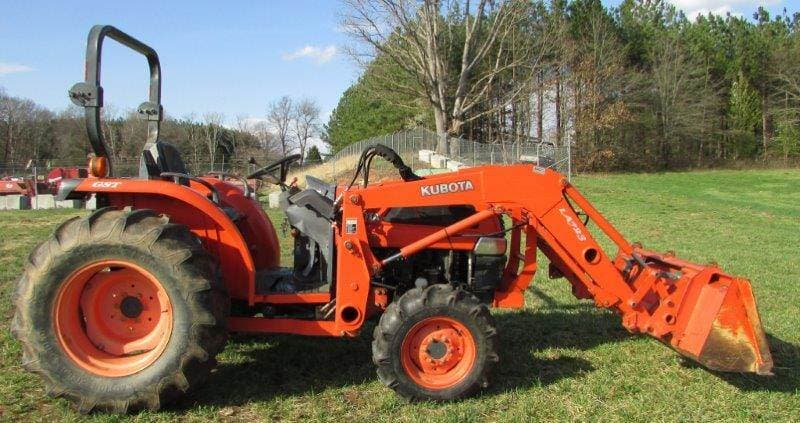

Kubota L3830GST photos
FAQ
Frequently asked questions
What is the engine power output of the Kubota L3830GST?
Rated engine output for the Kubota L3830GST is 37.4 hp, delivered by a 3-cylinder engine. The engine displaces 111.5 ci.
Which transmission does the Kubota L3830GST use?
The Kubota L3830GST is equipped with a GST transmission with 12 forward gears.
What hitch category is the Kubota L3830GST?
The Kubota L3830GST uses a Category I hitch with a lift capacity of 2,755.8 lb.
What is the operating weight of the Kubota L3830GST?
The Kubota L3830GST has an operating weight of about 3,273.9 lb.
How do I maintain a Kubota L3830GST?
Routine service for the Kubota L3830GST covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
