Kubota M105S
The Kubota M105S is a powerful utility tractor built from 2005 to 2007. It has a strong 105 hp engine, which is more powerful than most tractors in its class. The engine is a Kubota V3800-DI-TI, with four cylinders and turbocharging for extra power. It runs on diesel fuel and is cooled by liquid to keep it running smoothly. This tractor is great for many farm jobs. It has a 4-wheel drive system for good traction in tough conditions. The transmission has 32 forward and 32 reverse gears, giving the driver lots of speed choices. The three-point hitch at the back can lift up to 4,630 pounds, which is very high for its size. It also has two PTO speeds (540 and 1000 rpm) for running different tools. The M105S is a mid-sized tractor, measuring about 162 inches long and weighing 6,305 pounds. It has a ROPS (Roll-Over Protective Structure) to keep the driver safe.
ManufacturerKubotaPower105 hpEngine4-cylTransPartial power shift, Partially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 105hp
- Operating Weight
- 6,305 lb
- Transmission
- Partial power shift, Partially synchronized
At a glance
How the M105S compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
105 hp · 85th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The M105S ranks at the 85th percentile for engine power among recorded utility tractors.
Overview
About the Kubota M105S
The Kubota M105S is a powerful utility tractor built from 2005 to 2007. It has a strong 105 hp engine, which is more powerful than most tractors in its class. The engine is a Kubota V3800-DI-TI, with four cylinders and turbocharging for extra power. It runs on diesel fuel and is cooled by liquid to keep it running smoothly. This tractor is great for many farm jobs. It has a 4-wheel drive system for good traction in tough conditions. The transmission has 32 forward and 32 reverse gears, giving the driver lots of speed choices. The three-point hitch at the back can lift up to 4,630 pounds, which is very high for its size. It also has two PTO speeds (540 and 1000 rpm) for running different tools. The M105S is a mid-sized tractor, measuring about 162 inches long and weighing 6,305 pounds. It has a ROPS (Roll-Over Protective Structure) to keep the driver safe.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | M105S |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2005–2007 |
| Operating weight | 6,305lb |
Engine
| Make | Kubota |
|---|---|
| Model | V3800-DI-TI |
| Power | 105hp |
| Cylinders | 4 |
| Displacement | 230ci |
| Bore | 3.94in |
| Stroke | 4.72in |
Transmission
| Type | Partial power shift, Partially synchronized |
|---|---|
| Forward gears | 32 |
| Reverse gears | 32 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 161.8in |
|---|---|
| Width | 78.7in |
| Height | 105.9in |
| Operating weight | 6,305lb |
Head to head
M105S vs. Utility median
How the Kubota M105S compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 55 hp | +91% | 85th |
| Engine Displacement | 230 ci | 183 ci | +26% | 62nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 32 | 12 | +167% | 97th |
| Operating Weight | 6,305 lb | 5,303 lb | +19% | 60th |
| Length | 162 in | 137 in | +18% | 79th |
| Width | 78.7 in | 66 in | +19% | 79th |
| Height | 106 in | 94.1 in | +13% | 79th |
| 3-Point Hitch Capacity | 4,630 lb | 3,197 lb | +45% | 73rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota M10570 | 105 hp | 8,179 lb | — | Compare → |
| Kubota M105SHDC | 105 hp | 7,628 lb | — | Compare → |
| Kubota M6S-111SDSCC | 105 hp | 8,157.2 lb | — | Compare → |
| Kubota M6-101 | 104.5 hp | 9,601 lb | 2015+ | Compare → |
| Kubota M6-101DTCC-F | 104.5 hp | 9,601.2 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1052 | 105 hp | 7,209 lb | — | Compare → |
| Allis Chalmers 7010 | 105.77 hp | 11,260 lb | 1980–1981 | Compare → |
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

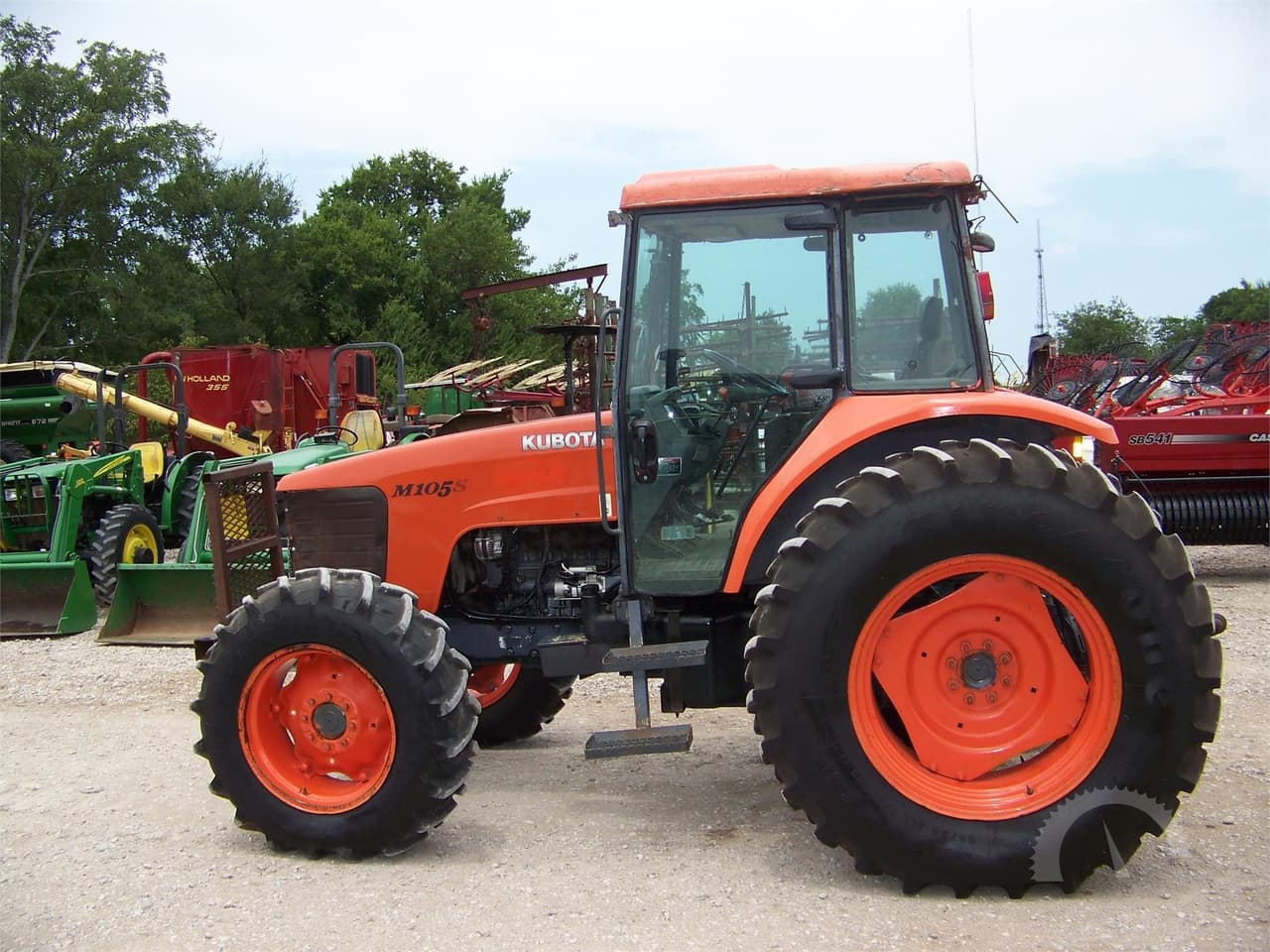

Kubota M105S photos
FAQ
Common questions
When was the Kubota M105S in production?
Kubota M105S production started in 2005 and ended in 2007.
What type of hydraulic system does the Kubota M105S use?
Hydraulics on the Kubota M105S are Open center.
What hitch category is the Kubota M105S?
The Kubota M105S uses a Category II hitch with a lift capacity of 4,630 lb.
How much horsepower does the Kubota M105S have?
The Kubota M105S produces 105 hp from its 4-cylinder engine. Engine displacement is 230 ci.
How much does the Kubota M105S weigh?
The Kubota M105S weighs about 6,305 lb in operating condition.
What transmission is in the Kubota M105S?
Transmission on the Kubota M105S is Partial power shift, Partially synchronized, with 32 forward speeds.
What maintenance does the Kubota M105S require?
Like any tractor, the Kubota M105S needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
