Kubota M8970
The Kubota M8970 is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Kubota. This engine is turbocharged and liquid-cooled, giving it extra power. The M8970 can produce 104.5 horsepower, which is very high for its class. It also has good torque, making it great for pulling heavy loads. This tractor is designed for comfort and ease of use. It has four-wheel drive and hydrostatic power steering, making it easy to control in different conditions. The M8970 is quite big, measuring 160.2 inches long, 80.7 inches wide, and 115 inches tall. It weighs 7,716 pounds, which is above average for utility tractors. The tractor has a Category II hitch at the rear, useful for attaching various farm tools. Kubota is known for making reliable tractors, and the M8970 continues this tradition with its sturdy build and powerful performance.
Key specifications
- Category
- Utility
- Engine power
- 105hp
- Operating weight
- 7,716 lb
Category comparison
M8970 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
104.5 hp · 85th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The M8970 ranks at the 85th percentile for engine power among recorded utility tractors.
Overview
About the Kubota M8970
The Kubota M8970 is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Kubota. This engine is turbocharged and liquid-cooled, giving it extra power. The M8970 can produce 104.5 horsepower, which is very high for its class. It also has good torque, making it great for pulling heavy loads. This tractor is designed for comfort and ease of use. It has four-wheel drive and hydrostatic power steering, making it easy to control in different conditions. The M8970 is quite big, measuring 160.2 inches long, 80.7 inches wide, and 115 inches tall. It weighs 7,716 pounds, which is above average for utility tractors. The tractor has a Category II hitch at the rear, useful for attaching various farm tools. Kubota is known for making reliable tractors, and the M8970 continues this tradition with its sturdy build and powerful performance.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | M8970 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 7,716lb(3,500 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | V4300-T-A |
| Power | 104.5hp(77.93 kW) |
| Cylinders | 4 |
| Displacement | 261.9ci(4.29 L) |
| Bore | 4.3in(109.2 mm) |
| Stroke | 4.5in(114.3 mm) |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 160.2in(4,069 mm) |
|---|---|
| Width | 80.7in(2,050 mm) |
| Height | 115in(2,921 mm) |
| Operating weight | 7,716lb(3,500 kg) |
Capacities
| Cooling system | 3.85gal(14.57 L) |
|---|
Closest alternatives
M8970 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the M8970 are the Kubota M6-101 and the Kubota M6-101DTCC-F. The Kubota M6-101 matches it on rated power and weighs 1,890 lb more, at 92 lb per horsepower against 74 lb. The Kubota M6-101DTCC-F matches it on rated power and weighs 1,890 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the M8970 has the lowest weight per horsepower at 74 lb per hp.
| Spec | Kubota M8970 | Kubota M6-101 | Kubota M6-101DTCC-F |
|---|---|---|---|
| Engine power | 104.5 hp77.9 kW | 104.5 hp77.9 kW | 104.5 hp77.9 kW |
| Operating weight | 7,716 lb3,500 kg | 9,601 lb4,355 kg | 9,601 lb4,355 kg |
| Weight per hp | 74 lb/hp45 kg/kW | 92 lb/hp56 kg/kW | 92 lb/hp56 kg/kW |
| Displacement | 261.9 ci4.29 L | 230 ci3.77 L | 230 ci3.77 L |
| Cylinders | 4 | 4 | 4 |
Calculators
Calculators for the M8970
PTO power
About 87 to 94 PTO hp
Estimated from the 104.5 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 104.5 hp tractor can run
Maximum size is about a 12.5 ft rotary cutter or a 10.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
86 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
104.5 hp is 77.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
M8970 vs. Utility median
Kubota M8970 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 55 hp | +90% | 85th |
| Engine Displacement | 262 ci | 183 ci | +43% | 74th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 7,716 lb | 5,303 lb | +46% | 73rd |
| Length | 160 in | 137 in | +17% | 77th |
| Width | 80.7 in | 66 in | +22% | 83rd |
| Height | 115 in | 94.1 in | +22% | 92nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

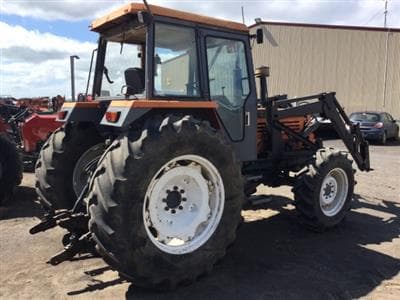

Kubota M8970 photos
FAQ
Frequently asked questions
What is the engine power output of the Kubota M8970?
Rated engine output for the Kubota M8970 is 104.5 hp, delivered by a 4-cylinder engine. The engine displaces 261.9 ci.
What is the operating weight of the Kubota M8970?
The Kubota M8970 has an operating weight of about 7,716 lb.
What three-point hitch category does the Kubota M8970 use?
The Kubota M8970 has a Category II three-point hitch.
How do I maintain a Kubota M8970?
Routine service for the Kubota M8970 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
