UtilityPerformance profile
Lanz Bulldog D9500
The Lanz Bulldog D9500 is a utility tractor with a standard tread design. It's a 2-wheel drive machine with a simple gear transmission, offering 3 forward gears and 1 reverse gear. This tractor is powered by a Lanz-made diesel engine that's liquid-cooled and naturally aspirated. What makes the Bulldog D9500 stand out is its large, single-cylinder engine. At 628.5 cubic inches, it's one of the biggest engines in its class. The engine runs at a slow 630 RPM but still produces a respectable 44.1 horsepower. This tractor is quite heavy, weighing 7,275 pounds, which is above average for its type. It's also equipped with a Category 3 hitch, making it suitable for handling various farm implements. The Bulldog D9500's size is notable too, measuring 135.4 inches long, 71.7 inches wide, and 91.1 inches tall.
ManufacturerLanzPower44.1 hpEngine1-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 44hp
- Operating Weight
- 7,275 lb
- Transmission
- Gear
At a glance
How the Bulldog D9500 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
44.1 hp · 38th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Bulldog D9500 ranks at the 38th percentile for engine power among recorded utility tractors.
Overview
About the Lanz Bulldog D9500
The Lanz Bulldog D9500 is a utility tractor with a standard tread design. It's a 2-wheel drive machine with a simple gear transmission, offering 3 forward gears and 1 reverse gear. This tractor is powered by a Lanz-made diesel engine that's liquid-cooled and naturally aspirated. What makes the Bulldog D9500 stand out is its large, single-cylinder engine. At 628.5 cubic inches, it's one of the biggest engines in its class. The engine runs at a slow 630 RPM but still produces a respectable 44.1 horsepower. This tractor is quite heavy, weighing 7,275 pounds, which is above average for its type. It's also equipped with a Category 3 hitch, making it suitable for handling various farm implements. The Bulldog D9500's size is notable too, measuring 135.4 inches long, 71.7 inches wide, and 91.1 inches tall.
Full specifications
Every recorded spec
General
| Manufacturer | Lanz |
|---|---|
| Model | Bulldog D9500 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,275lb |
Engine
| Make | Lanz |
|---|---|
| Power | 44.1hp |
| Cylinders | 1 |
| Displacement | 628.5ci |
| Bore | 8.86in |
| Stroke | 10.24in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 135.4in |
|---|---|
| Width | 71.7in |
| Height | 91.1in |
| Operating weight | 7,275lb |
Head to head
Bulldog D9500 vs. Utility median
How the Lanz Bulldog D9500 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 44.1 hp | 55 hp | -20% | 38th |
| Engine Displacement | 629 ci | 183 ci | +243% | 95th |
| Cylinders | 1 | 4 | -75% | 1st |
| Forward Gears | 3 | 12 | -75% | 3rd |
| Operating Weight | 7,275 lb | 5,303 lb | +37% | 69th |
| Length | 135 in | 137 in | -1% | 49th |
| Width | 71.7 in | 66 in | +9% | 64th |
| Height | 91.1 in | 94.1 in | -3% | 43rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Lanz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Lanz Bulldog D9506 | 44.1 hp | 8,047 lb | — | Compare → |
| Lanz Bulldog D9511 | 44.1 hp | — | — | Compare → |
| Lanz Bulldog D9531 | 44.1 hp | 8,444 lb | — | Compare → |
| Lanz Bulldog D4016 | 40 hp | — | 1957–1960 | Compare → |
| Lanz Bulldog D5006 | 50 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST45 | 44.2 hp | 4,448 lb | — | Compare → |
| Allis Chalmers 5045 | 44 hp | 3,850 lb | 1981–1983 | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
| Ascot Universal 445 | 45 hp | 4,500 lb | — | Compare → |
Explore
Lanz siblings
Explore
Similar-spec models
Gallery

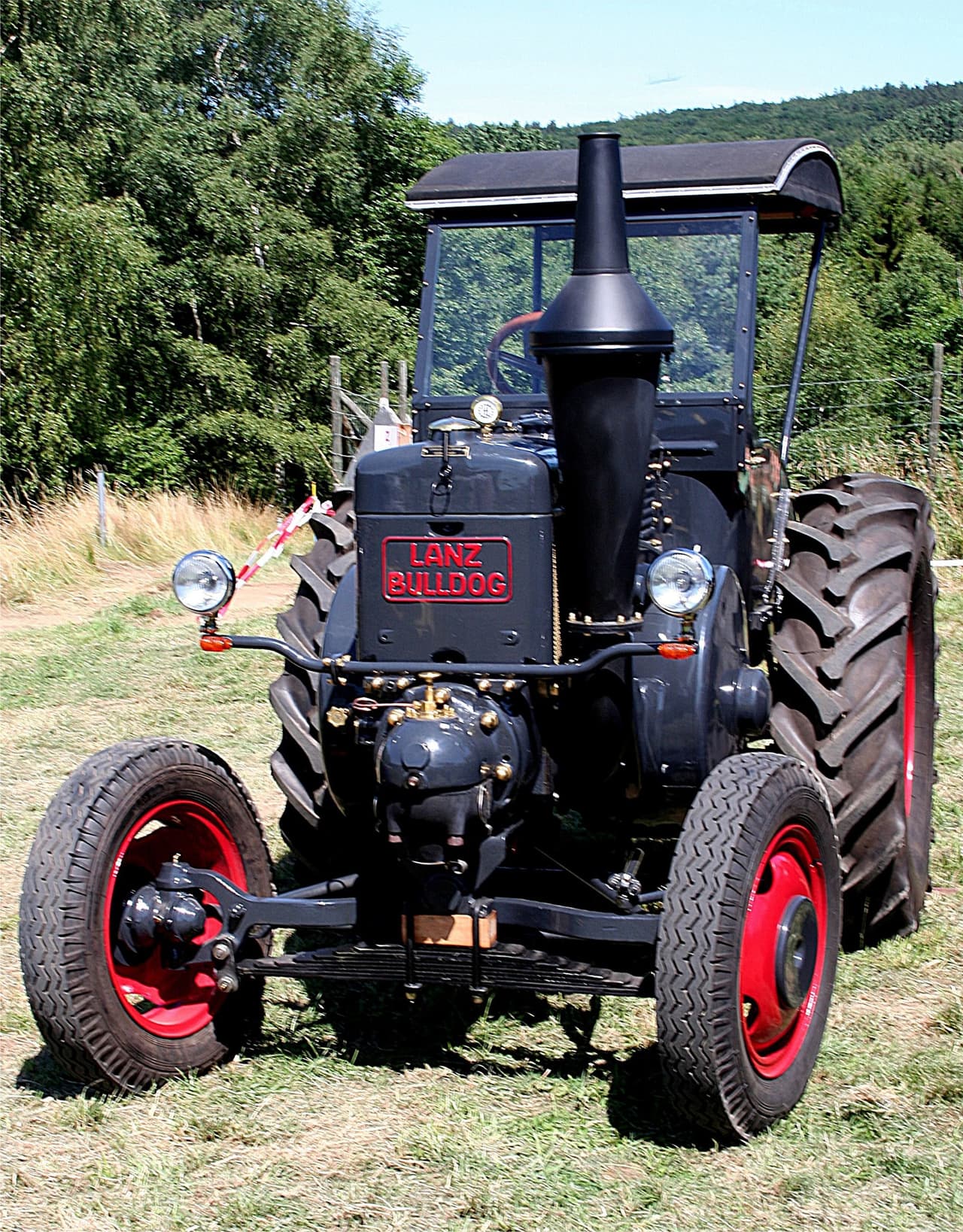

Lanz Bulldog D9500 photos
FAQ
Common questions
How much horsepower does the Lanz Bulldog D9500 have?
The Lanz Bulldog D9500 produces 44.1 hp from its 1-cylinder engine. Engine displacement is 628.5 ci.
How much does the Lanz Bulldog D9500 weigh?
The Lanz Bulldog D9500 weighs about 7,275 lb in operating condition.
What transmission is in the Lanz Bulldog D9500?
Transmission on the Lanz Bulldog D9500 is Gear, with 3 forward speeds.
What three-point hitch category does the Lanz Bulldog D9500 use?
The Lanz Bulldog D9500 has a Category Category 3 three-point hitch.
What maintenance does the Lanz Bulldog D9500 require?
Like any tractor, the Lanz Bulldog D9500 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
