Lanz FHD Felddank
The Lanz FHD Felddank is a classic 2WD tractor with a simple design. It has a 4x2 chassis and manual steering, making it easy to handle in the field. The tractor uses an unsynchronized gear transmission with 3 forward gears and 1 reverse gear, giving farmers basic speed options for different tasks. Under the hood, the Lanz FHD Felddank has a liquid-cooled, 2-cylinder engine made by Lanz. This engine runs on kerosene and is naturally aspirated. It has a displacement of 761.6 cubic inches, which is quite large for a tractor of its time. The engine produces 38 horsepower at 650 RPM, providing good power for farm work. One unique feature is its hot bulb starter, which was common in older tractors. This tractor is built tough, weighing 9,260 pounds. It has steel wheels instead of rubber tires, with large rear wheels measuring 63 inches in diameter and 11.8 inches wide. The front wheels are smaller at 39.4 inches in diameter and 6.3 inches wide. These steel wheels give the Lanz FHD Felddank excellent traction and durability in various field conditions.
ManufacturerLanzPower38 hpEngine2-cylTransUnsynchronized gear
Quick specs
- Category
- Standard Tread
- Engine Power Output
- 38hp
- Operating Weight
- 9,260 lb
- Transmission
- Unsynchronized gear
At a glance
How the FHD Felddank compares
vs. Standard Tread medianDistribution
Engine Power (hp)
Across all Standard Tread tractors
38 hp · 40th
This model
12
Median 45 hp
102
This modelStandard Tread tractorsMediann = 121
The FHD Felddank ranks at the 40th percentile for engine power among recorded standard tread tractors.
Overview
About the Lanz FHD Felddank
The Lanz FHD Felddank is a classic 2WD tractor with a simple design. It has a 4x2 chassis and manual steering, making it easy to handle in the field. The tractor uses an unsynchronized gear transmission with 3 forward gears and 1 reverse gear, giving farmers basic speed options for different tasks. Under the hood, the Lanz FHD Felddank has a liquid-cooled, 2-cylinder engine made by Lanz. This engine runs on kerosene and is naturally aspirated. It has a displacement of 761.6 cubic inches, which is quite large for a tractor of its time. The engine produces 38 horsepower at 650 RPM, providing good power for farm work. One unique feature is its hot bulb starter, which was common in older tractors. This tractor is built tough, weighing 9,260 pounds. It has steel wheels instead of rubber tires, with large rear wheels measuring 63 inches in diameter and 11.8 inches wide. The front wheels are smaller at 39.4 inches in diameter and 6.3 inches wide. These steel wheels give the Lanz FHD Felddank excellent traction and durability in various field conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Lanz |
|---|---|
| Model | FHD Felddank |
| Category | Standard Tread tractor |
| Type | 4x2 |
| Operating weight | 9,260lb |
Engine
| Make | Lanz |
|---|---|
| Power | 38hp |
| Cylinders | 2 |
| Displacement | 761.6ci |
| Bore | 7.48in |
| Stroke | 8.66in |
Transmission
| Type | Unsynchronized gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Operating weight | 9,260lb |
|---|
Head to head
FHD Felddank vs. Standard Tread median
How the Lanz FHD Felddank compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 38 hp | 45 hp | -16% | 40th |
| Engine Displacement | 762 ci | 382 ci | +100% | 86th |
| Cylinders | 2 | 4 | -50% | 23rd |
| Forward Gears | 3 | 4 | -25% | 39th |
| Operating Weight | 9,260 lb | 6,834 lb | +35% | 74th |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 121–367 models).
Compare to tractors with similar specs
Commonly compared Lanz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Lanz Bulldog D8511 | 34.3 hp | — | — | Compare → |
| Lanz Bulldog D8531 | 34.3 hp | — | — | Compare → |
| Lanz Bulldog D9500 | 44.1 hp | 7,275 lb | — | Compare → |
| Lanz Bulldog D9506 | 44.1 hp | 8,047 lb | — | Compare → |
| Lanz Bulldog D9511 | 44.1 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
Explore
Lanz siblings
Explore
Similar-spec models
Gallery

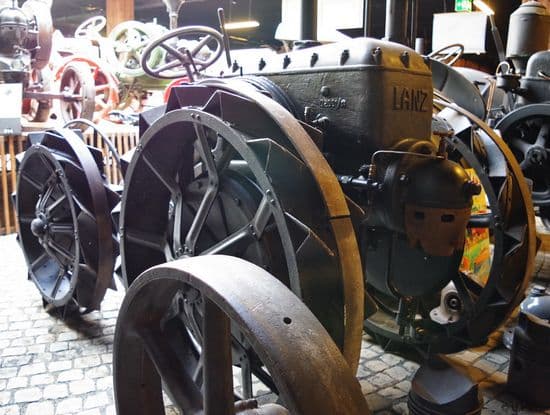

Lanz FHD Felddank photos
FAQ
Common questions
How powerful is the Lanz FHD Felddank?
The Lanz FHD Felddank has an engine power output of 38 hp. It is powered by a 2-cylinder engine displacing 761.6 ci.
What is the working weight of the Lanz FHD Felddank?
The operating weight of the Lanz FHD Felddank is approximately 9,260 lb.
What type of transmission does the Lanz FHD Felddank have?
The Lanz FHD Felddank uses an Unsynchronized gear transmission offering 3 forward gears.
What routine service does the Lanz FHD Felddank need?
Regular maintenance for the Lanz FHD Felddank includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
