Standard TreadPerformance profile
Lanz Bulldog HR2
The Lanz Bulldog HR2 is a classic 2-wheel drive tractor with a simple gear transmission. It has 4 forward and 4 reverse gears, giving farmers good control over their speed. The tractor uses a liquid-cooled engine made by Lanz, which runs on oil fuel. This engine is quite big, with a single cylinder that measures 628.5 cubic inches. What makes this tractor special is its powerful engine. It can produce 28 horsepower at 500 RPM, which is strong for its time. The engine has a large bore of 8.858 inches and a long stroke of 10.24 inches. This Bulldog model also comes with a Category 3 hitch, making it suitable for heavy-duty farm work. While some details about the tractor are unknown, it's clear that the Lanz Bulldog HR2 was built to be a sturdy and reliable workhorse for farmers.
ManufacturerLanzPower28 hpEngine1-cylTransGear
Quick specs
- Category
- Standard Tread
- Engine Power Output
- 28hp
- Transmission
- Gear
At a glance
How the Bulldog HR2 compares
vs. Standard Tread medianDistribution
Engine Power (hp)
Across all Standard Tread tractors
28 hp · 27th
This model
12
Median 45 hp
102
This modelStandard Tread tractorsMediann = 121
The Bulldog HR2 ranks at the 27th percentile for engine power among recorded standard tread tractors.
Overview
About the Lanz Bulldog HR2
The Lanz Bulldog HR2 is a classic 2-wheel drive tractor with a simple gear transmission. It has 4 forward and 4 reverse gears, giving farmers good control over their speed. The tractor uses a liquid-cooled engine made by Lanz, which runs on oil fuel. This engine is quite big, with a single cylinder that measures 628.5 cubic inches. What makes this tractor special is its powerful engine. It can produce 28 horsepower at 500 RPM, which is strong for its time. The engine has a large bore of 8.858 inches and a long stroke of 10.24 inches. This Bulldog model also comes with a Category 3 hitch, making it suitable for heavy-duty farm work. While some details about the tractor are unknown, it's clear that the Lanz Bulldog HR2 was built to be a sturdy and reliable workhorse for farmers.
Full specifications
Every recorded spec
General
| Manufacturer | Lanz |
|---|---|
| Model | Bulldog HR2 |
| Category | Standard Tread tractor |
| Type | 2WD |
Engine
| Make | Lanz |
|---|---|
| Power | 28hp |
| Cylinders | 1 |
| Displacement | 628.5ci |
| Bore | 8.86in |
| Stroke | 10.24in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 2WD |
|---|---|
| Drive | 2WD |
Head to head
Bulldog HR2 vs. Standard Tread median
How the Lanz Bulldog HR2 compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28 hp | 45 hp | -38% | 27th |
| Engine Displacement | 629 ci | 382 ci | +65% | 80th |
| Cylinders | 1 | 4 | -75% | 7th |
| Forward Gears | 4 | 4 | at median | 50th |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 121–367 models).
Compare to tractors with similar specs
Commonly compared Lanz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Lanz Bulldog D2816 | 28 hp | — | — | Compare → |
| Lanz Bulldog HR4 | 28 hp | — | — | Compare → |
| Lanz Bulldog D7500 | 24.5 hp | 4,850 lb | — | Compare → |
| Lanz Bulldog D7506 | 24.5 hp | 4,982 lb | — | Compare → |
| Lanz Bulldog D7507 | 24.5 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
| AGCO ST30x | 28.4 hp | 1,984 lb | — | Compare → |
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Ascot Universal 300 | 27.5 hp | 3,800 lb | — | Compare → |
| Allis Chalmers D10 | 28.57 hp | 2,700 lb | 1959–1967 | Compare → |
Explore
Lanz siblings
Explore
Similar-spec models
Gallery

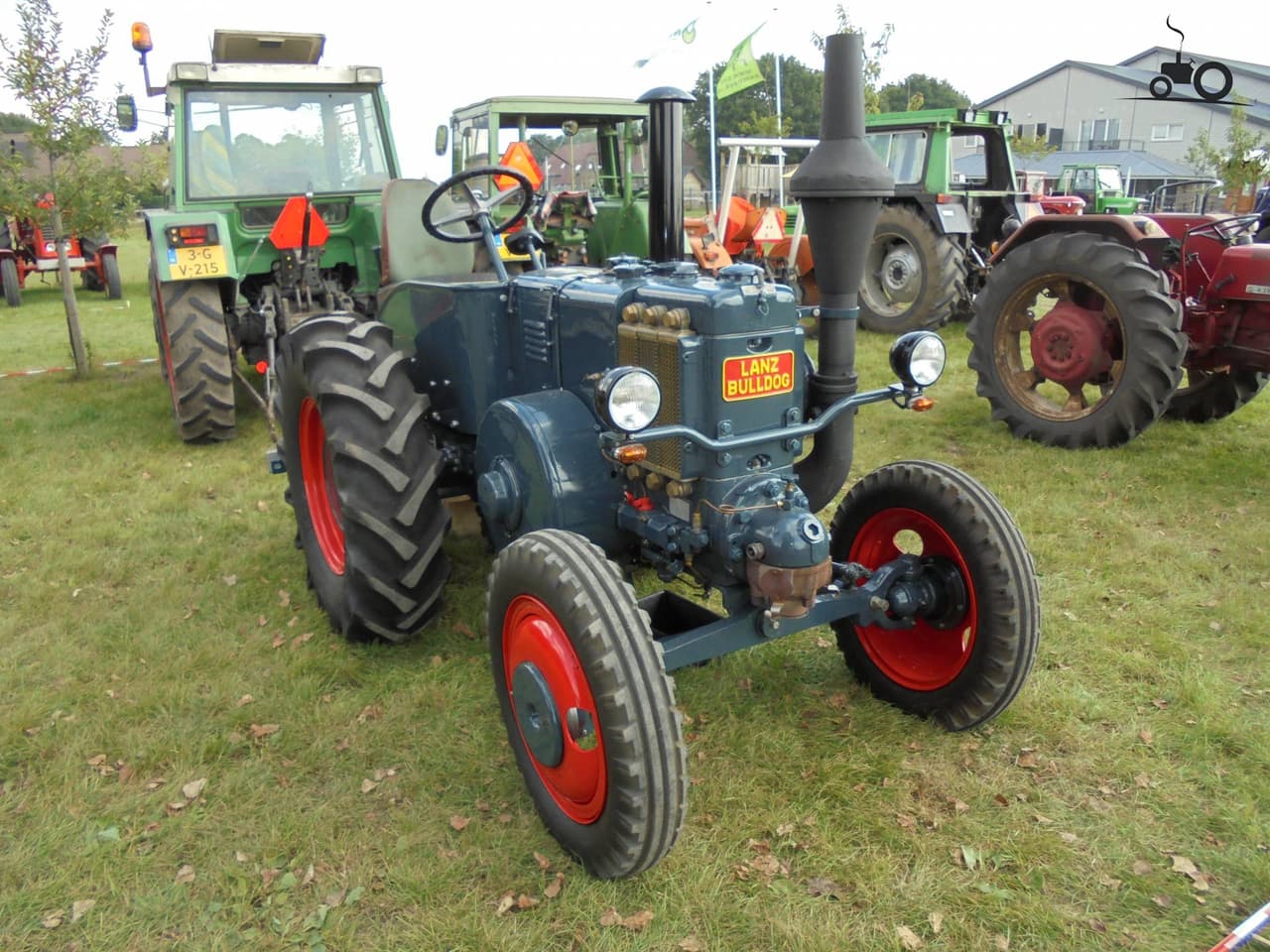

Lanz Bulldog HR2 photos
FAQ
Common questions
How powerful is the Lanz Bulldog HR2?
The Lanz Bulldog HR2 has an engine power output of 28 hp. It is powered by a 1-cylinder engine displacing 628.5 ci.
What type of transmission does the Lanz Bulldog HR2 have?
The Lanz Bulldog HR2 uses a Gear transmission offering 4 forward gears.
What three-point hitch category does the Lanz Bulldog HR2 use?
The Lanz Bulldog HR2 has a Category Category 3 three-point hitch.
What routine service does the Lanz Bulldog HR2 need?
Regular maintenance for the Lanz Bulldog HR2 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
