UtilityPerformance profile
LS G3038
The LS G3038 is a utility tractor built for everyday farm tasks. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor uses a synchro shuttle transmission with 12 forward and 12 reverse gears, giving the driver 24 gears to choose from. Under the hood, the G3038 has a LS L3AL diesel engine with 3 cylinders. The engine is liquid-cooled and puts out 38 hp at 2600 rpm. While its power is below average for tractors, it has a very high rated rpm. The tractor's size is compact, measuring 117.6 inches long, 42.6 inches wide, and 91.2 inches tall. It's quite light, weighing only 2610 lb, which is below average for tractors. The G3038 comes with a Category I hitch and a ROPS (Roll-Over Protective Structure) for safety. It has ag tires in both front and rear, making it suitable for various farm terrains.
ManufacturerLSPower38 hpEngine3-cylTransSynchro shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 38hp
- Operating Weight
- 2,610 lb
- Transmission
- Synchro shuttle
At a glance
How the G3038 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
38 hp · 31st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The G3038 ranks at the 31st percentile for engine power among recorded utility tractors.
Overview
About the LS G3038
The LS G3038 is a utility tractor built for everyday farm tasks. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor uses a synchro shuttle transmission with 12 forward and 12 reverse gears, giving the driver 24 gears to choose from. Under the hood, the G3038 has a LS L3AL diesel engine with 3 cylinders. The engine is liquid-cooled and puts out 38 hp at 2600 rpm. While its power is below average for tractors, it has a very high rated rpm. The tractor's size is compact, measuring 117.6 inches long, 42.6 inches wide, and 91.2 inches tall. It's quite light, weighing only 2610 lb, which is below average for tractors. The G3038 comes with a Category I hitch and a ROPS (Roll-Over Protective Structure) for safety. It has ag tires in both front and rear, making it suitable for various farm terrains.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | G3038 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 2,610lb |
Engine
| Make | LS |
|---|---|
| Model | L3AL |
| Power | 38hp |
| Cylinders | 3 |
| Displacement | 122.2ci |
| Bore | 3.54in |
| Stroke | 4.13in |
Transmission
| Type | Synchro shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Cab | ROPS |
Dimensions
| Length | 117.6in |
|---|---|
| Width | 42.6in |
| Height | 91.2in |
| Operating weight | 2,610lb |
Head to head
G3038 vs. Utility median
How the LS G3038 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 38 hp | 55 hp | -31% | 31st |
| Engine Displacement | 122 ci | 183 ci | -33% | 29th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,610 lb | 5,303 lb | -51% | 18th |
| Length | 118 in | 137 in | -14% | 24th |
| Width | 42.6 in | 66 in | -35% | 6th |
| Height | 91.2 in | 94.1 in | -3% | 43rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared LS tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery

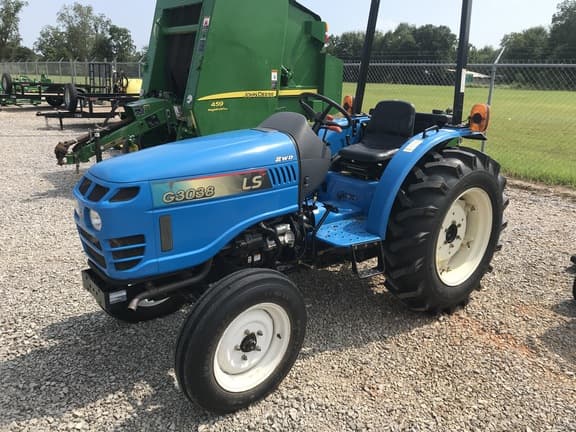

LS G3038 photos
FAQ
Common questions
What is the engine power output of the LS G3038?
Rated engine output for the LS G3038 is 38 hp, delivered by a 3-cylinder engine. The engine displaces 122.2 ci.
Which transmission does the LS G3038 use?
The LS G3038 is equipped with a Synchro shuttle transmission with 12 forward gears.
What is the operating weight of the LS G3038?
In working trim, the LS G3038 comes in at roughly 2,610 lb.
How do I maintain a LS G3038?
Routine service for the LS G3038 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
